NSN 5945-00-858-6688 MDR1411, MDR141-1, MDR6000
Product Details | ROTARY RELAY
5945-00-858-6688 A relay whose contact arm may rotate through 360 degrees but not in one operation. Includes rotary relays which automatically reset. For an item having the dual functions of a switch and a relay assembled together on a common mounting, see RELAY-SWITCH. Excludes SWITCH, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: MDR1411, MDR141-1, MDR6000, 1326587, 1411, 141-1, 231B233CYP5, 5945-00-858-6688, 00-858-6688, 5945008586688, 008586688
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-858-6688 | 03890 ( RELAY, ROTARY ) |

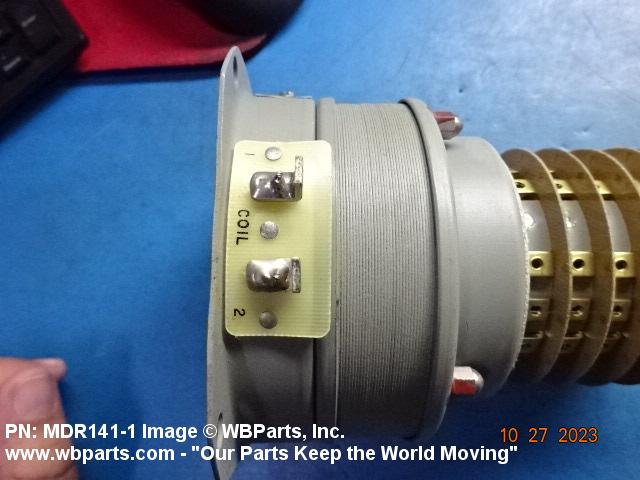

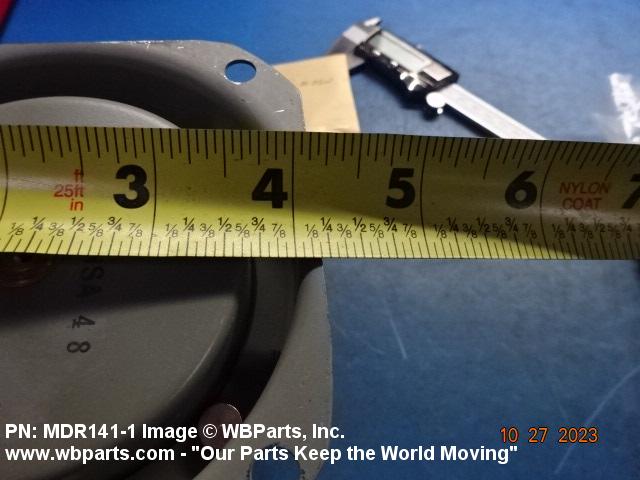

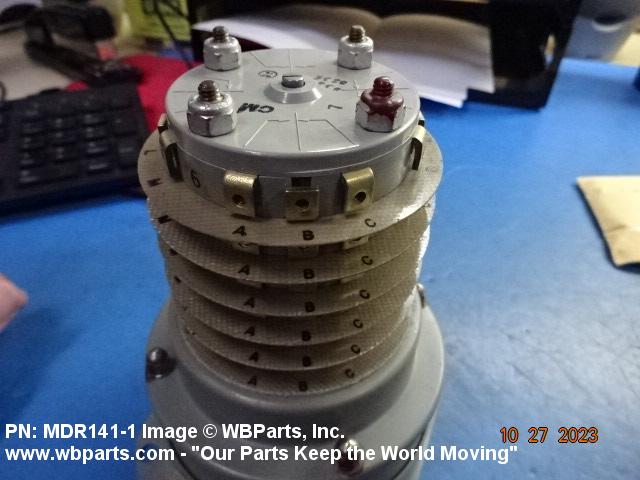

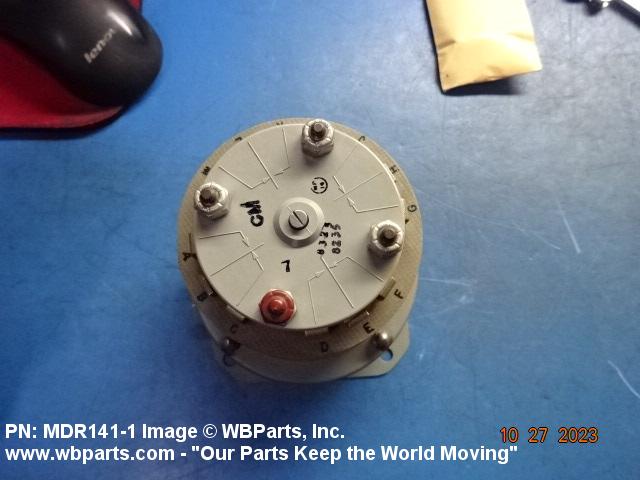

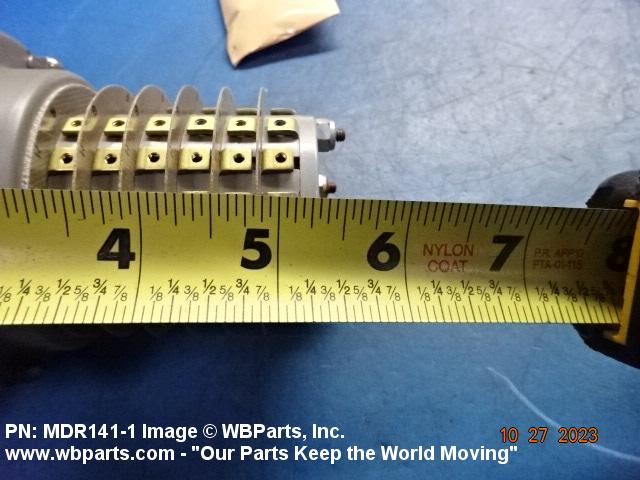

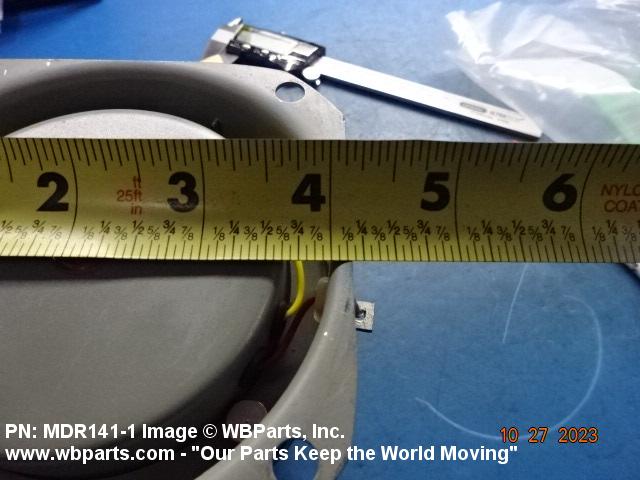

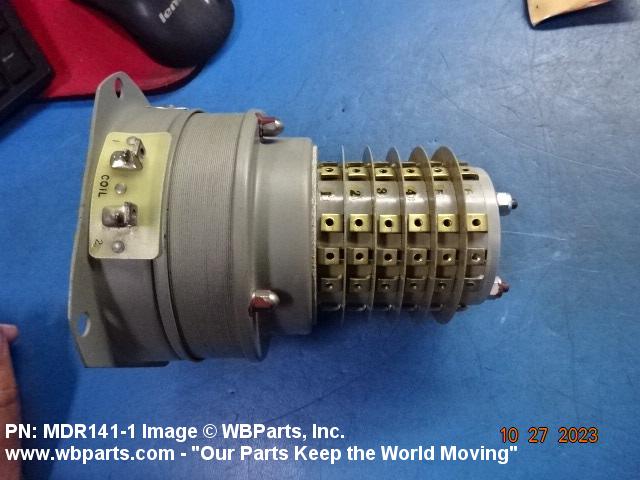

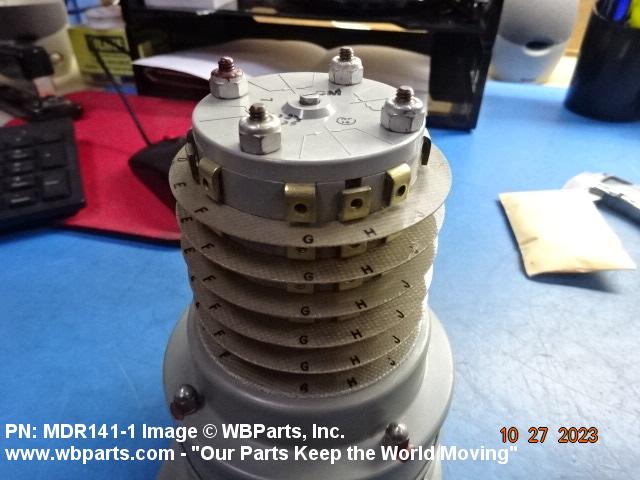

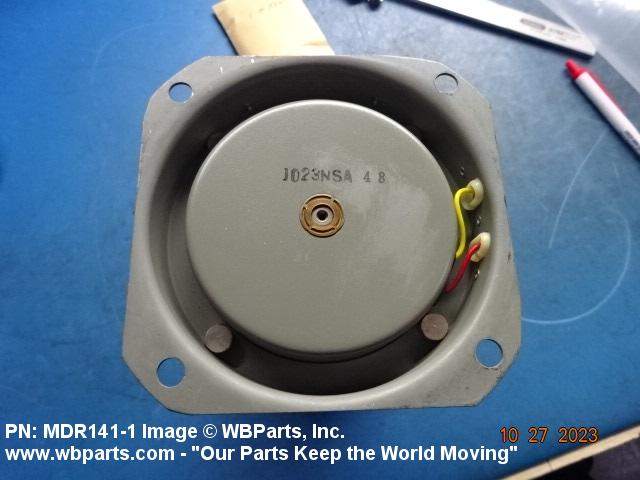

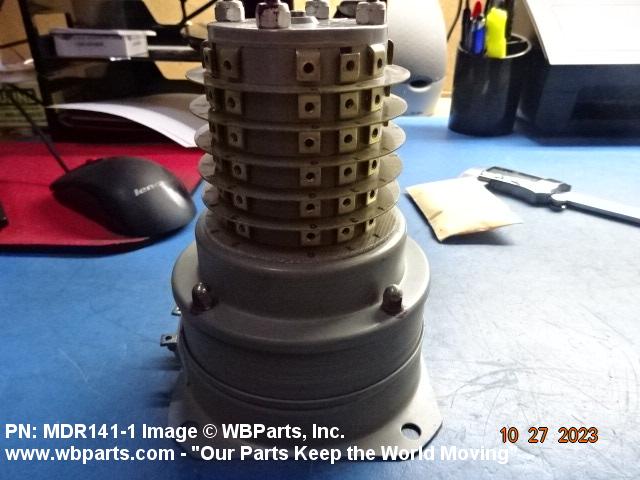

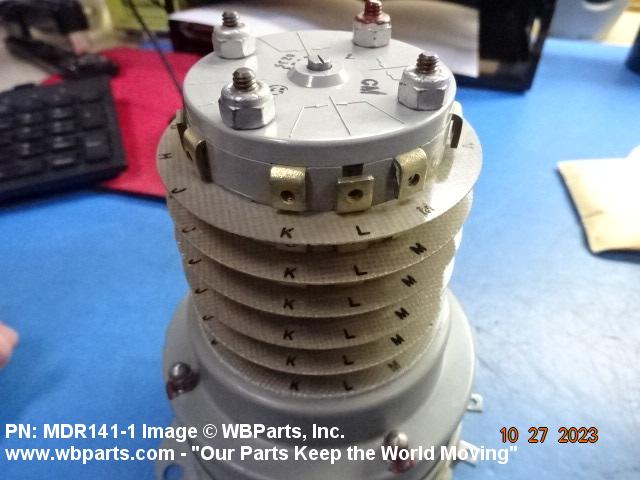

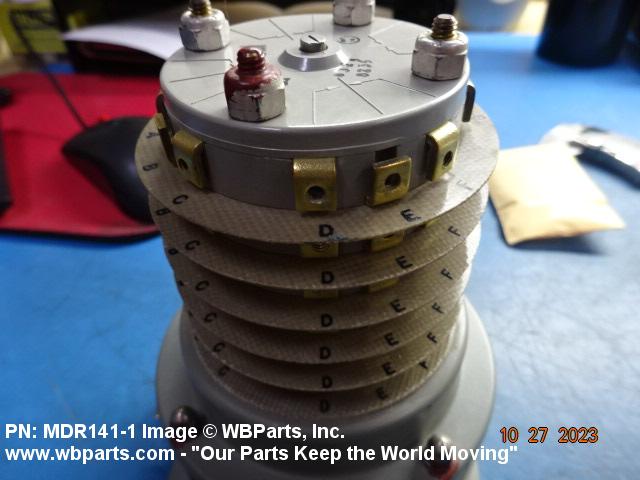

Drawings & Photos | NSN 5945-00-858-6688
Demand History | NSN 5945-00-858-6688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MDR1411 | 2023-10-296 | 4 | United States |
Cross Reference | NSN 5945-00-858-6688
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-858-6688
Technical Data | NSN 5945-00-858-6688
| Characteristic | Specifications |
|---|---|
| STRUCTURAL DESIGN | SECTIONAL |
| SECTION QUANTITY | 6 |
| CONTACT CURRENT TYPE | AC AND DC |
| CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 |
| CONTACT CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.0 MILLIAMPERES NOMINAL |
| CONTACT MAXIMUM RATED CURRENT | 1.5 AMPERES RESISTIVE |
| CONTACT VOLTAGE RATING AT MAXIMUM RATED CURRENT | 28.0 |
| COIL WINDING QUANTITY | 1 |
| AC OPERATING VOLTAGE RATING IN VOLTS | 115.000 NOMINAL |
| OPERATING CURRENT RATING | 0.590 AMPERES NOMINAL |
| PULL-IN CURRENT | 3.0 AMPERES NOMINAL |
| HOLD-IN CURRENT | 590.0 MILLIAMPERES NOMINAL |
| COIL DC RESISTANCE | 8.400 OHMS NOMINAL |
| COIL PULL-IN DC RESISTANCE RATING | 8.400 OHMS NOMINAL |
| COIL HOLD-IN DC RESISTANCE RATING | 8.400 OHMS NOMINAL |
| COIL TERMINAL QUANTITY | 2 |
| CONTACT TERMINAL QUANTITY | 72 |
| SHAFT ROTATION IN DEG | 28.000 |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| RESET FACILITY FEATURE | PROVIDED |
| OVERALL HEIGHT | 4.500 INCHES NOMINAL |
| OVERALL LENGTH | 5.750 INCHES NOMINAL |
| OVERALL WIDTH | 4.250 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 0.281 IN. DIA ON 3.250 IN. BY 3.250 IN. MTG CENTERS |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1326587 |
Restrictions/Controls & Freight Information | NSN 5945-00-858-6688
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-858-6688
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
