NSN 5945-00-752-5599 MS245772A, MS24577-2A, MS24577A
Product Details | THERMAL FLASHER
5945-00-752-5599 An item designed to complete, interrupt or change the connections in one or more electrical lighting circuits in accordance with a predetermined time cycle. It is actuated by the effect of heat generated by current passing through its circuit(s). Excludes CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE, and SWITCH THERMOSTATIC. See also FLASHER, SOLID STATE.
Part Alternates: MS245772A, MS24577-2A, MS24577A, MS24577-A, M8252054, M825205-4, A0095 , BM3085-2.4/1-5, BM30852415, G58253, G5825-3, MILF26301, MIL-F-26301, 3085-2.4/1-5 , 30852415, 3175A, 32414, 3241-4, 6182783, 618278-3, A915, 5945-00-752-5599, 00-752-5599, 5945007525599, 007525599
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-752-5599 | 08410 ( FLASHER, THERMAL ) |

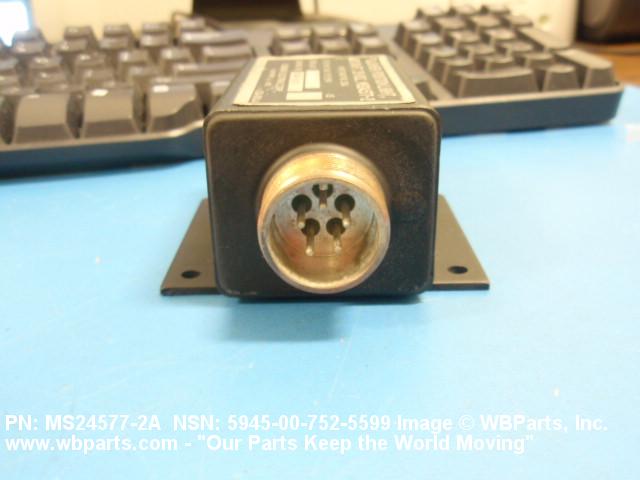

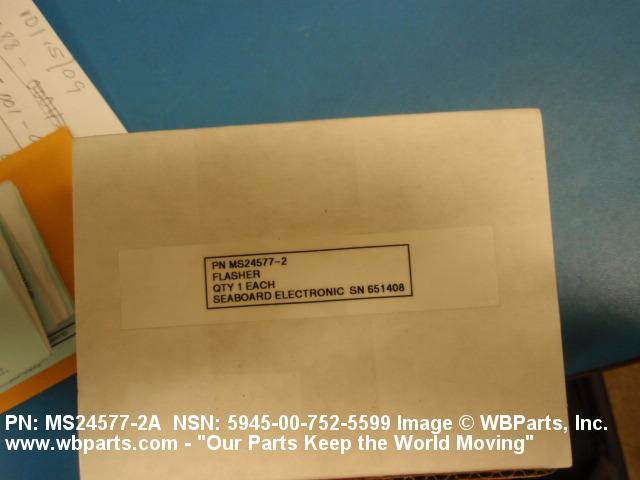

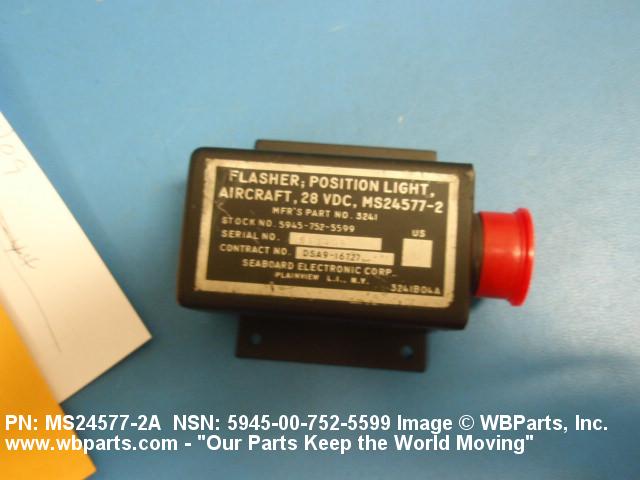

Drawings & Photos | NSN 5945-00-752-5599
Demand History | NSN 5945-00-752-5599
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-752-5599 | 2024-08-221 | 94 | DIBBS |
| 5945-00-752-5599 | 2024-03-67 | 82 | DIBBS |
| MS245772A | 2024-02-58 | 20 | US |
| 5945-00-752-5599 | 2023-09-271 | 64 | DIBBS |
| 5945-00-752-5599 | 2023-05-144 | 3 | Malaysia |
| 5945-00-752-5599 | 2023-04-96 | 37 | DIBBS |
| 5945-00-752-5599 | 2022-08-231 | 17 | Malaysia |
| 5945-00-752-5599 | 2022-08-229 | 17 | Malaysia |
| 5945-00-752-5599 | 2022-02-48 | 59 | DIBBS |
| 5945-00-752-5599 | 2021-09-266 | 34 | DIBBS |
| 32414 | 2020-09-266 | 1 | Malaysia |
| 5945-00-752-5599 | 2020-02-58 | 81 | DIBBS |
| 5945-00-752-5599 | 2020-01-09 | 63 | DIBBS |
| 5945-00-752-5599 | 2019-12-335 | 94 | DIBBS |
| 5945-00-752-5599 | 2019-11-322 | 1 | United States |
| 5945-00-752-5599 | 2019-11-319 | 2 | Philippines |
| 5945-00-752-5599 | 2018-06-176 | 92 | DIBBS |
| 5945-00-752-5599 | 2018-04-103 | 10 | US |
| 5945-00-752-5599 | 2017-07-192 | 160 | US |
| 5945-00-752-5599 | 2016-09-273 | 144 | DIBBS |
| 5945-00-752-5599 | 2016-07-213 | 41 | DIBBS |
| 5945-00-752-5599 | 2016-04-119 | 124 | DIBBS |
| 32414 | 2015-11-306 | 1 | Malaysia |
| 32414 | 2015-11-306 | 1 | Malaysia |
| 5945-00-752-5599 | 2015-05-148 | 31 | DIBBS |
| 3241-4 | 2015-04-103 | 1 | Malaysia |
| 3241-4 | 2015-04-103 | 1 | Malaysia |
| 5945-00-752-5599 | 2014-06-152 | 174 | DIBBS |
| 3241-4 | 2014-04-113 | 1 | US |
| 5945-00-752-5599 | 2014-03-72 | 92 | DIBBS |
| 5945-00-752-5599 | 2014-02-50 | 4 | United States |
| 5945-00-752-5599 | 2013-11-328 | 72 | DIBBS |
| 5945-00-752-5599 | 2013-11-328 | 71 | DIBBS |
| 32414 | 2013-08-231 | 3 | Malaysia |
| MS24577-2A | 2012-11-310 | 8 | |
| MS24577-2A | 2012-11-306 | 1 | China |
| 5945-00-752-5599 | 2012-04-114 | 1 | MANUAL |
| MS24577-2A | 2012-04-110 | 9 | United States |
| 32414 | 2012-03-66 | 5 | Malaysia |
| MS245772A | 2010-09-246 | 1 | Italy |
| MS245772A | 2009-10-301 | 1 | US |
| MS245772A | 2009-10-274 | 1 | Taiwan |
| MS245772A | 2009-02-44 | 3 | us |
| MS245772A | 2009-02-42 | 3 | us |
| 5945-00-752-5599 | 2009-01-29 | 3 | US |
| 32414 | 2008-01-03 | 2 | Malaysia |
| MS245772A | 2007-06-152 | 22 | Israel |
| 5945-00-752-5599 | 2007-05-143 | 62 | DIBBS |
| 5945-00-752-5599 | 2007-04-117 | 215 | DIBBS |
| MS245772A | 2006-05-139 | 1 | us |
Cross Reference | NSN 5945-00-752-5599
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3085-2.4/1-5 | 33871 | BILL MCCLUNG INC DBA ACSI INDUSTRIES |
| 3175A | 09959 | AIRCRAFT INSTRUMENTS COMPANY |
| 3241-4 | 96238 | DNE TECHNOLOGIES, INC. |
| 618278-3 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| A0095 | 0ZTH3 | MORITZ AEROSPACE CORPORATION |
| A0095 | 1MXA1 | RADIANT POWER CORP. |
| A915 | 15420 | LOGITEK INC |
| BM3085-2.4/1-5 | 33871 | BILL MCCLUNG INC DBA ACSI INDUSTRIES |
| G5825-3 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| M825205-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MIL-F-26301 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24577-2A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24577-A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-752-5599
Related Products | NSN 5945-00-752-5599
Technical Data | NSN 5945-00-752-5599
| Characteristic | Specifications |
|---|---|
| ADJUSTABILITY | NONADJUSTABLE |
| FLASHING RATE | 85 PER MINUTE NOMINAL |
| DUTY CYCLE | 2.0 SECONDS ON |
| ACCURACY IN PERCENT | 10.0 |
| FAILURE AUTOMATIC CIRCUIT CONDITION | OFF |
| CONTROLLED CIRCUIT QUANTITY | 1 |
| ACTUATION TYPE | THERMAL |
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| TERMINAL QUANTITY | 1 |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| ENVIRONMENTAL PROTECTION | DUSTPROOF AND WATERTIGHT |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| OVERALL HEIGHT | 2.590 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR 0.175 IN. DIA MFG HOLES SPACED ON 2.000 IN. BY 2.500 IN. MFG CENTERS |
| TEST DATA DOCUMENT | 81349-MIL-F-26301 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-26301 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24577-2A |
Restrictions/Controls & Freight Information | NSN 5945-00-752-5599
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-752-5599
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
