NSN 5945-00-620-0642 A8889, C11215621, C1121562-1
Product Details | ELECTRONIC CHOPPER
5945-00-620-0642 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: A8889, C11215621, C1121562-1, 10127981, 16583911, 1658391-1, 959088, 95908-8, 5945-00-620-0642, 00-620-0642, 5945006200642, 006200642
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-620-0642 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-620-0642
Cross Reference | NSN 5945-00-620-0642
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10127981 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1658391-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 95908-8 | 08664 | BRISTOL BABCOCK INC INSTRUMENTS-SYSTEMS DIV |
| 95908-8 | 55901 | DARE ELECTRONICS, INC. |
| A8889 | 05584 | AUTODYNE MANUFACTURING CO., INC. |
| C1121562-1 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-620-0642
Technical Data | NSN 5945-00-620-0642
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTROMECHANICAL |
| INPUT VOLTAGE RATING | 6.3 AC VOLTS NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | NOT RATED |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | NOT RATED |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT OPERATION SEQUENCE | ANY ACCEPTABLE |
| CONTACT VOLTAGE RATING | 3.0 AC VOLTS NOMINAL |
| CONTACT CURRENT RATING | 2.0 MILLIAMPERES NOMINAL |
| PHASE ANGLE IN DEG | NOT RATED |
| DWELL TIME RATING IN DEG | 15.0 MAXIMUM |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| OPERATING TEMP RANGE | ANY ACCEPTABLE |
| TERMINAL QUANTITY | 7 |
| TERMINAL TYPE | TUBE PLUG |
| OVERALL DIAMETER | 0.845 INCHES NOMINAL |
| OVERALL LENGTH | 2.077 INCHES NOMINAL |
| PLUG IN MOUNTING FEATURE | NOT PROVIDED |
| MOUNTING METHOD | FLANGE AND HOLE |
| MOUNTING PROVISION | HOLES |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY SIZE | 0.141 IN. DIA |
| MOUNTING CONFIGURATION | TWO 0.141 IN. DIA HOLES SPACED 0.875 IN. APART ON FLANGE |

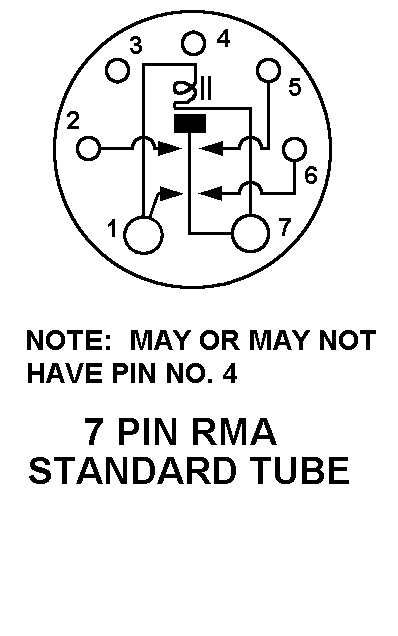

| BASE CONNECTION WIRING STYLE | D11 7 PIN STANDARD TUBE |
