NSN 5945-00-552-7728 HGP2029, HGP-2029, 4810264
Product Details | ELECTRONIC CHOPPER
5945-00-552-7728 An electromechanical or electronic (includes solid state semiconductor items) device designed to convert an electrical signal into a modified square wave output signal. For items excited by an alternating current, the output signal is the same frequency as, and bears a definite phase relationship to, the excitation voltage. For those electronic items designed to operate on direct current only, the output frequency of the item is dependent upon the inherent properties of the item, or the internal or external circuit constants, or the applied driving coil voltage impressed on the input signal. For an electromechanical item whose coil is designed for direct current only, see VIBRATOR, INTERRUPTER and VIBRATOR, SELF-RECTIFYING.20259450020Relays and Solenoids59630018Electronic Modules
Part Alternates: HGP2029, HGP-2029, 4810264, 481026-4, 5945-00-552-7728, 00-552-7728, 5945005527728, 005527728
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-552-7728 | 19759 ( CHOPPER, ELECTRONIC ) |
Drawings & Photos | NSN 5945-00-552-7728
Cross Reference | NSN 5945-00-552-7728
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-00-552-7728
Technical Data | NSN 5945-00-552-7728
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | ELECTROMECHANICAL |
| INPUT VOLTAGE RATING | 1.5 AC MILLIVOLTS NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| DRIVE VOLTAGE RATING | 6.3 AC VOLTS NOMINAL |
| DRIVE CURRENT RELATIONSHIP TO INPUT CURRENT | NOT RATED |
| DRIVE FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| OUTPUT/INPUT VOLTAGE RELATIONSHIP | NOT RATED |
| CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| CONTACT OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| CONTACT VOLTAGE RATING | 500.0 DC VOLTS MAXIMUM |
| CONTACT CURRENT RATING | 5.0 AMPERES NOMINAL |
| PHASE ANGLE IN DEG | 140.0 |
| DWELL TIME RATING IN DEG | 140.0 MINIMUM AND 179.0 MAXIMUM |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| CASE MATERIAL | STEEL |
| OPERATING TEMP RANGE | -37.8 TO 100.0 DEG FAHRENHEIT |
| TERMINAL QUANTITY | 1 |
| TERMINAL TYPE | TUBE PLUG |
| OVERALL DIAMETER | 1.312 INCHES MAXIMUM |
| OVERALL LENGTH | 3.105 INCHES MAXIMUM |
| PLUG IN MOUNTING FEATURE | PROVIDED |
| BASE TYPE | STANDARD BASE |
| BASE MOUNTING SIZE DESIGNATION | 8 PIN |
| TERMINAL PATTERN ARRANGEMENT | 3/4 IN. APPROXIMATE DIA OF TERMINAL CIRCLE |

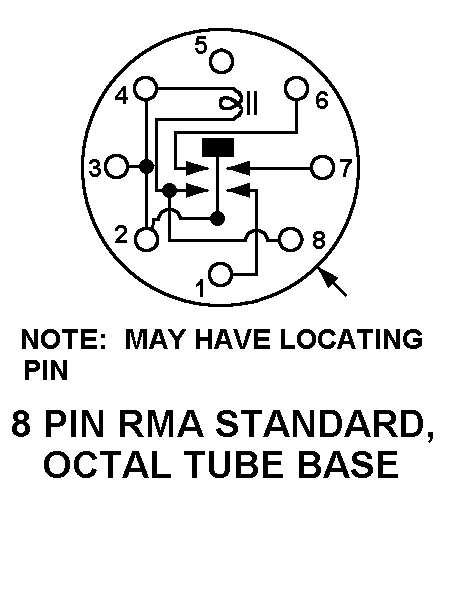

| BASE CONNECTION WIRING STYLE | E9 8 PIN STANDARD OCTAL TUBE |
