NSN 5945-00-454-3273 A41016037800, A410-160378-00, G112102012
Product Details | ELECTROMAGNETIC RELAY
5945-00-454-3273 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.
Part Alternates: A41016037800, A410-160378-00, G112102012, G11-210-2012, 110077D1, 110-077D1, 3346-99011, 93304026, 9330-4026, 5945-00-454-3273, 00-454-3273, 5945004543273, 004543273, 334699011
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 APR 1969 | 00-454-3273 | 32512 ( RELAY, ELECTROMAGNETIC ) |

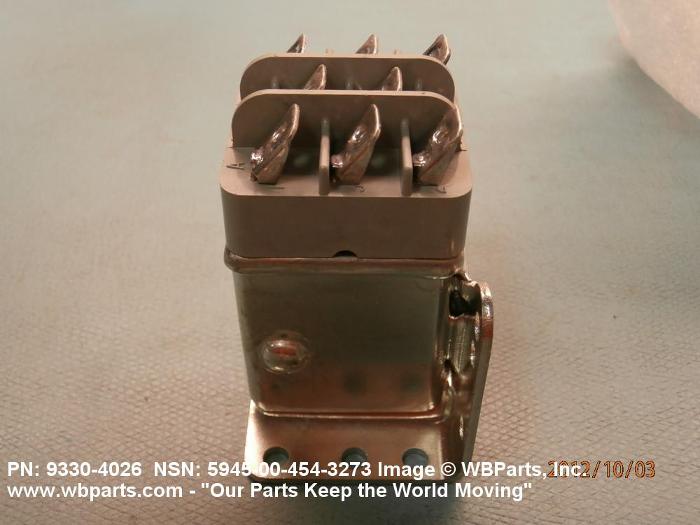

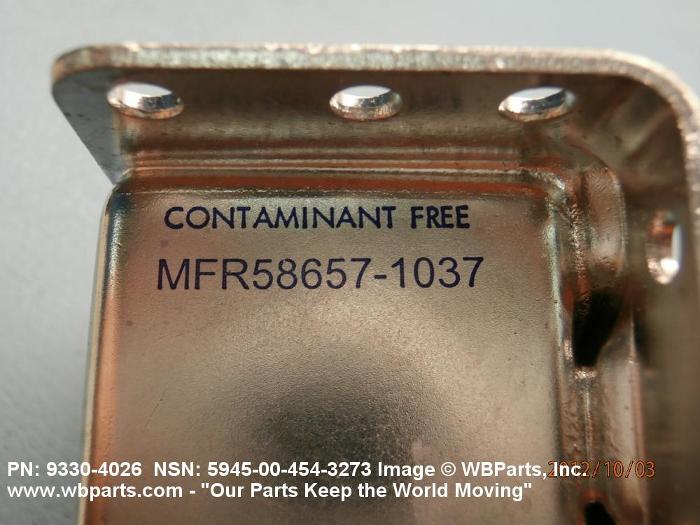

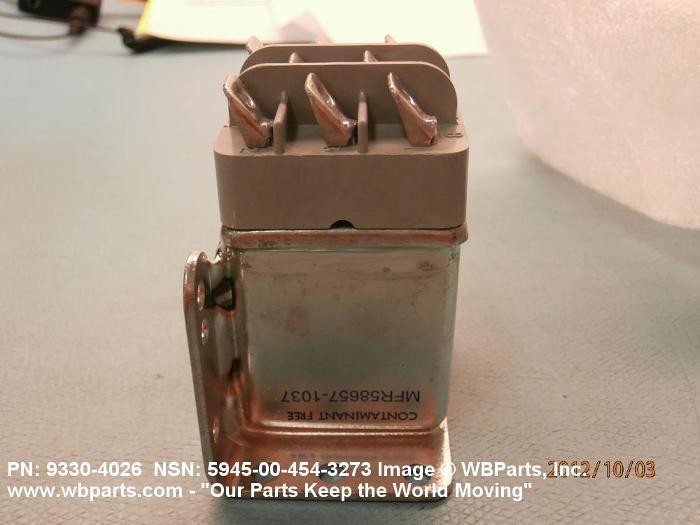

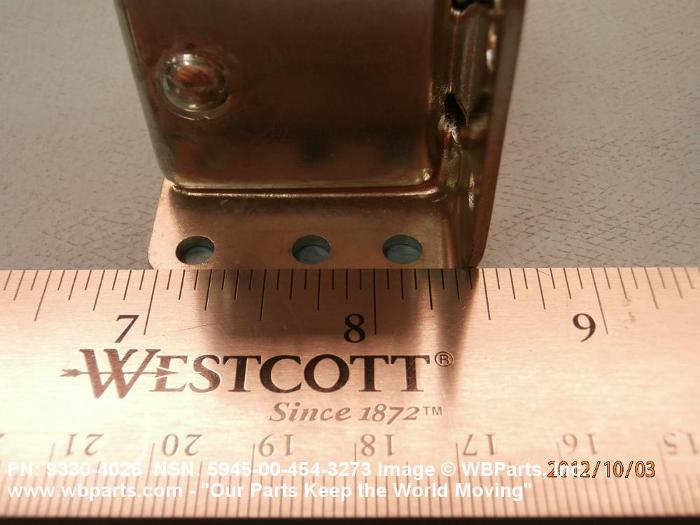

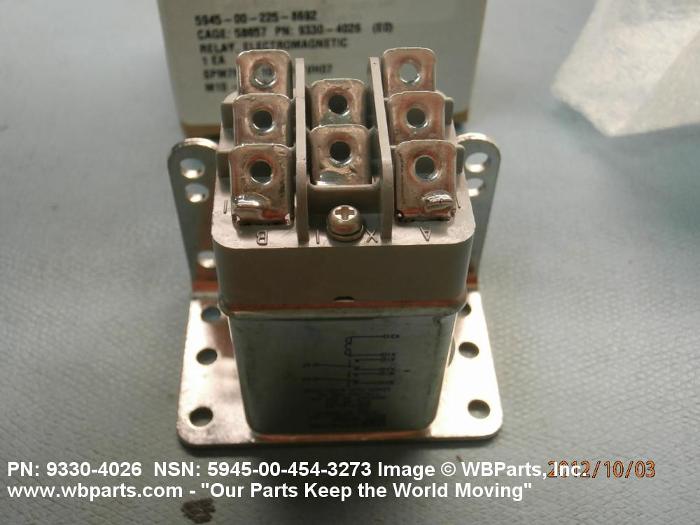

Drawings & Photos | NSN 5945-00-454-3273
Demand History | NSN 5945-00-454-3273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 93304026 | 2021-03-84 | 2 | United States |
| 93304026 | 2019-10-283 | 1 | US |
| 5945-00-454-3273 | 2019-03-73 | 1 | Canada |
| 5945-00-454-3273 | 2018-05-148 | 2 | us |
| 5945-00-454-3273 | 2017-04-115 | 5 | MY |
| 5945-00-454-3273 | 2017-04-115 | 5 | Malaysia |
| 5945-00-454-3273 | 2017-03-88 | 5 | Malaysia |
| 5945-00-454-3273 | 2017-03-82 | 5 | Malaysia |
| 5945-00-454-3273 | 2015-01-06 | 1 | MM |
| 110-077D1 | 2012-11-306 | 5 | China |
| 110077D1 | 2006-06-174 | 2 | PA |
Cross Reference | NSN 5945-00-454-3273
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110-077D1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 3346-99011 | 99699 | DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE |
| 9330-4026 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| A410-160378-00 | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO. |
| G11-210-2012 | 99699 | DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-00-454-3273
Related Products | NSN 5945-00-454-3273
Technical Data | NSN 5945-00-454-3273
| Characteristic | Specifications |
|---|---|

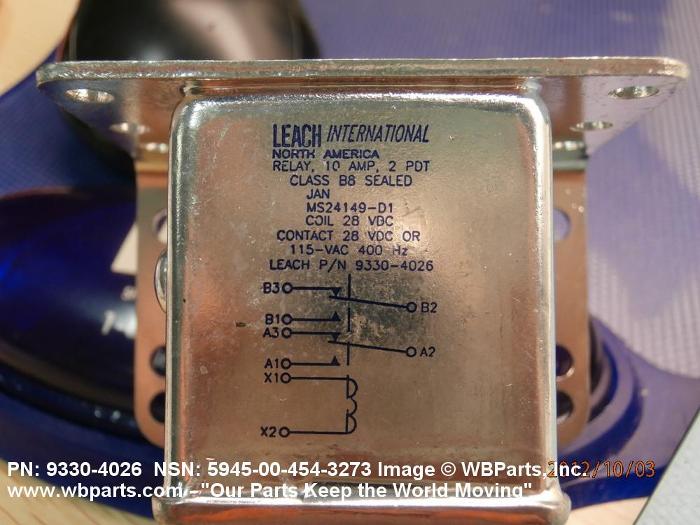

| NONPILE-UP MAIN CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.0 AMPERES DC RESISTIVE LOAD |
| COIL QUANTITY | 1 |
| WINDING QUANTITY | 1 |
| OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP | 28.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING |
| NOMINAL OPERATING CURRENT RATING AND TYPE | 250.0 MILLIAMPERES DC SINGLE WINDING |

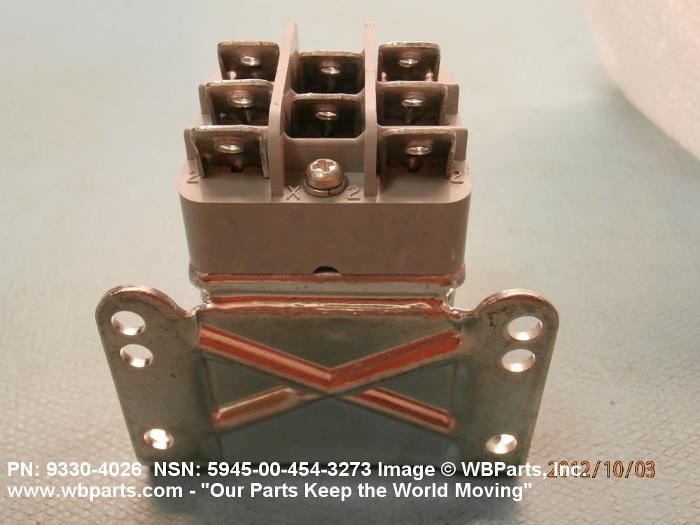

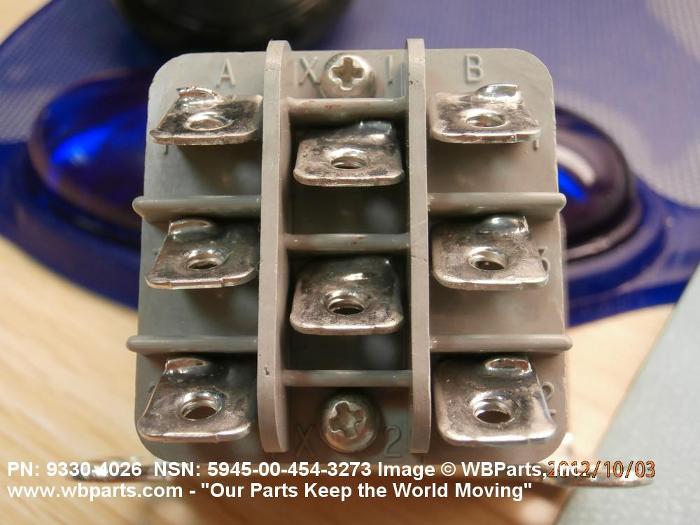

| TERMINAL TYPE AND QUANTITY | 8 PIN ALL FUNCTIONS |
| DUTY TYPE | CONTINUOUS |
| ENVIRONMENTAL PROTECTION | HERMETIC |

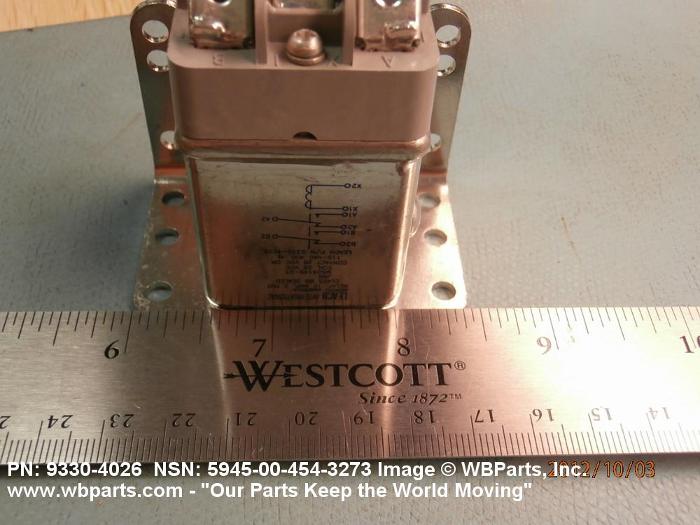

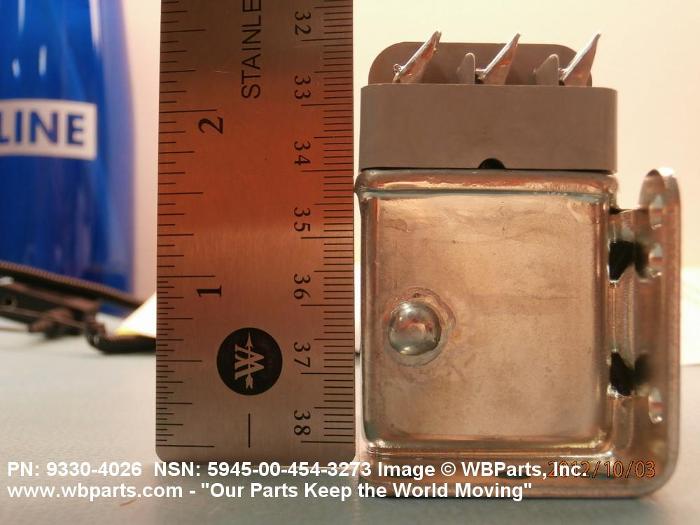

| OVERALL LENGTH | 2.600 INCHES NOMINAL |
