NSN 5940-01-643-6456 733540, 73-3540 , 01-643-6456
Product Details | TERMINAL SHIELD
5940-01-643-6456 A metallic item specifically designed to inclose one or more TERMINAL (1) (as modified) which is not an integral part of the shield. It is designed to be attached to a component at a point where external electrical connections are made, and provides the means for attaching and/or completing the electrostatic shielding of an electrical system. It may have provisions for the passage of wire or cable and may include a cover. Excludes CHAMBER, CABLE TERMINAL; COVER, ELECTRICAL CONNECTOR; COVER, TERMINAL BOARD; SHIELD, ELECTRICAL CONNECTOR; and SHIELD, TERMINAL BOARD.
Part Alternates: 733540, 73-3540 , 5940-01-643-6456, 01-643-6456, 5940016436456, 016436456
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2015098 | 01-643-6456 | 21019 ( SHIELD, TERMINAL ) |

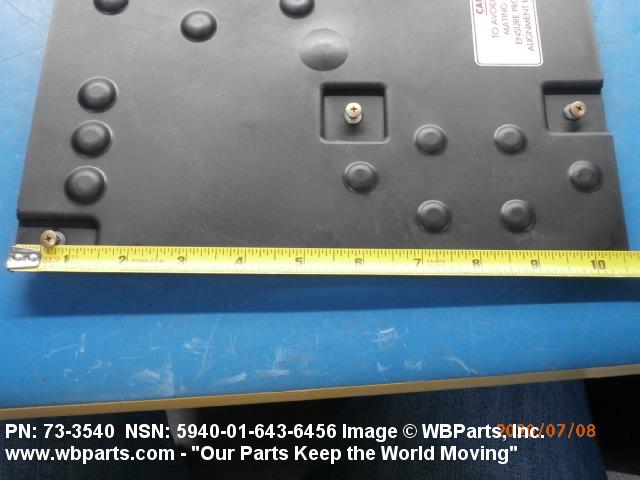

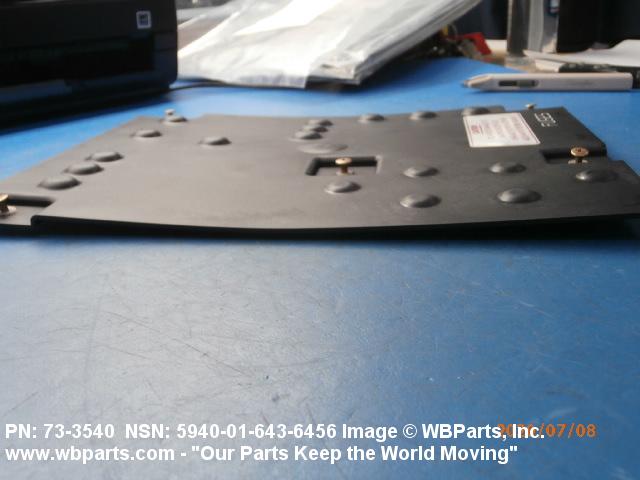

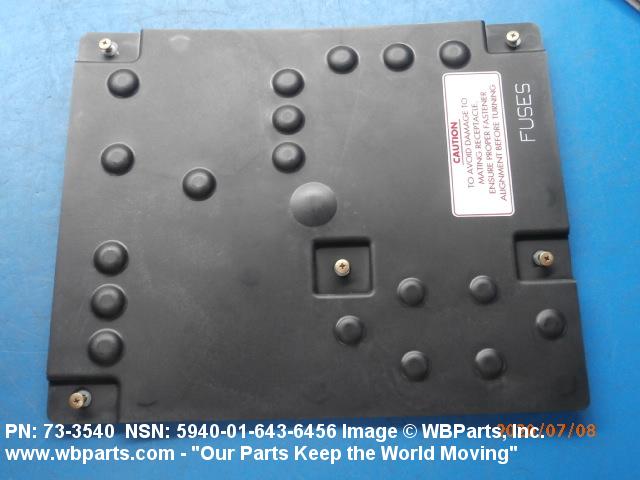

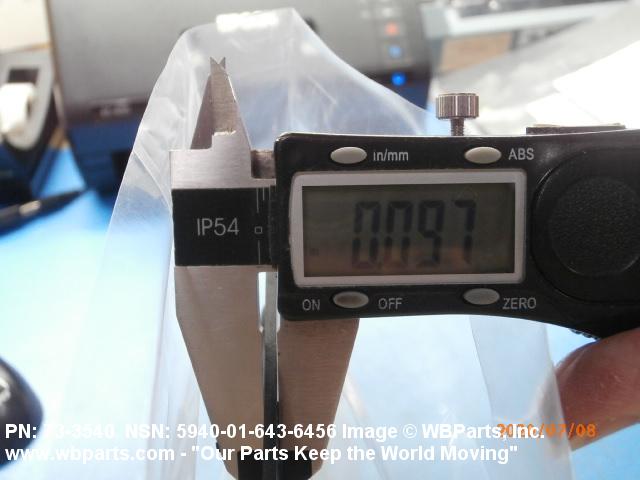

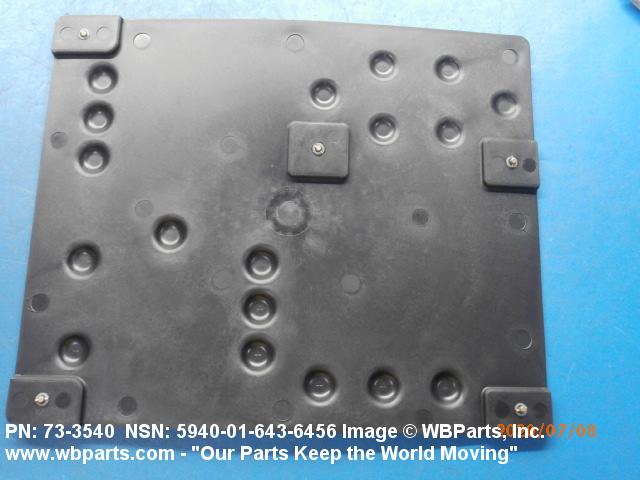

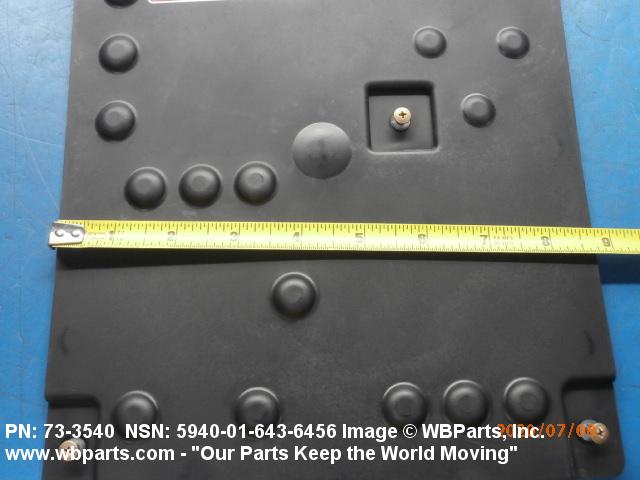

Drawings & Photos | NSN 5940-01-643-6456
Demand History | NSN 5940-01-643-6456
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-643-6456 | 2020-06-17 | 4 | United States |
| 5940-01-643-6456 | 2020-05-14 | 4 | United States |
| 5940-01-643-6456 | 2018-06-13 | 25 | DIBBS |
| 5940-01-643-6456 | 2018-06-05 | 25 | DIBBS |
| 5940-01-643-6456 | 2016-08-31 | 55 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-643-6456
Technical Data | NSN 5940-01-643-6456
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | 1520-01-355-8250 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TERMINAL SHIELD ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5940-01-643-6456
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-643-6456
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
