NSN 5940-01-627-5377 BACT12AR204 , 01-627-5377, 016275377
Product Details | LUG TERMINAL
5940-01-627-5377 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: BACT12AR204 , 5940-01-627-5377, 01-627-5377, 5940016275377, 016275377
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2014107 | 01-627-5377 | 00746 ( TERMINAL, LUG ) |

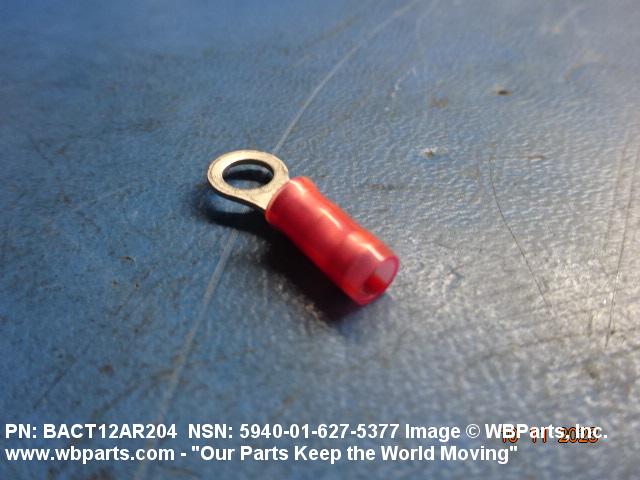

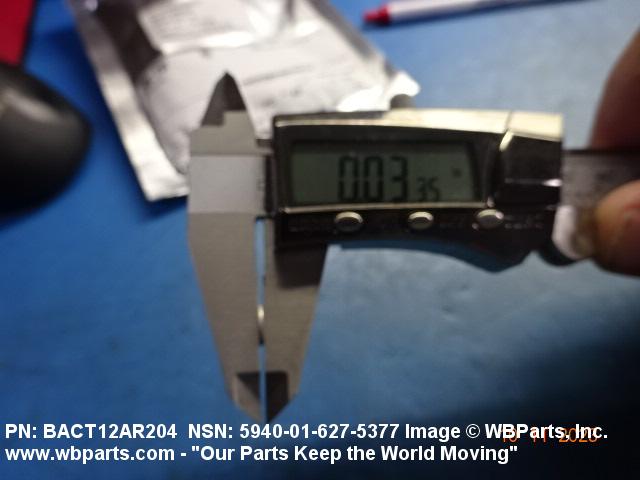

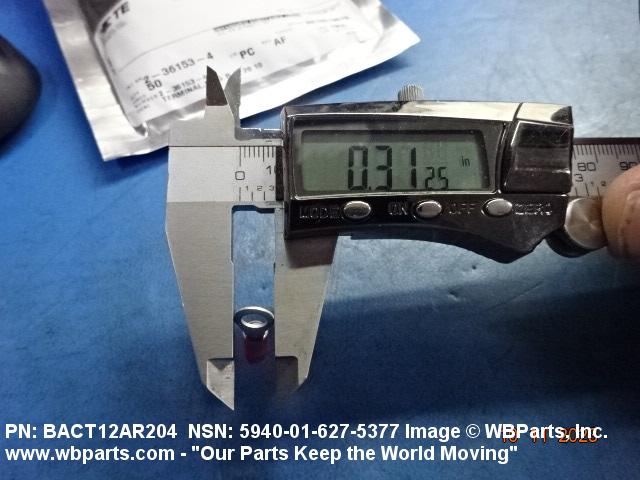

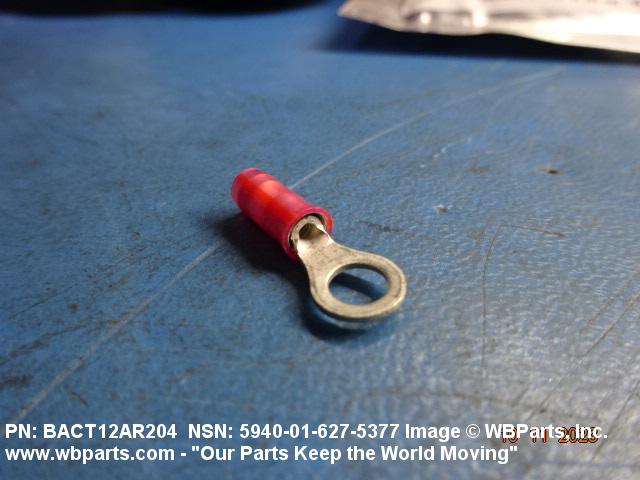

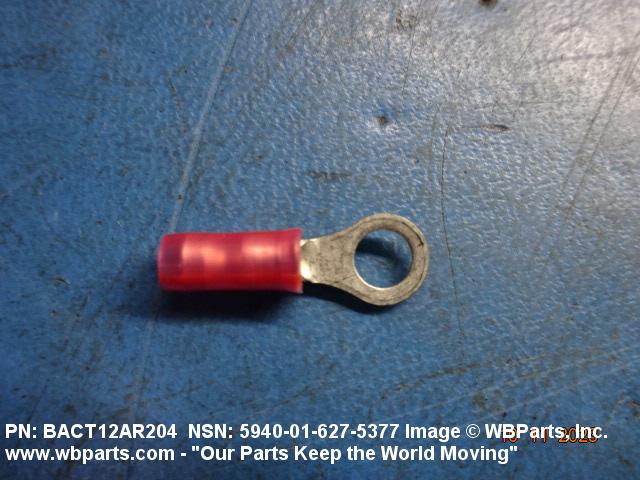

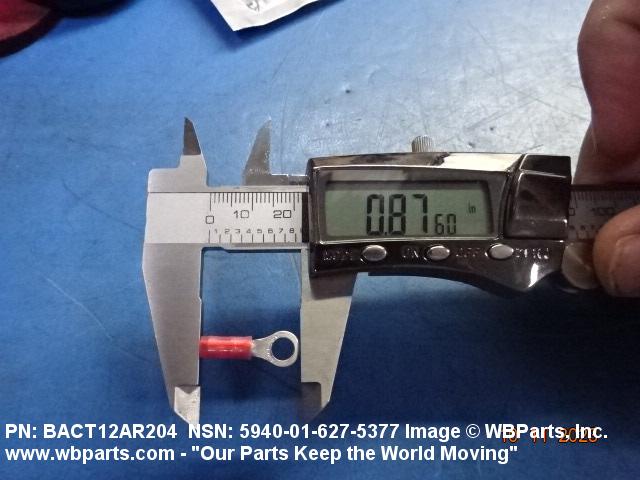

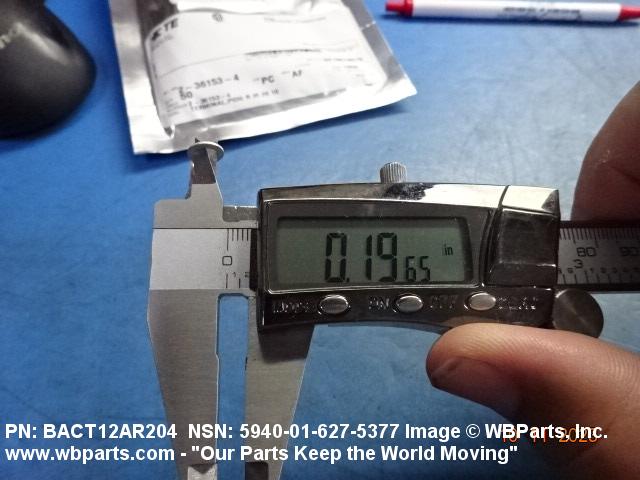

Drawings & Photos | NSN 5940-01-627-5377
Demand History | NSN 5940-01-627-5377
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-627-5377 | 2023-10-278 | 1000 | United States |
| BACT12AR204 | 2020-08-231 | 2 | DIBBS |
| BACT12AR204 | 2020-04-117 | 2 | DIBBS |
| BACT12AR204 | 2018-09-264 | 4 | United States |
Cross Reference | NSN 5940-01-627-5377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACT12AR204 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-627-5377
Technical Data | NSN 5940-01-627-5377
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | CRIMP |
| OVERALL LENGTH | 0.908 INCHES |
| OVERALL WIDTH | 0.250 INCHES |
| MATERIAL THICKNESS | 0.033 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 20 AWG |
| MOUNTING METHOD STYLE | RING |
| MOUNTING HOLE DIAMETER | 0.200 INCHES |
| MOUNTING TONGUE WIDTH | 0.250 INCHES |
| MOUNTING FACILITY THICKNESS | 0.033 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC POLYAMIDE INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-01-627-5377
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
