NSN 5940-01-582-3950 34137, 01-582-3950, 015823950
Product Details | CONDUCTOR SPLICE
5940-01-582-3950 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: 34137, 5940-01-582-3950, 01-582-3950, 5940015823950, 015823950
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 FEB 2010 | 01-582-3950 | 00137 ( SPLICE, CONDUCTOR ) |

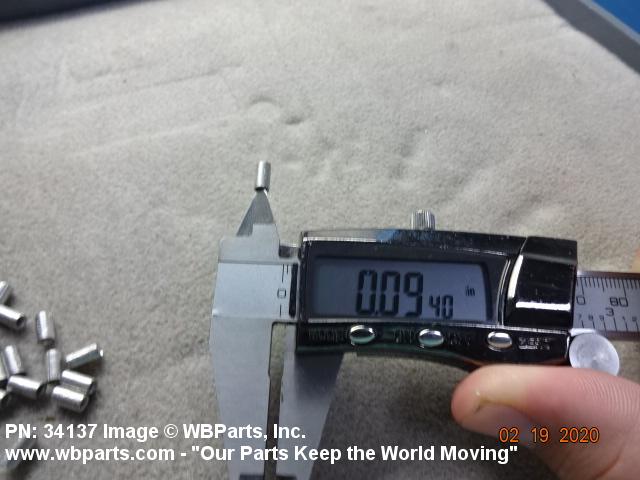

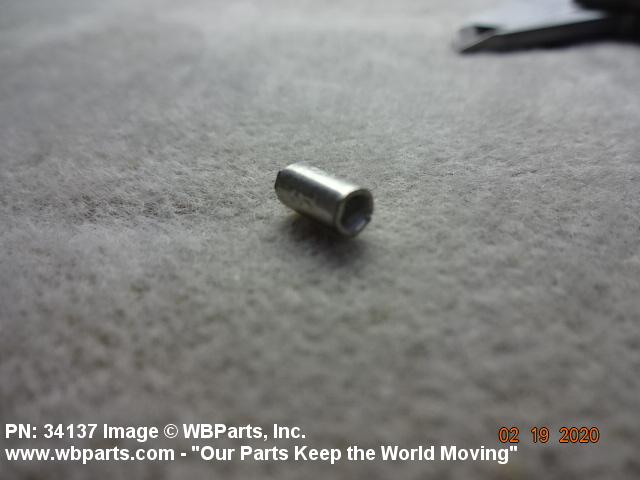

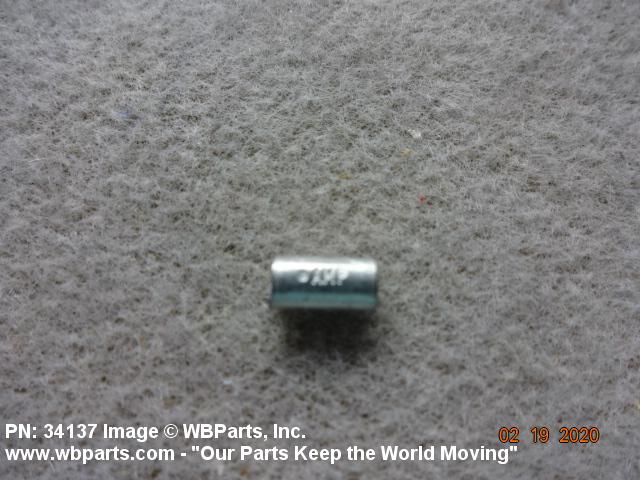

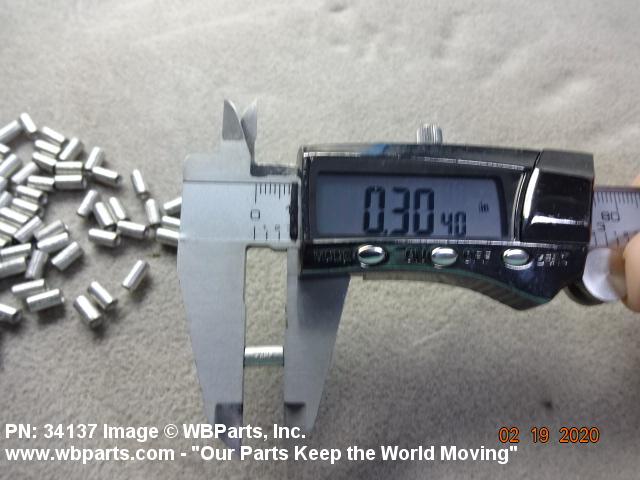

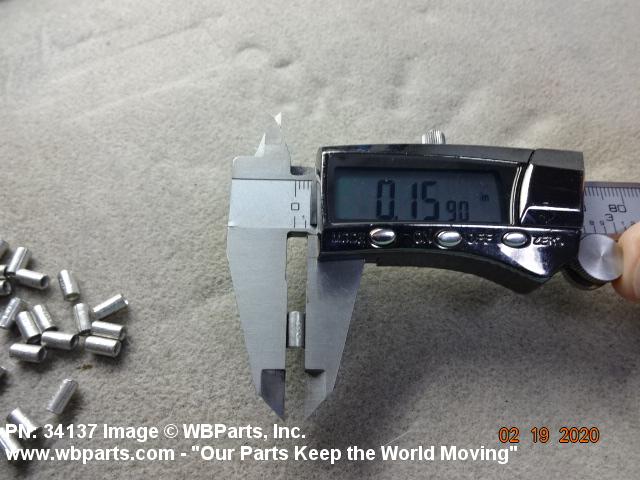

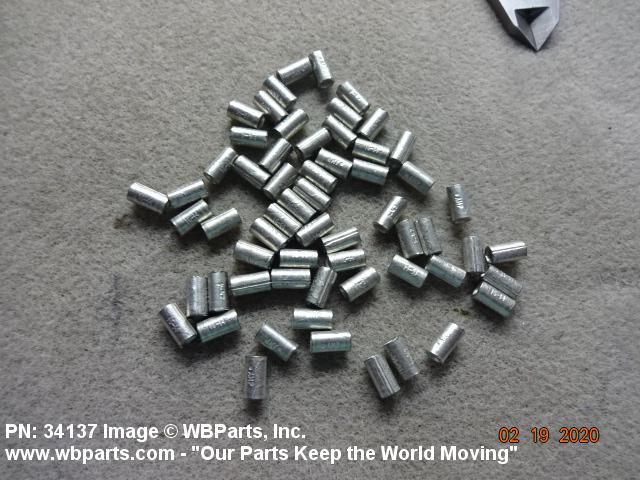

Drawings & Photos | NSN 5940-01-582-3950
Demand History | NSN 5940-01-582-3950
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 34137 | 2024-07-204 | 5 | US |
| 34137 | 2023-08-227 | 40 | United States |
| 34137 | 2020-02-43 | 4 | United States |
| 34137 | 2020-02-35 | 12 | United States |
| 34137 | 2012-02-39 | 5 | United States |
Cross Reference | NSN 5940-01-582-3950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 34137 | 5HA17 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-582-3950
Technical Data | NSN 5940-01-582-3950
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SPLICE, PARELLEL, SOLISTRAND |
| END ITEM IDENTIFICATION | C-101 AIRCRAFT |
| SPECIAL FEATURES | WIRE: 16-14 AWG, SOLID OR STRANDED; MAX OPER TEMP: 170 DEG C |
Restrictions/Controls & Freight Information | NSN 5940-01-582-3950
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
