NSN 5940-01-507-0331 MS25036152, MS25036-152, 01-507-0331
Product Details | LUG TERMINAL
5940-01-507-0331 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS25036152, MS25036-152, 5940-01-507-0331, 01-507-0331, 5940015070331, 015070331
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16-APR-03 | 01-507-0331 | 00746 ( TERMINAL, LUG ) |

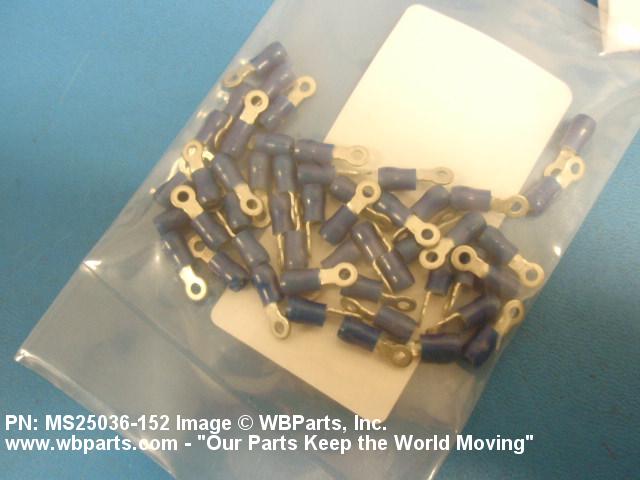

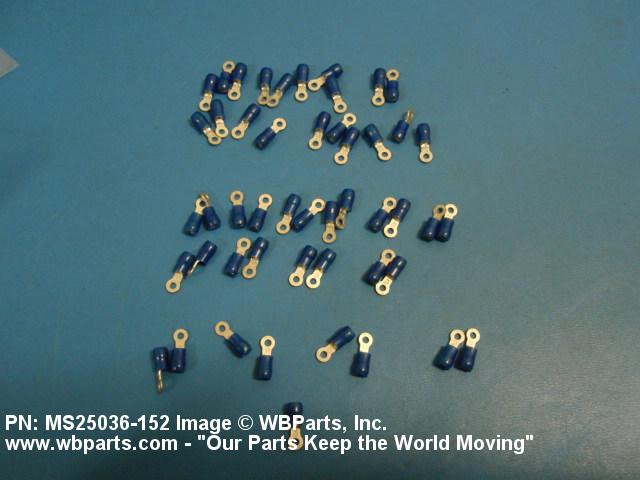

Drawings & Photos | NSN 5940-01-507-0331
Demand History | NSN 5940-01-507-0331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-507-0331 | 2023-07-192 | 50 | US |
| MS25036152 | 2016-12-350 | 50 | Hong Kong |
| MS25036-152 | 2015-06-174 | 3 | Greece |
| MS25036152 | 2012-09-251 | 10 | US |
| MS25036152 | 2010-12-356 | 1 | Italy |
| 5940-01-507-0331 | 2009-12-336 | 5 | United States |
| 5940-01-507-0331 | 2009-11-327 | 5 | United States |
Cross Reference | NSN 5940-01-507-0331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 011-002181-026 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 13207E1943FN44 | 97403 | CECOM LR CENTER |
| 13207E6770FN114 | 97403 | CECOM LR CENTER |
| 13226E0107-10 | 97403 | CECOM LR CENTER |
| 32187 | 00779 | TYCO ELECTRONICS CORPORATION |
| 324159 | 00779 | TYCO ELECTRONICS CORPORATION |
| 32439 | 00779 | TYCO ELECTRONICS CORPORATION |
| 328996 | 00779 | TYCO ELECTRONICS CORPORATION |
| 328996 | F0286 | TYCO ELECTRONICS FRANCE SAS |
| 416-0024-082 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 416-0180-028 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 4188150-224 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 58A8-33 | 04236 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN SPACE SYSTEMS |
| 61304 | 79061 | VACO PRODUCTS CO |
| 670074-8 | 51907 | ANALEX CORP |
| 7-32439 | 00779 | TYCO ELECTRONICS CORPORATION |
| 70937058-001 | 33322 | GETRONICS GOVERNMENT SOLUTIONS LLC |
| 70937058001 | 53178 | BULL HN INFORMATION SYSTEMS INC |
| 91304 | 79061 | VACO PRODUCTS CO |
| A3652-120 | 79963 | ZIERICK MFG CORP |
| AS25036 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACT12AC-52 | 81205 | THE BOEING COMPANY DBA BOEING |
| BB-823-04 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| BB523-04 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| C-01-502 | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| C-01-502M | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| DRY-071219-0006 | D9460 | WAFFENSYSTEMKOMMANDO DER LUFTWAFFE(DATENLIEFERUNG) |
| E59-0001-008 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| GT805G14-04B | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MIL-T-7928 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MNG14-4R/SK | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| MS25036-152 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NR164 | 56501 | THOMAS & BETTS CORPORATION |
| PN14-4R | 06383 | PANDUIT CORP. DBA PANDUIT |
| R2441S | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R2441SN | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R26349 | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R26349N | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R4157F | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| RB1323 | 56501 | THOMAS & BETTS CORPORATION |
| RB14-4 | 56501 | THOMAS & BETTS CORPORATION |
| RTW164 | 56501 | THOMAS & BETTS CORPORATION |
| SAE AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| XR2441S | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| XR2441SN | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| YAES14N52 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-507-0331
Related Products | NSN 5940-01-507-0331
Technical Data | NSN 5940-01-507-0331
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A25 SOLDER/SOLDERLESS |
| OVERALL LENGTH | 0.774 INCHES |
| OVERALL WIDTH | 0.260 INCHES |
| MATERIAL THICKNESS | 0.029 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 10 AWG |
| MOUNTING METHOD STYLE | D14 RING |
| MOUNTING HOLE DIAMETER | 0.173 INCHES |
| MOUNTING TONGUE WIDTH | 0.240 INCHES |
| MOUNTING FACILITY THICKNESS | 0.040 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
| MATERIAL | COPPER ALLOY INSULATION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSULATION SINGLE LAYER |
| III END ITEM IDENTIFICATION | APACHE HELICOPTER |
Restrictions/Controls & Freight Information | NSN 5940-01-507-0331
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
