NSN 5940-01-476-8981 1501000-02, 98-19518-02, 01-476-8981
Product Details | QUICK DISCONNECT TERMINAL
5940-01-476-8981 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 1501000-02, 98-19518-02, 5940-01-476-8981, 01-476-8981, 5940014768981, 150100002, 981951802, 014768981
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUL 2000 | 01-476-8981 | 61180 ( TERMINAL, QUICK DISCONNECT ) |

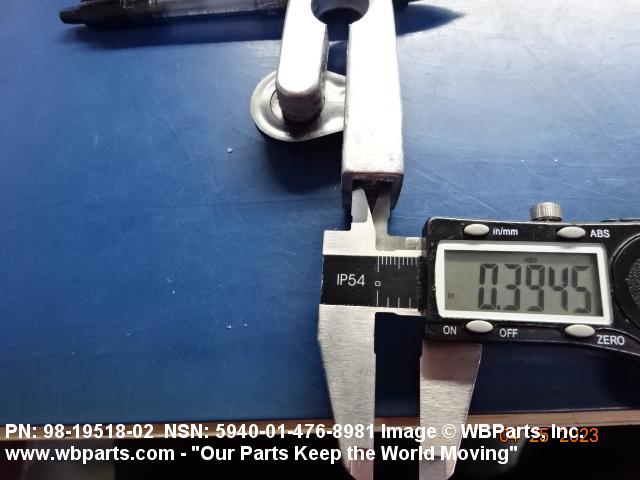

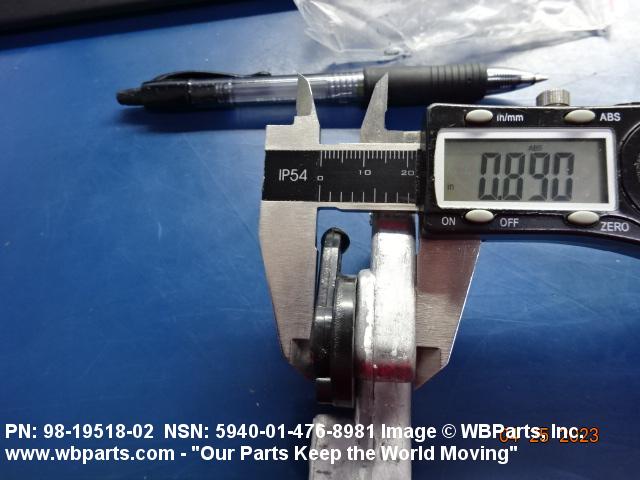

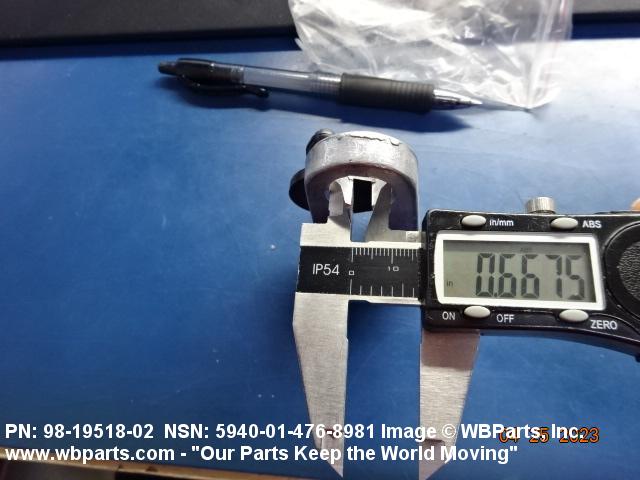

Drawings & Photos | NSN 5940-01-476-8981
Demand History | NSN 5940-01-476-8981
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 981951802 | 2024-08-234 | 1 | us |
| 5940-01-476-8981 | 2023-03-87 | 5 | United States |
| 5940-01-476-8981 | 2022-09-258 | 24 | US |
| 5940-01-476-8981 | 2022-09-258 | 1 | US |
| 5940-01-476-8981 | 2020-11-315 | 1330 | US |
| 5940-01-476-8981 | 2020-01-12 | 1 | DIBBS |
| 5940-01-476-8981 | 2020-01-12 | 4 | DIBBS |
| 5940-01-476-8981 | 2020-01-12 | 17 | DIBBS |
| 5940-01-476-8981 | 2019-11-330 | 1 | US |
| 5940-01-476-8981 | 2019-08-220 | 1 | US |
| 5940-01-476-8981 | 2019-07-198 | 2106 | DIBBS |
| 5940-01-476-8981 | 2019-05-125 | 682 | DIBBS |
| 5940-01-476-8981 | 2019-03-73 | 872 | DIBBS |
| 5940-01-476-8981 | 2019-02-44 | 552 | DIBBS |
| 5940-01-476-8981 | 2018-11-332 | 1 | DIBBS-RFPs |
| 5940-01-476-8981 | 2018-05-134 | 1 | DIBBS-RFPs |
| 5940-01-476-8981 | 2018-03-86 | 1 | United States |
| 5940-01-476-8981 | 2015-10-289 | 2 | US |
| 5940-01-476-8981 | 2014-08-237 | 536 | US |
| 5940-01-476-8981 | 2013-04-120 | 5 | United States |
| 5940-01-476-8981 | 2013-02-43 | 923 | DIBBS |
| 5940-01-476-8981 | 2012-04-96 | 1337 | DIBBS |
| 5940-01-476-8981 | 2011-12-357 | 1235 | DIBBS |
| 5940-01-476-8981 | 2011-09-259 | 1314 | DIBBS |
| 5940-01-476-8981 | 2011-02-39 | 1171 | DIBBS |
| 981951802 | 2010-11-328 | 9850 | US |
| 981951802 | 2010-10-281 | 150 | US |
| 5940-01-476-8981 | 2010-03-64 | 719 | DIBBS |
| 5940-01-476-8981 | 2010-02-36 | 560 | DIBBS |
| 5940-01-476-8981 | 2009-11-314 | 332 | DIBBS |
| 5940-01-476-8981 | 2009-05-125 | 799 | DIBBS |
| 5940-01-476-8981 | 2008-01-08 | 2437 | DIBBS |
| 5940-01-476-8981 | 2007-08-225 | 869 | DIBBS |
| 5940-01-476-8981 | 2007-06-158 | 1067 | DIBBS |
| 5940-01-476-8981 | 2007-03-90 | 148 | DIBBS |
| 5940-01-476-8981 | 2007-02-45 | 454 | DIBBS |
| 5940-01-476-8981 | 2006-03-76 | 381 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-476-8981
Related Products | NSN 5940-01-476-8981
Technical Data | NSN 5940-01-476-8981
| Characteristic | Specifications |
|---|---|
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 2 AWG |
| MATERIAL | LEAD OVERALL |
| SPECIAL FEATURES | NYLON CAM LOCK, COLOR BLACK TO INDICATE NEGATIVE |
| III END ITEM IDENTIFICATION | EI: 6115-01-285-3012, P/N: MEP831A, 3 KW GEN SET |
Restrictions/Controls & Freight Information | NSN 5940-01-476-8981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-476-8981
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
