NSN 5940-01-475-7974 M55155/12XH07, M5515512XH07, A-A-59126/12
Product Details | STUD TERMINAL
5940-01-475-7974 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: M55155/12XH07, M5515512XH07, A-A-59126/12, A-A-59126/1207, AA5912612, AA591261207, MIL-T-55155/12, MILT5515512, 5940-01-475-7974, 01-475-7974, 5940014757974, 014757974
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 2000 | 01-475-7974 | 00887 ( TERMINAL, STUD ) |

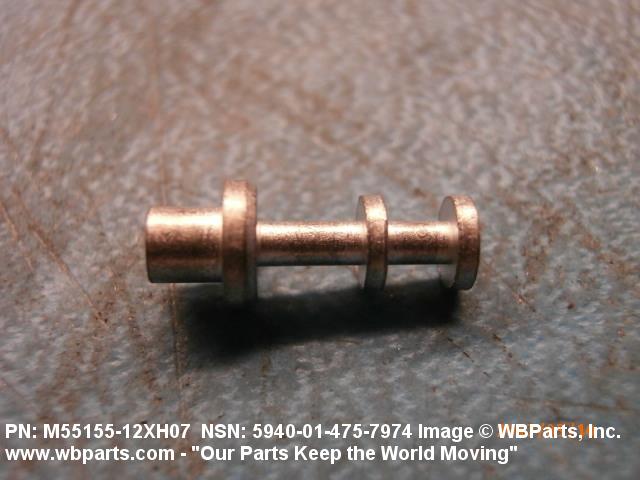

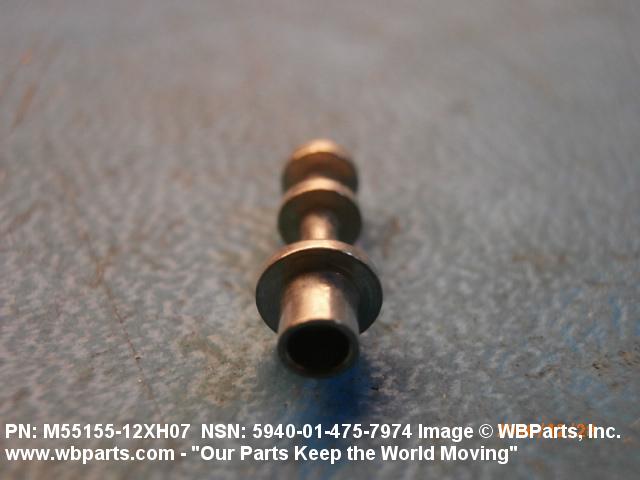

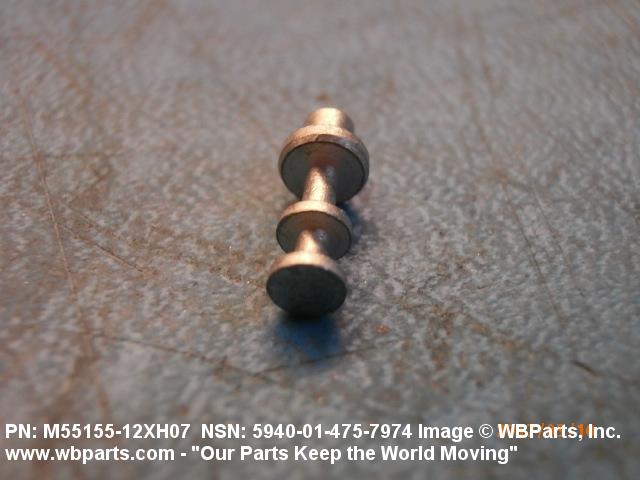

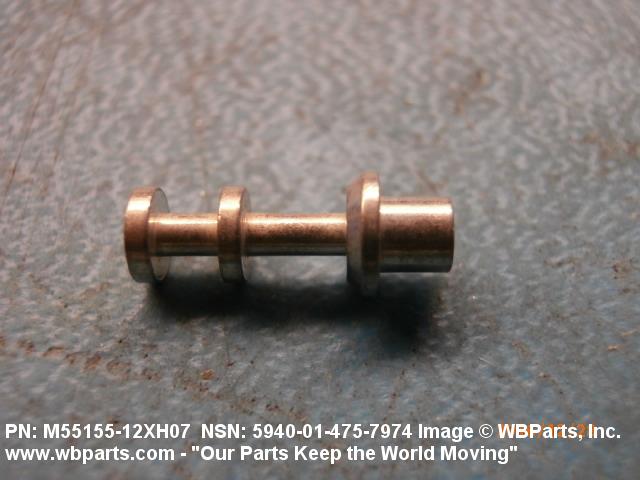

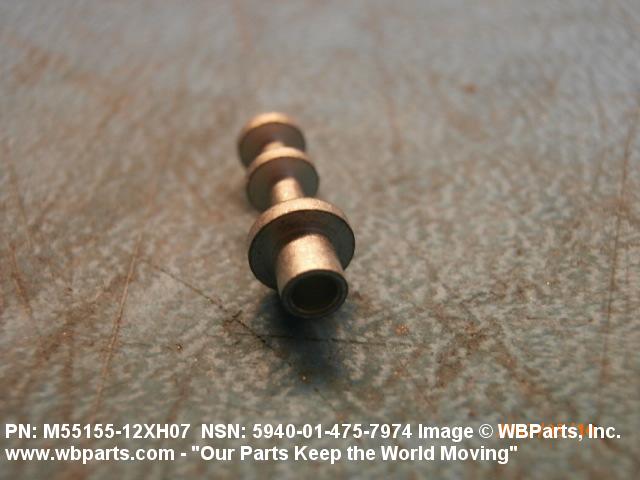

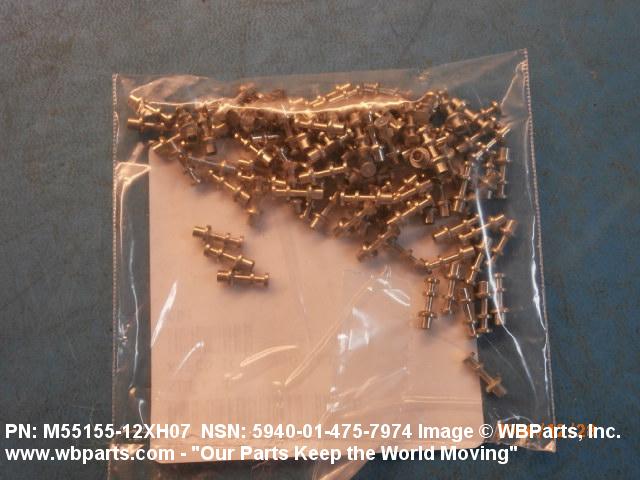

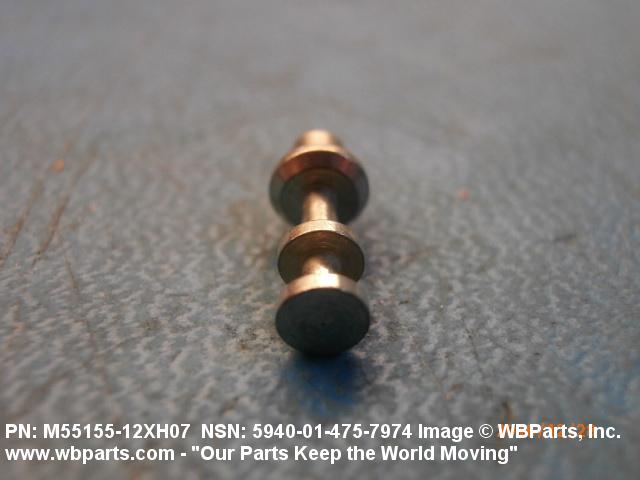

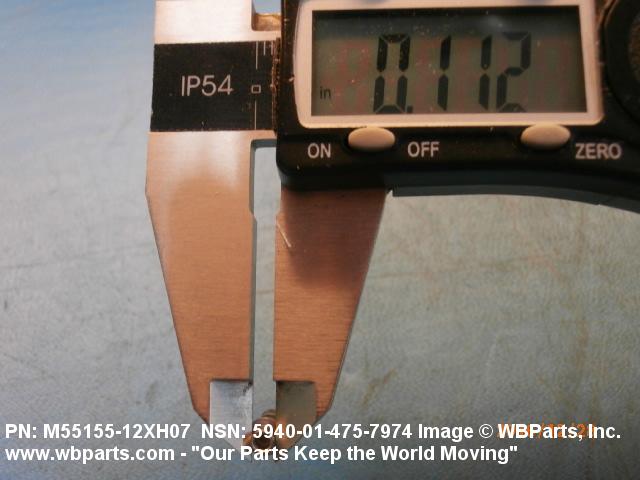

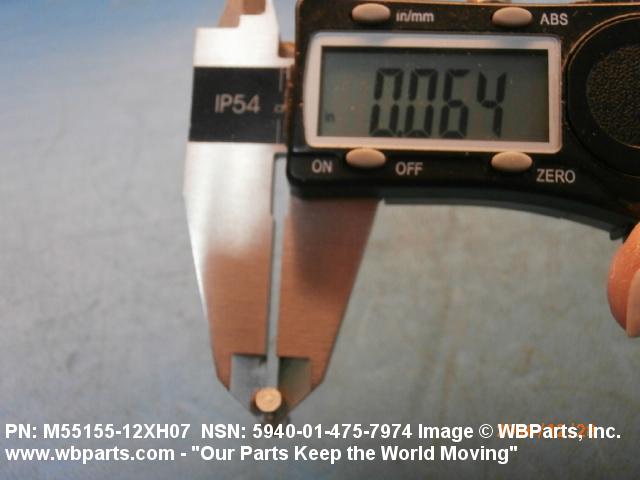

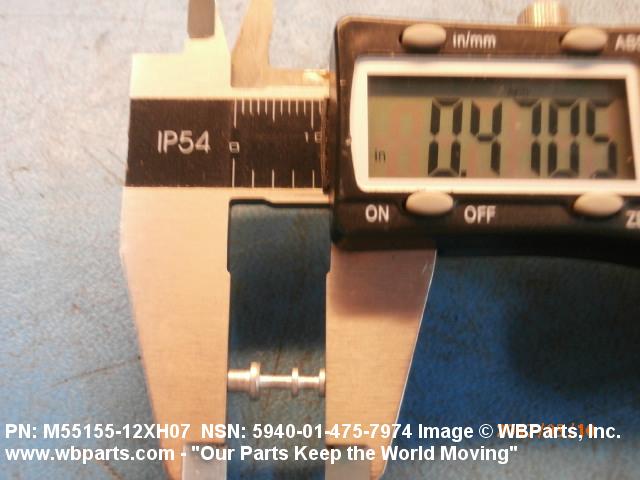

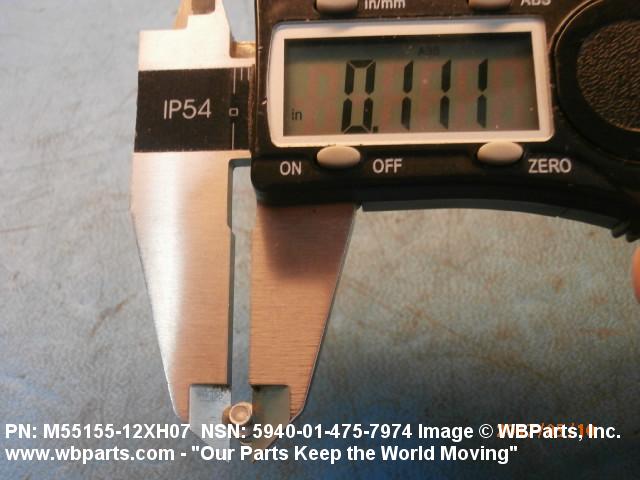

Drawings & Photos | NSN 5940-01-475-7974
Demand History | NSN 5940-01-475-7974
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILT5515512 | 2022-07-202 | 90 | IN |
| AA5912612 | 2018-05-136 | 1000 | US |
| 5940-01-475-7974 | 2017-09-257 | 100 | United States |
| 5940-01-475-7974 | 2017-05-121 | 100 | United States |
| 5940-01-475-7974 | 2016-12-350 | 100 | United States |
| 5940-01-475-7974 | 2016-08-224 | 55 | US |
| 5940-01-475-7974 | 2016-07-207 | 60 | United States |
| AA591261207 | 2009-12-344 | 400 | United States |
| 5940-01-475-7974 | 2009-06-177 | 113 | DIBBS |
| M5515512XH07 | 2008-06-155 | 200 | us |
Cross Reference | NSN 5940-01-475-7974
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59126/12 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-59126/1207 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| M55155/12XH07 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-55155/12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-475-7974
Related Products | NSN 5940-01-475-7974
Technical Data | NSN 5940-01-475-7974
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5A NONTUBULAR, ROUND |

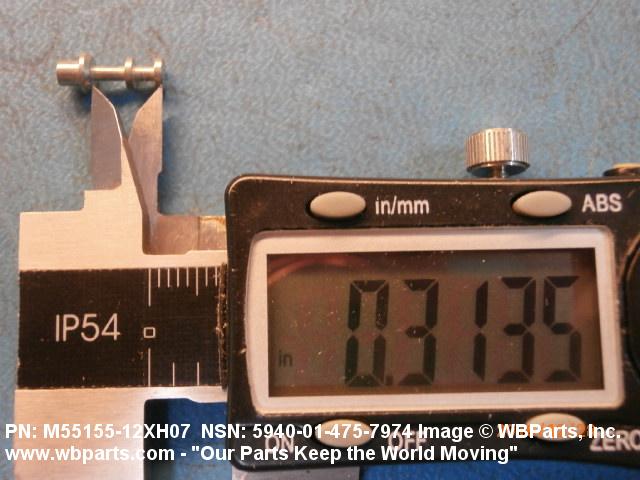

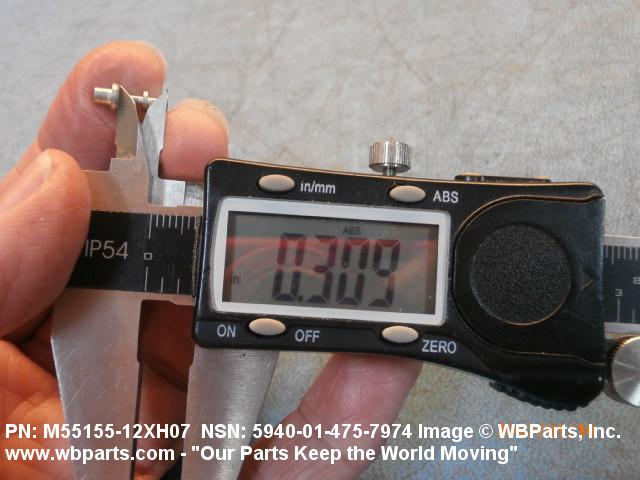

| TERMINAL LENGTH | 0.314 INCHES |

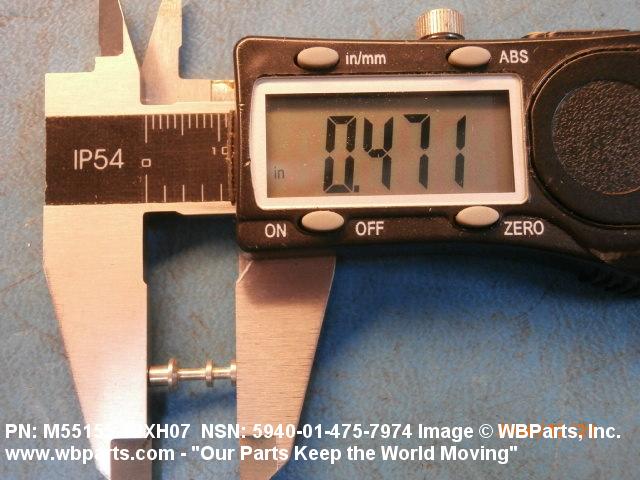

| OVERALL HEIGHT | 0.469 INCHES |

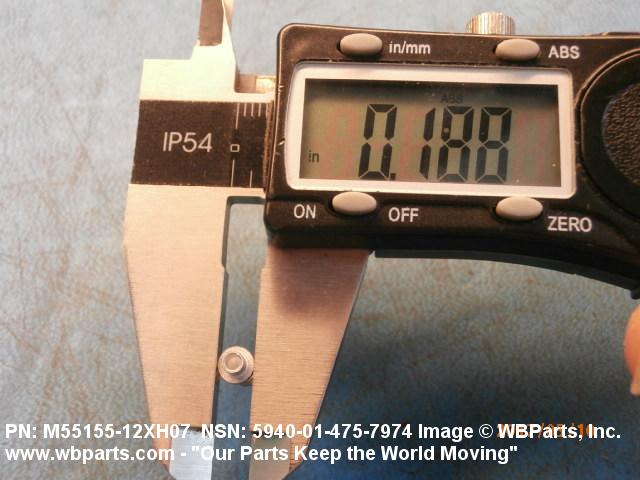

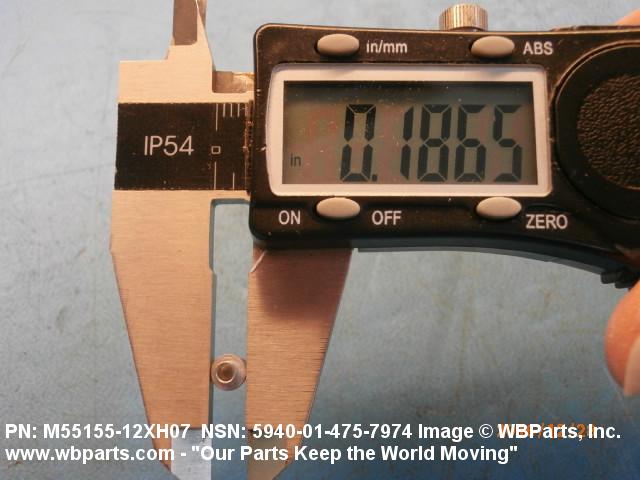

| OVERALL DIAMETER | 0.187 INCHES |

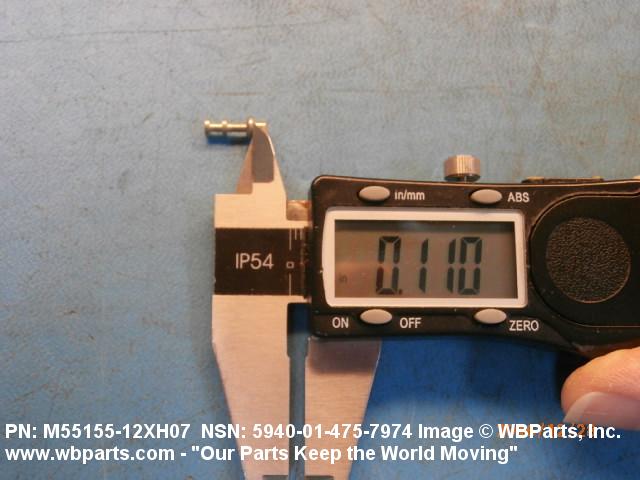

| THRU-HOLE DIAMETER | 0.112 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE TURRET SINGLE END |

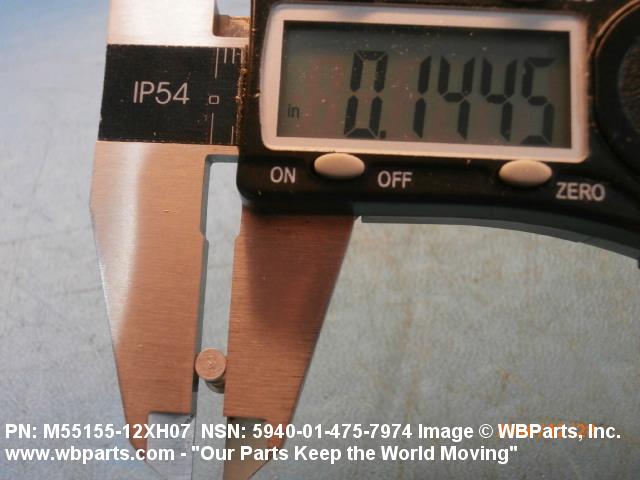

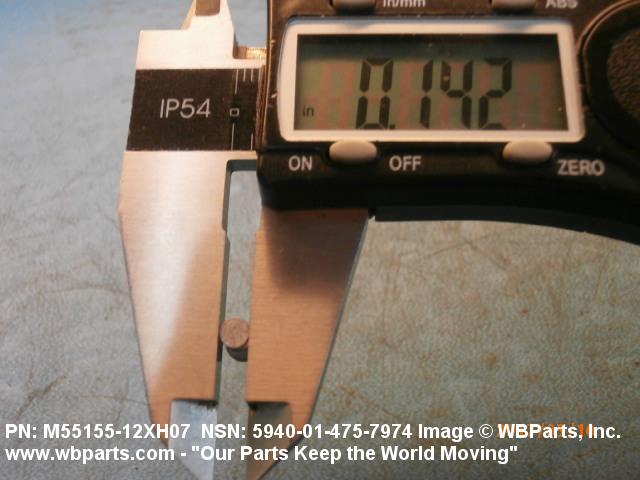

| LARGEST DIAMETER | 0.145 INCHES SINGLE END |
| TURRET MINOR DIAMETER | 0.065 INCHES SINGLE END |
| MOUNTING METHOD STYLE | D33 SWAGE |
| MINOR BUSHING LENGTH | 0.109 INCHES |

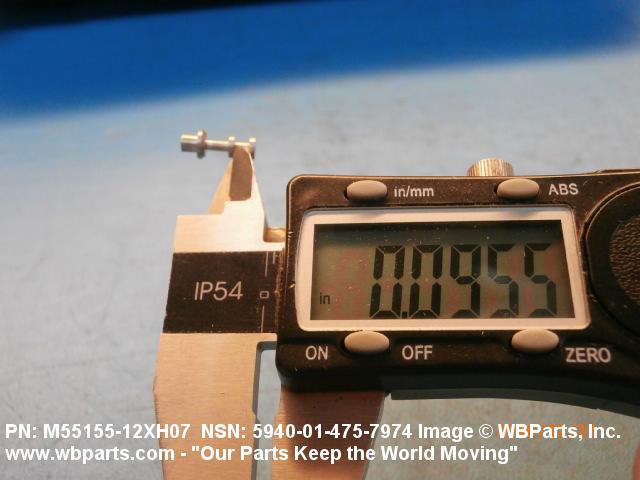

| SWAGE DEPTH | 0.096 INCHES |
| SWAGE OUTSIDE DIAMETER | 0.076 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-454 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-81728 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL SINGLE LAYER |
| TEST DATA DOCUMENT | 81349-MIL-T-55155 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-T-55155/12 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59126/12 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59126/1207 |
Restrictions/Controls & Freight Information | NSN 5940-01-475-7974
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | DX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-475-7974
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
