NSN 5940-01-470-7085 31035, 37308, 01-470-7085
Product Details | QUICK DISCONNECT TERMINAL
5940-01-470-7085 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 31035, 37308, 5940-01-470-7085, 01-470-7085, 5940014707085, 014707085
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JAN 2000 | 01-470-7085 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-01-470-7085
Demand History | NSN 5940-01-470-7085
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 31035 | 2019-02-43 | 350 | DIBBS |
| 37308 | 2019-02-43 | 350 | DIBBS |
| 5940-01-470-7085 | 2018-12-352 | 100 | DIBBS |
| 5940-01-470-7085 | 2015-05-141 | 110 | DIBBS |
| 5940-01-470-7085 | 2015-03-76 | 10 | DIBBS |
| 5940-01-470-7085 | 2015-03-68 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-470-7085
Technical Data | NSN 5940-01-470-7085
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A38 INTERNAL |
| CONDUCTOR ACCOMMODATION TYPE | PIN W/SLOT SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |

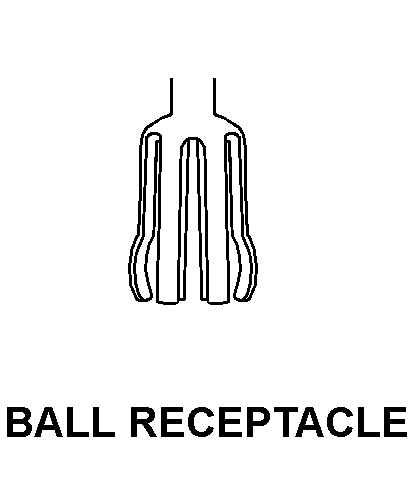

| QUICK DISCONNECT STYLE | G23 BALL RECEPTACLE |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| SPECIAL FEATURES | RATED TO 16 VOLTS DC AND 20 AMPS MAXIMUM |
| III END ITEM IDENTIFICATION | AIR WHEELED T |
Restrictions/Controls & Freight Information | NSN 5940-01-470-7085
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-470-7085
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
