Product Details | STUD TERMINAL
5940-01-415-0928 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 1125040519, 1125-04-0519, 5940-01-415-0928, 01-415-0928, 5940014150928, 014150928
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1995 | 01-415-0928 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-01-415-0928
Cross Reference | NSN 5940-01-415-0928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1125-04-0519 | 18310 | CONCORD ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-415-0928
Related Products | NSN 5940-01-415-0928
Technical Data | NSN 5940-01-415-0928
| Characteristic | Specifications |
|---|---|

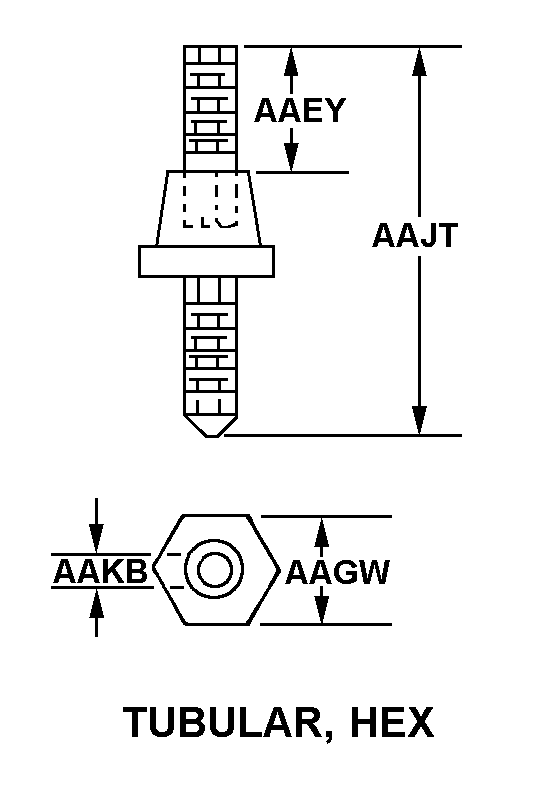

| BASIC SHAPE STYLE | A8 TUBULAR, HEX |
