NSN 5940-01-414-9795 TIRS2T, T-IRS-2-T, 11200233-1
Product Details | STUD TERMINAL
5940-01-414-9795 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: TIRS2T, T-IRS-2-T, 11200233-1, 5940-01-414-9795, 01-414-9795, 5940014149795, 112002331, 014149795
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 16 JUN 1995 | 01-414-9795 | 00887 ( TERMINAL, STUD ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-414-9795
Related Products | NSN 5940-01-414-9795
Technical Data | NSN 5940-01-414-9795
Characteristic | Specifications |
---|---|

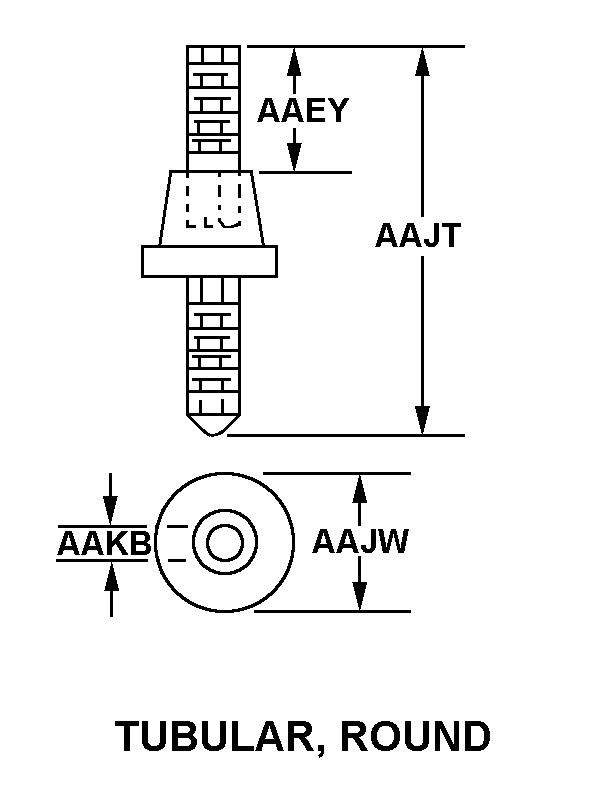

BASIC SHAPE STYLE | A7 TUBULAR, ROUND |
TERMINAL LENGTH | 0.232 INCHES |
OVERALL HEIGHT | 0.545 INCHES |
OVERALL DIAMETER | 0.070 INCHES |
THRU-HOLE DIAMETER | 0.035 INCHES |
CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |

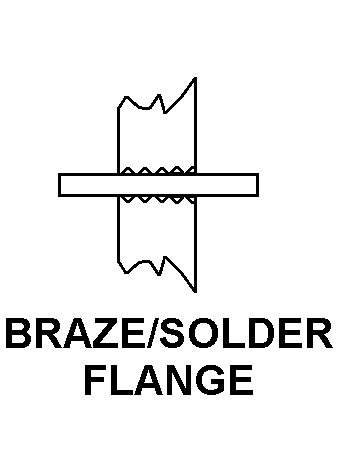

MOUNTING METHOD STYLE | D40 BRAZE/SOLDER FLANGE |
ELECTRICAL INSULATION FEATURE | UNINSULATED |
MATERIAL | COPPER ALLOY OVERALL |
