NSN 5940-01-386-8426 314A3624, 314A3624P001, 314A3624-P001
Product Details | TERMINAL BOARD
5940-01-386-8426 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 314A3624, 314A3624P001, 314A3624-P001, 963E440PC70, 5940-01-386-8426, 01-386-8426, 5940013868426, 013868426
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 FEB 1994 | 01-386-8426 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-01-386-8426
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-386-8426
Technical Data | NSN 5940-01-386-8426
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYESTER AND GLASS FIBER BOARD COPPER ALLOY 670 TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE BOARD QQ-B728,CLASS B FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |

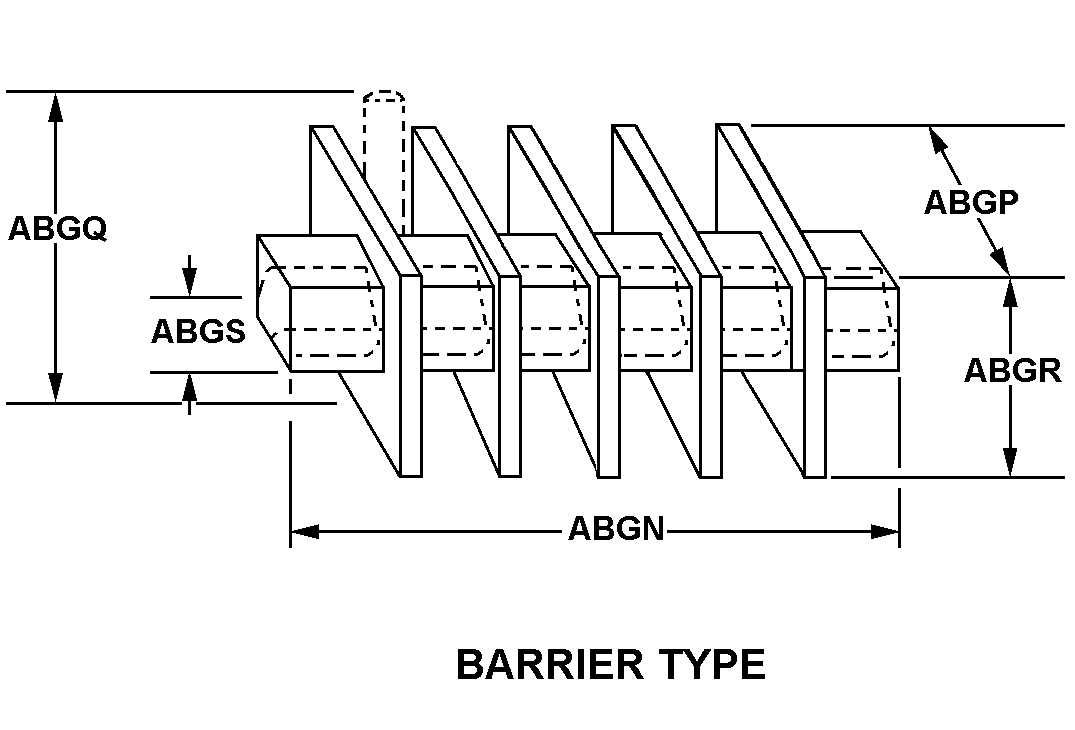

| BODY STYLE | A6 BARRIER TYPE |
| BOARD OVERALL LENGTH | 4.500 INCHES |
| BOARD OVERALL WIDTH | 0.625 INCHES |
| BOARD OVERALL HEIGHT | 0.859 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 0.750 INCHES |
| BASE THICKNESS | 0.375 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.312 INCHES |
| TERMINAL DESIGN | VERTICAL FEEDTHRU |
| FEEDTHRU CONNECTION END TYPE | 598 FIRST END SINGLE COMBINATION 598 SECOND END SINGLE COMBINATION |
| FEEDTHRU TERMINAL QUANTITY | 12 SINGLE COMBINATION |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| CURRENT RATING IN AMPS | 30.0 |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1.5 |
Restrictions/Controls & Freight Information | NSN 5940-01-386-8426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-386-8426
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
