NSN 5940-01-333-3244 01-333-3244, 013333244
Product Details | STUD TERMINAL
5940-01-333-3244 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 5940-01-333-3244, 01-333-3244, 5940013333244, 013333244
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-333-3244 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-01-333-3244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-333-3244
Technical Data | NSN 5940-01-333-3244
| Characteristic | Specifications |
|---|---|

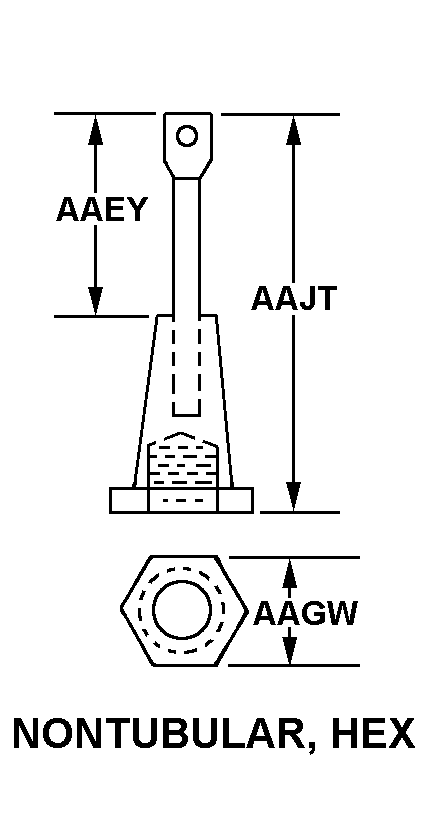

| BASIC SHAPE STYLE | A6 NONTUBULAR, HEX |
| TERMINAL LENGTH | 0.218 INCHES |
| WIDTH ACROSS FLATS | 0.250 INCHES |
| OVERALL HEIGHT | 0.718 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE TURRET SINGLE END |

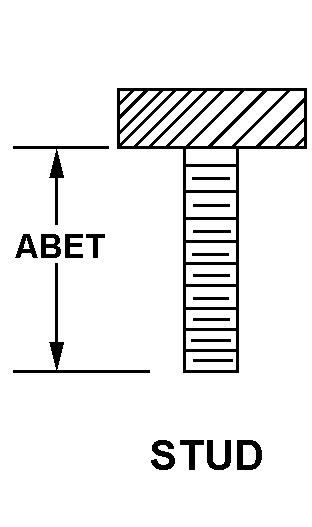

| MOUNTING METHOD STYLE | D27 STUD |
| THREAD LENGTH | 0.156 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.112 INCHES |
| ELECTRICAL INSULATION FEATURE | STANDOFF INSULATION |
| IDENTIFICATION CODE COLOR | BLUE |
| MATERIAL | PLASTIC DIALLYL PHTHALATE INSULATION |
| MANUFACTURERS CODE | 24655 |
| DESIGN CONTROL REFERENCE | 7970-0600 |
Restrictions/Controls & Freight Information | NSN 5940-01-333-3244
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
