Product Details | WARNING DEVICE CONTACT

5940-01-233-3457

Part Alternates: 36A227297, 36A227297P1, 36A227298P1, 36A22729P1, 5940-01-233-3457, 01-233-3457, 5940012333457, 012333457

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG) NSN Assign. NIIN
59 29 MAY 1986 01-233-3457

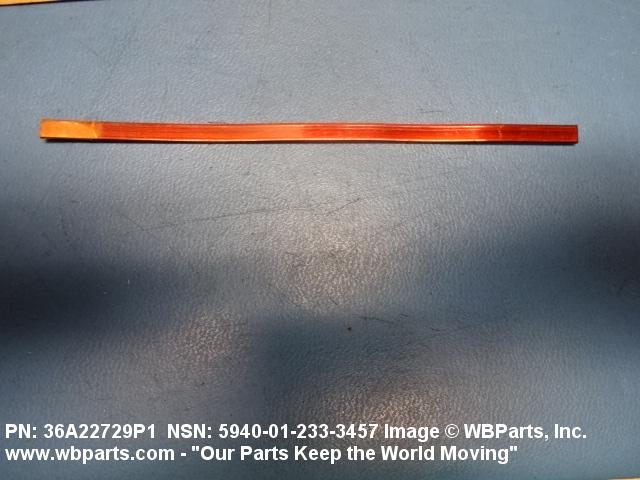

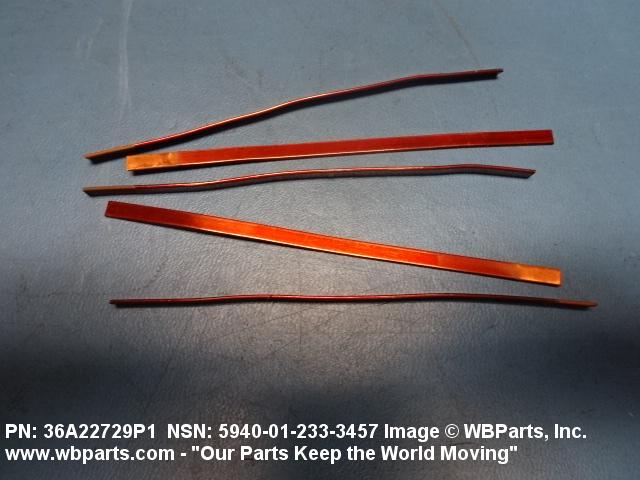

Drawings & Photos | NSN 5940-01-233-3457


Demand History | NSN 5940-01-233-3457

Part Number Request Date QTY Origin
36A227298G1 2019-08-225 14 DIBBS
5940-01-233-3457 2017-07-191 1 DIBBS
5940-01-233-3457 2017-06-171 19 DIBBS
5940-01-233-3457 2017-06-158 5 United States
5940-01-233-3457 2017-06-152 1 DIBBS
5940-01-233-3457 2017-04-115 5 DIBBS
5940-01-233-3457 2017-02-54 5 DIBBS
5940-01-233-3457 2007-06-158 154 DIBBS
5940-01-233-3457 2007-03-73 94 DIBBS
5940-01-233-3457 2006-03-73 38 DIBBS

Cross Reference | NSN 5940-01-233-3457

Part Number Cage Code Manufacturer
36A227297 01288 GENERAL ELECTRIC CO DIRECT CURRENT MOTOR AND GENERATOR
36A227297 1R9D8 GE AVIATION SYSTEMS LLC DBA GE AVIATION
36A227297P1 30221 GENERAL ELECTRIC CO ARMAMENT AND ELECTRICAL SYSTEMS DEPT
36A227298P1 07639 GE AVIATION SYSTEMS LLC DBA GE AVIATION
36A22729P1 07639 GE AVIATION SYSTEMS LLC DBA GE AVIATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5940-01-233-3457

Technical Data | NSN 5940-01-233-3457

Characteristic Specifications

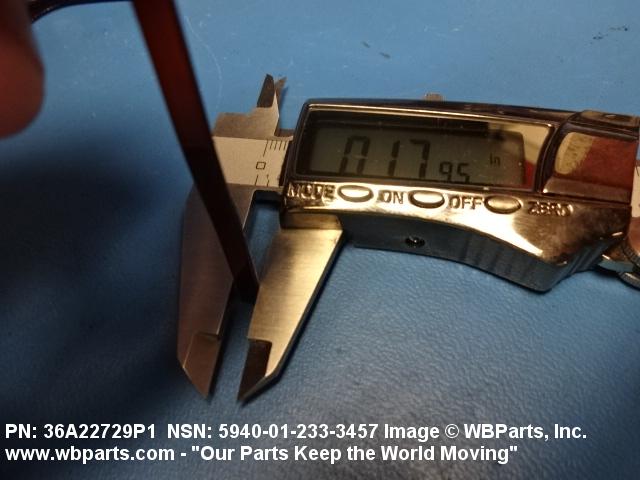

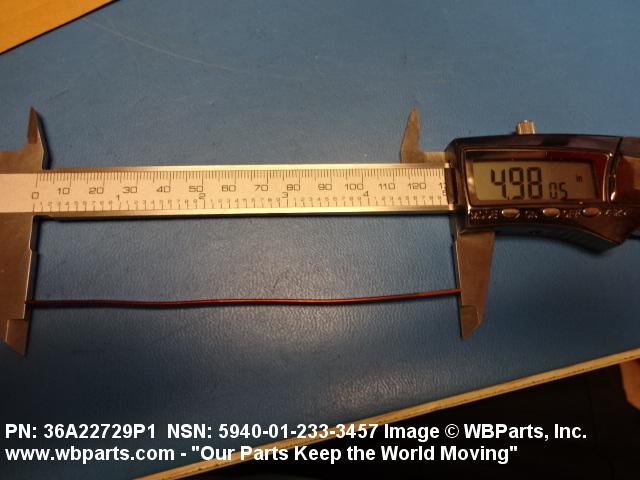

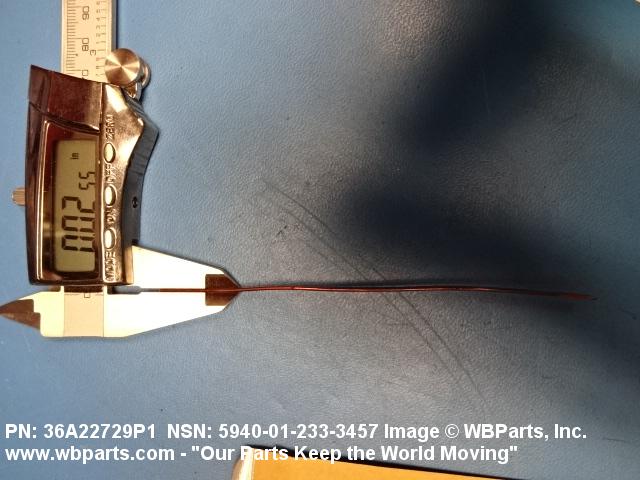

GENERAL CHARACTERISTICS ITEM DESCRIPTION 5.000 IN. LG; 0.040 IN. THK; 0.180 IN. W

Restrictions/Controls & Freight Information | NSN 5940-01-233-3457

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061260 CABLE TERMINALS/BOXES/HOUSINGS ETC
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5940-01-233-3457

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
