NSN 5940-01-223-7690 601GPYSY06, 601-GP-YSY-06, 601YSY6
Product Details | TERMINAL BOARD
5940-01-223-7690 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 601GPYSY06, 601-GP-YSY-06, 601YSY6, 601-YSY-6, 5940-01-223-7690, 01-223-7690, 5940012237690, 012237690
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JAN 1986 | 01-223-7690 | 00404 ( TERMINAL BOARD ) |

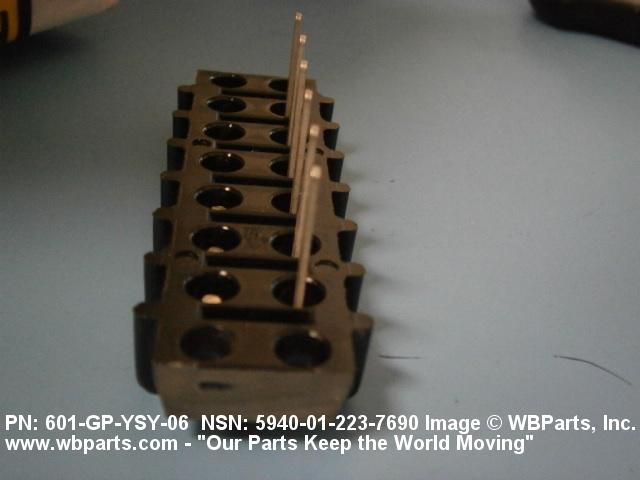

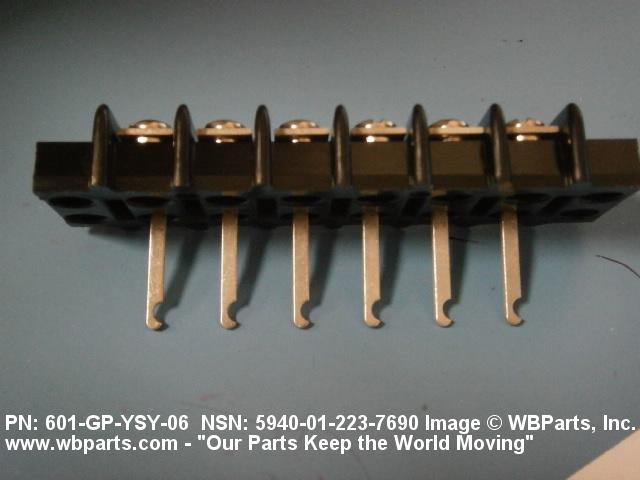

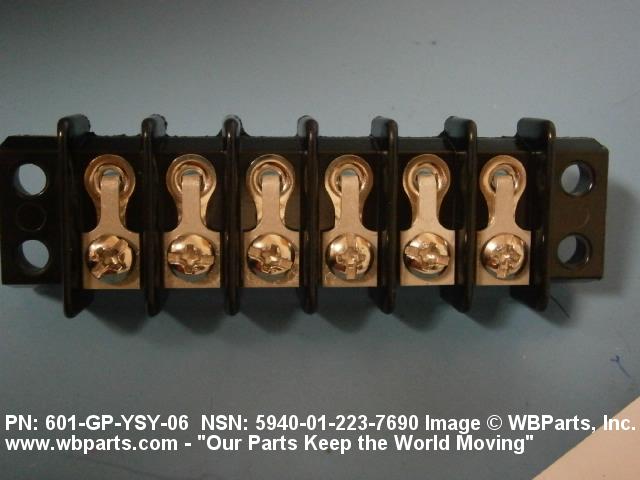

Drawings & Photos | NSN 5940-01-223-7690
Demand History | NSN 5940-01-223-7690
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-223-7690 | 2013-11-324 | 1 | US |
| 5940-01-223-7690 | 2011-10-286 | 1 | Denmark |
| 5940-01-223-7690 | 2011-10-278 | 1 | Denmark |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-223-7690
Technical Data | NSN 5940-01-223-7690
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |
| BODY STYLE | BARRIER TYPE |
| BOARD OVERALL LENGTH | 3.375 INCHES |
| BOARD OVERALL WIDTH | 0.875 INCHES |
| BOARD OVERALL HEIGHT | 1.125 INCHES |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| TERMINAL FACILITY QUANTITY | 6 |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.175 INCHES |
Restrictions/Controls & Freight Information | NSN 5940-01-223-7690
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
