NSN 5940-01-222-8150 KHT 1050, KHT1050, 5M2390001
Product Details | LUG TERMINAL
5940-01-222-8150 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: KHT 1050, KHT1050, 5M2390001, 5M2390-001, 5940-01-222-8150, 01-222-8150, 5940012228150, 012228150
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 DEC 1985 | 01-222-8150 | 00746 ( TERMINAL, LUG ) |

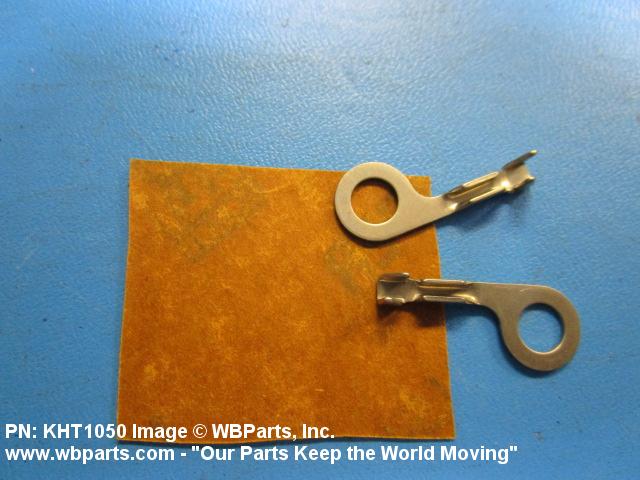

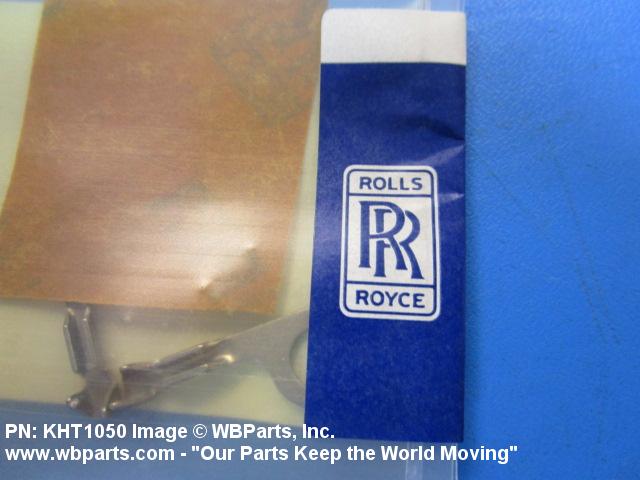

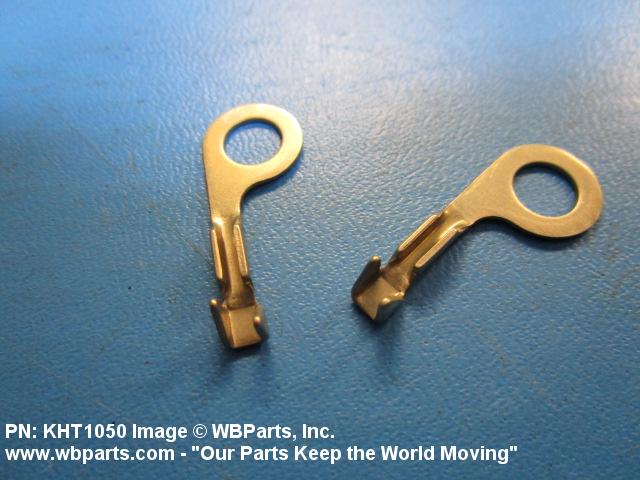

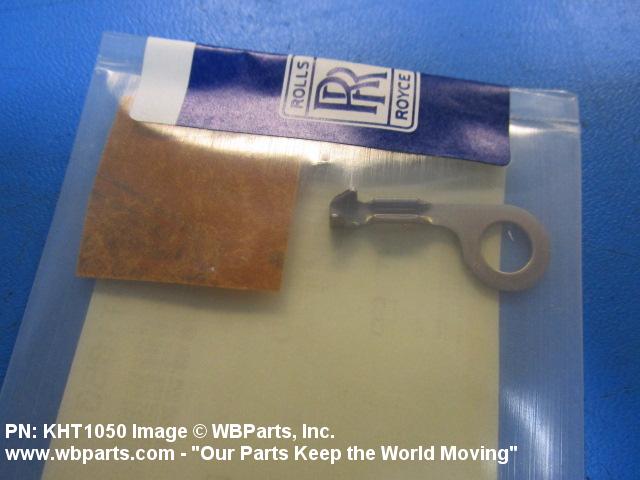

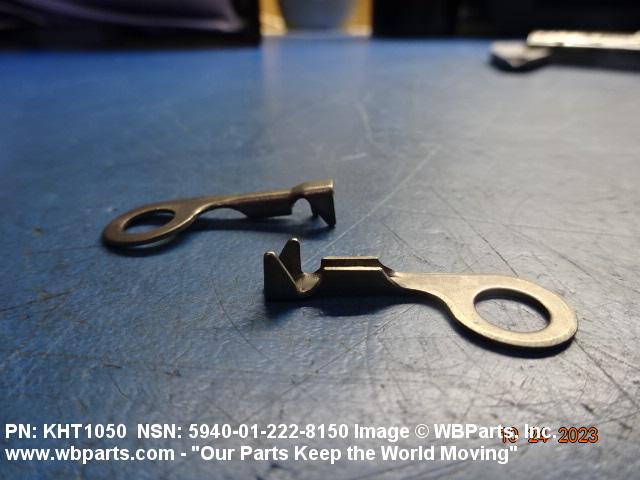

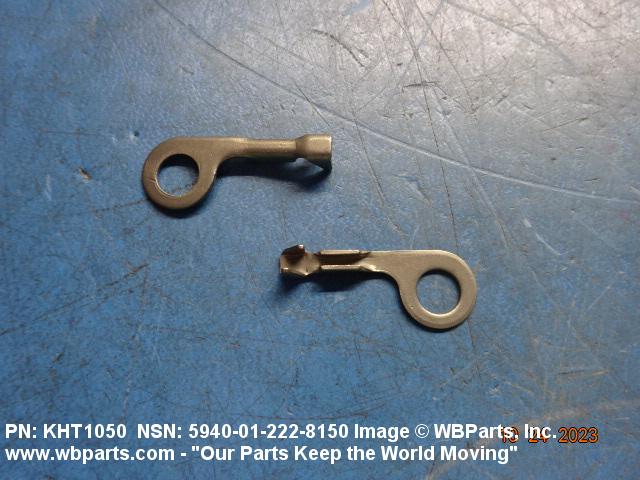

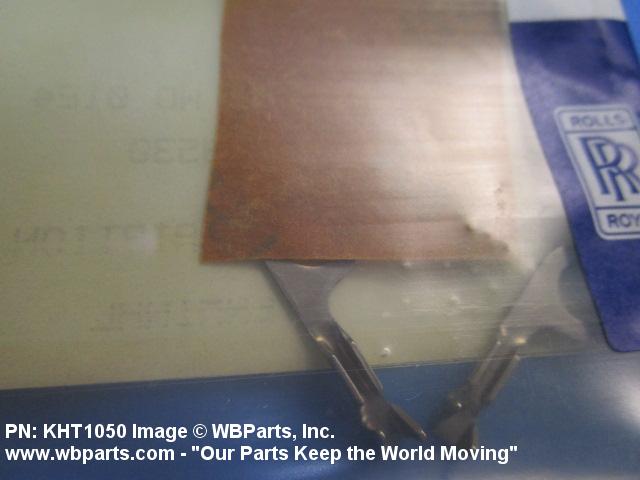

Drawings & Photos | NSN 5940-01-222-8150
Demand History | NSN 5940-01-222-8150
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-222-8150 | 2023-09-244 | 18 | DIBBS |
| 5940-01-222-8150 | 2023-08-236 | 18 | DIBBS |
| 5940-01-222-8150 | 2023-06-167 | 2 | United States |
| KHT1050 | 2021-07-209 | 3 | United States |
| 5940-01-222-8150 | 2019-12-346 | 24 | DIBBS |
| 5940-01-222-8150 | 2019-09-258 | 34 | DIBBS |
| 5940-01-222-8150 | 2018-07-211 | 32 | DIBBS |
| 5940-01-222-8150 | 2018-07-203 | 32 | DIBBS |
| 5940-01-222-8150 | 2018-02-51 | 120 | DIBBS |
| 5940-01-222-8150 | 2017-06-169 | 136 | DIBBS |
| 5940-01-222-8150 | 2016-10-286 | 59 | DIBBS |
| 5940-01-222-8150 | 2015-09-250 | 86 | DIBBS |
| 5940-01-222-8150 | 2007-03-74 | 279 | DIBBS |
| 5940-01-222-8150 | 2007-02-43 | 24 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-222-8150
Technical Data | NSN 5940-01-222-8150
| Characteristic | Specifications |
|---|---|

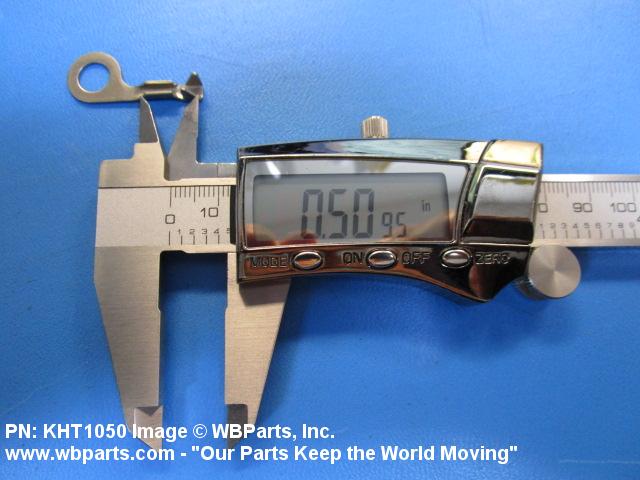

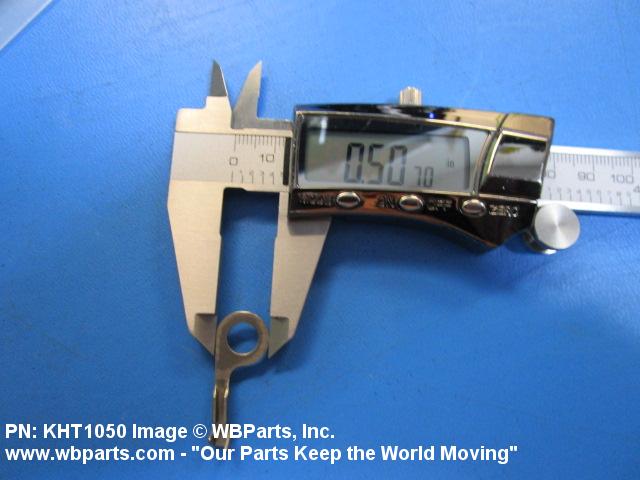

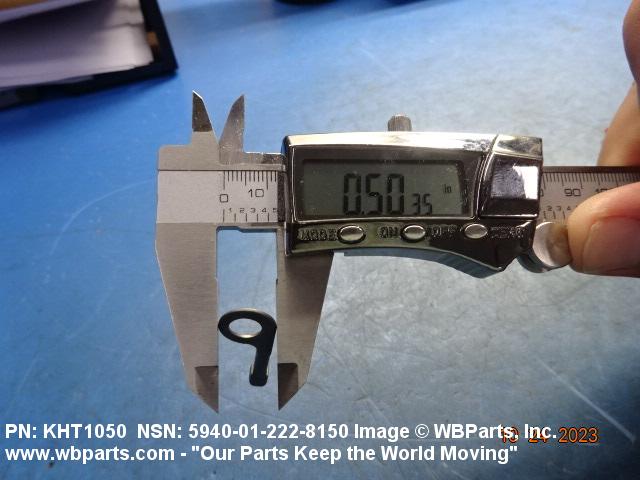

| OVERALL WIDTH | 0.500 INCHES |
| MOUNTING TONGUE WIDTH | 0.500 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | CLAMPING TANG EARS SINGLE END |

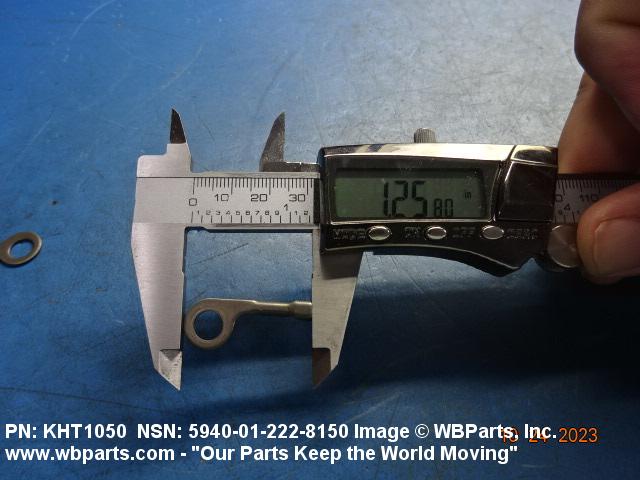

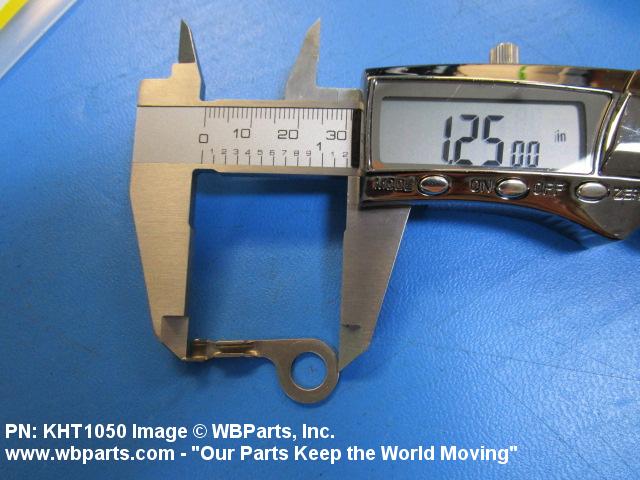

| OVERALL LENGTH | 1.250 INCHES |

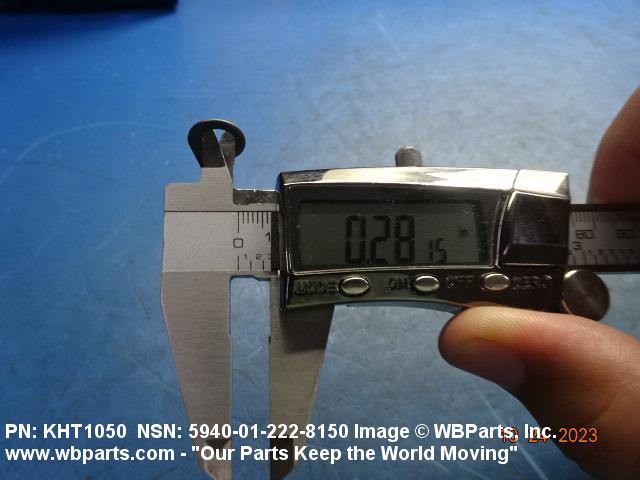

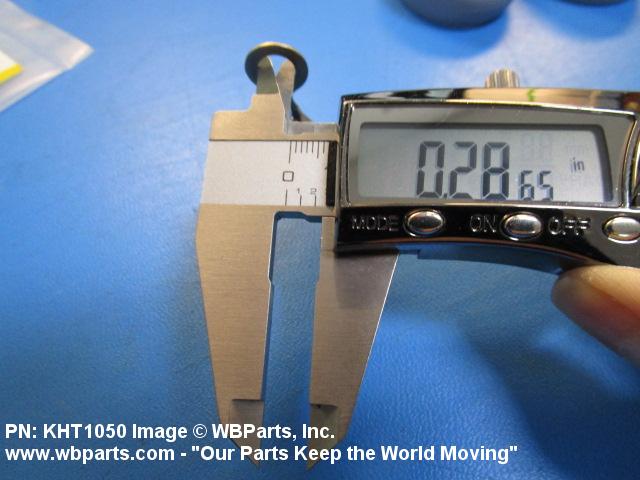

| MOUNTING HOLE DIAMETER | 0.286 INCHES |

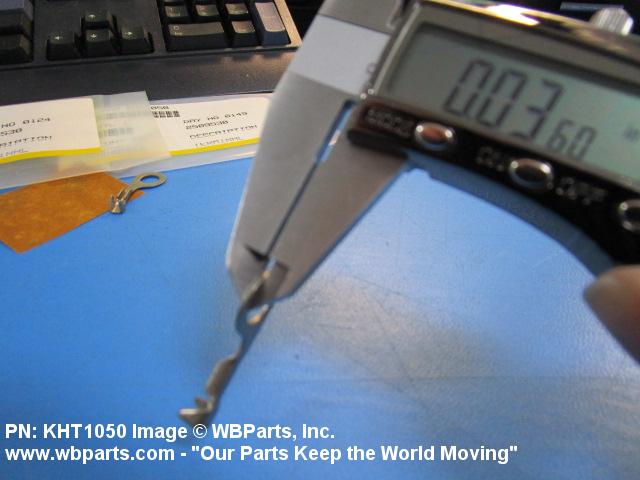

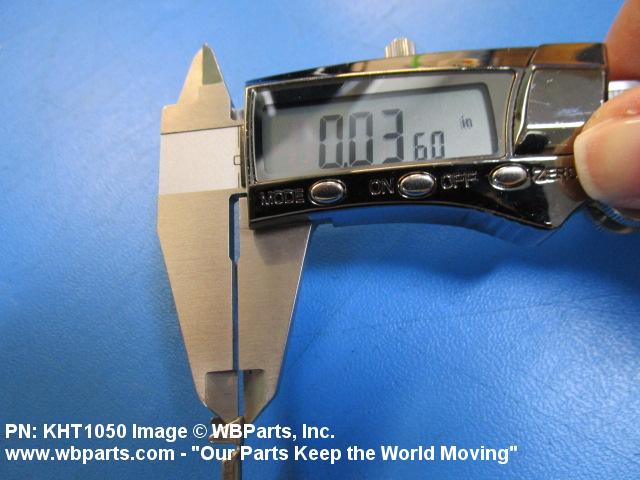

| MATERIAL THICKNESS | 0.036 INCHES |
| SPECIAL FEATURES | TEMPERATURE RANGE,MINUS 300 DEG F TO PLUS 2280 DEG F |
| MATERIAL | NICKEL ALLOY OVERALL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MOUNTING METHOD STYLE | RING |
| BASIC SHAPE STYLE | CRIMP |
| MOUNTING FACILITY THICKNESS | 0.036 INCHES |
Restrictions/Controls & Freight Information | NSN 5940-01-222-8150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-222-8150
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
