NSN 5940-01-204-3019 23646, 480112, 01-204-3019
Product Details | TERMINAL BOARD
5940-01-204-3019 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 23646, 480112, 5940-01-204-3019, 01-204-3019, 5940012043019, 012043019
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAR 1985 | 01-204-3019 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-01-204-3019
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-204-3019
Technical Data | NSN 5940-01-204-3019
| Characteristic | Specifications |
|---|---|

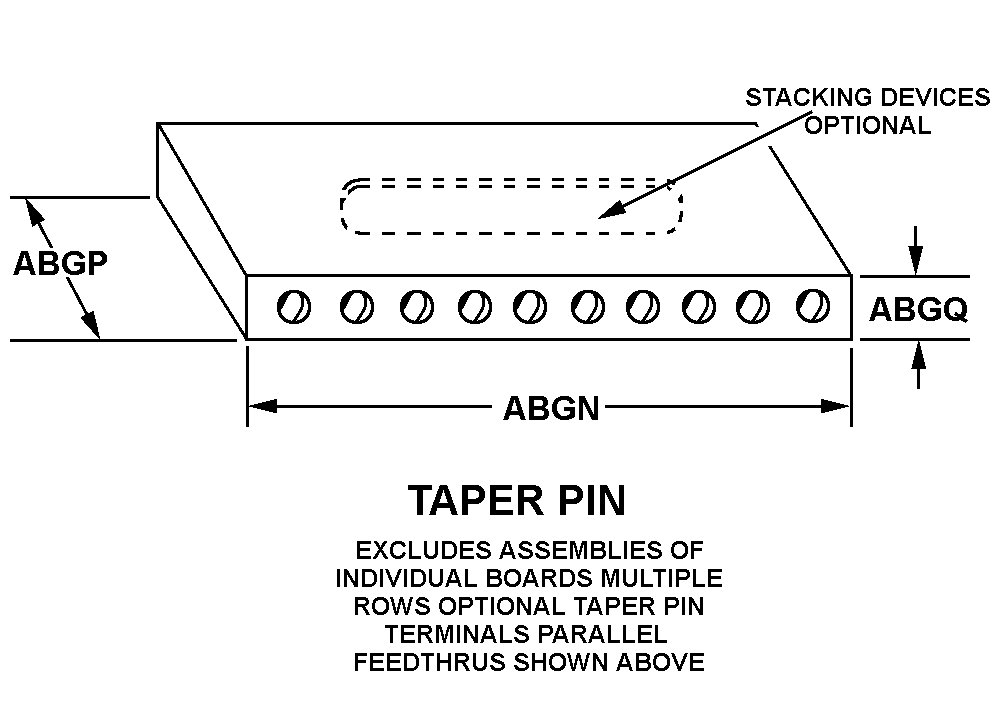

| BODY STYLE | A17 TAPER PIN |
Restrictions/Controls & Freight Information | NSN 5940-01-204-3019
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
