Product Details | STUD TERMINAL
5940-01-163-2893 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: 26316534, 5940-01-163-2893, 01-163-2893, 5940011632893, 011632893
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 29 SEP 1983 | 01-163-2893 | 00887 ( TERMINAL, STUD ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-163-2893
Related Products | NSN 5940-01-163-2893
Technical Data | NSN 5940-01-163-2893
Characteristic | Specifications |
---|---|
BASIC SHAPE STYLE | A8A NONTUBULAR, HEX |
TERMINAL LENGTH | 0.594 INCHES |
WIDTH ACROSS FLATS | 0.250 INCHES |
OVERALL HEIGHT | 0.784 INCHES |
CONDUCTOR ACCOMMODATION TYPE | THREADED EXTERNAL SINGLE END |

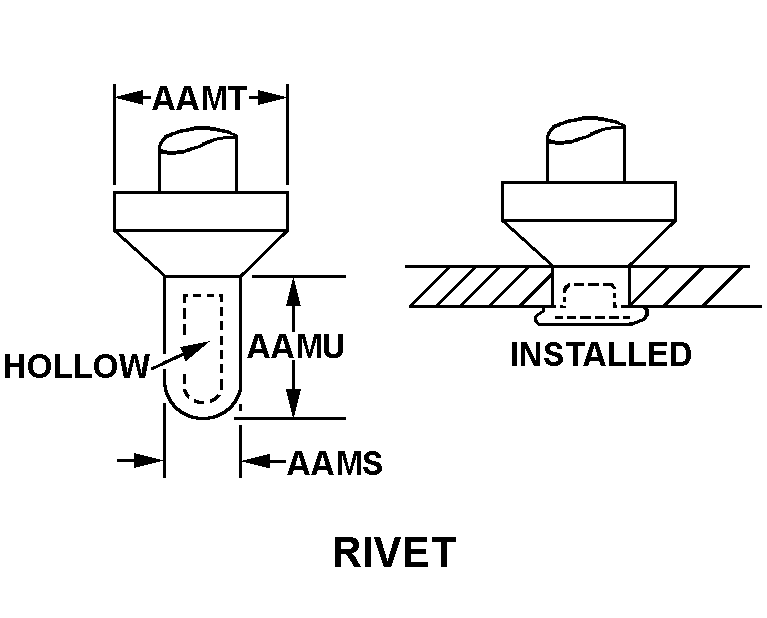

MOUNTING METHOD STYLE | D41 RIVET |
MINOR BUSHING DIAMETER | 0.060 INCHES |
MAJOR BUSHING DIAMETER | 0.250 INCHES |
MAJOR BUSHING LENGTH | 0.097 INCHES |
ELECTRICAL INSULATION FEATURE | UNINSULATED |
MATERIAL | STEEL CORROSION RESISTING OVERALL |
SURFACE TREATMENT | PASSIVATE OVERALL SINGLE LAYER |
SPECIAL FEATURES | SQUARE MOUNTING BASE |
