NSN 5940-01-123-5127 ST4M1474, ST4M147-4, PC92039
Product Details | RADIO FREQUENCY GROUNDING CONTACT STRIP
5940-01-123-5127 A semirigid metallic item of electrically conductive material designed for the specific purpose of grounding and/or bonding radio frequency equipment. It is normally attached to one item to give spring action to form a ground and/or bond with another item. Excludes TERMINAL STRIP, GROUNDING; CONTACT, ELECTRICAL; and STRIP, ELECTRICAL GROUNDING.
Part Alternates: ST4M1474, ST4M147-4, PC92039, PC920391, PC92039-1, 86929, 869-29, 10132333 , 5940-01-123-5127, 01-123-5127, 5940011235127, 011235127
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 DEC 1981 | 01-123-5127 | 22600 ( CONTACT STRIP, RADIO FREQUENCY GROUNDING ) |

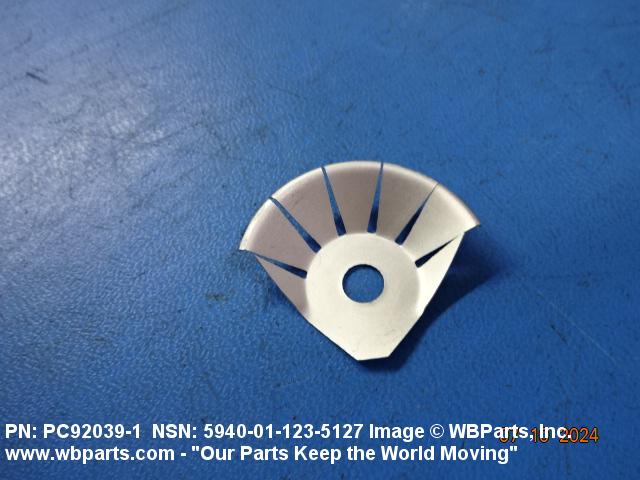

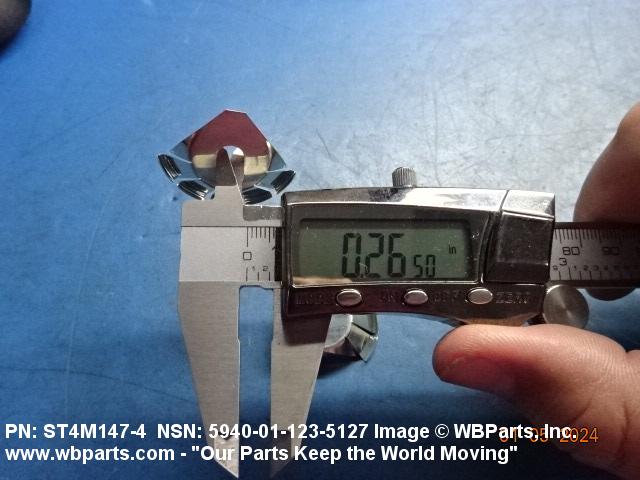

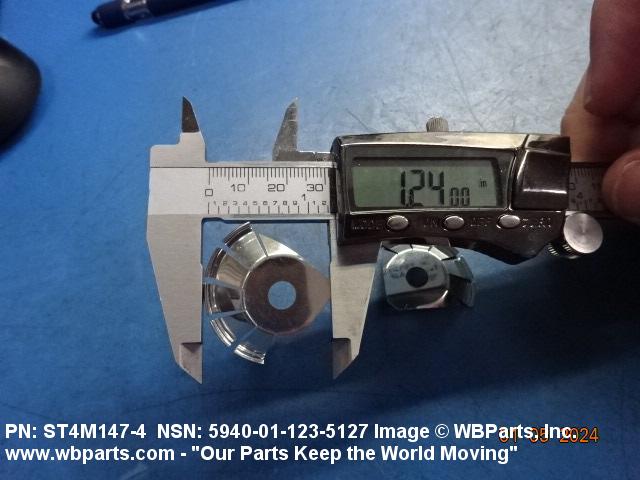

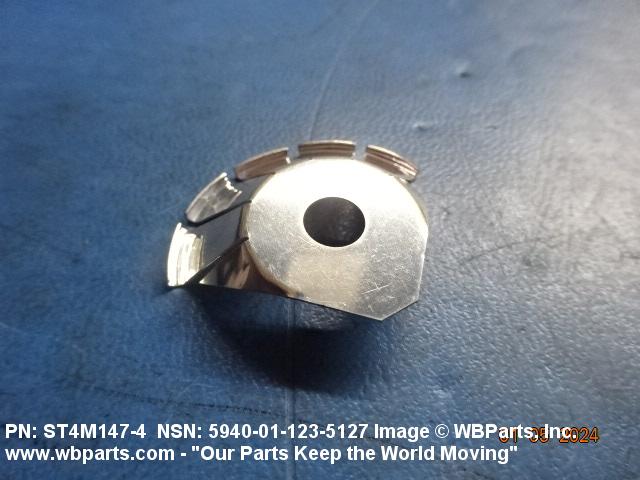

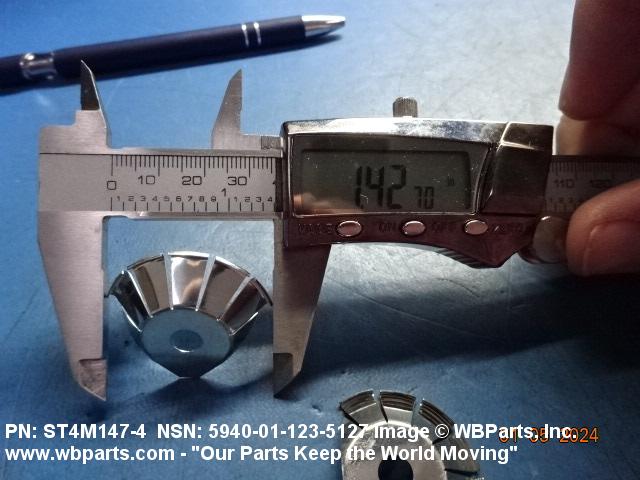

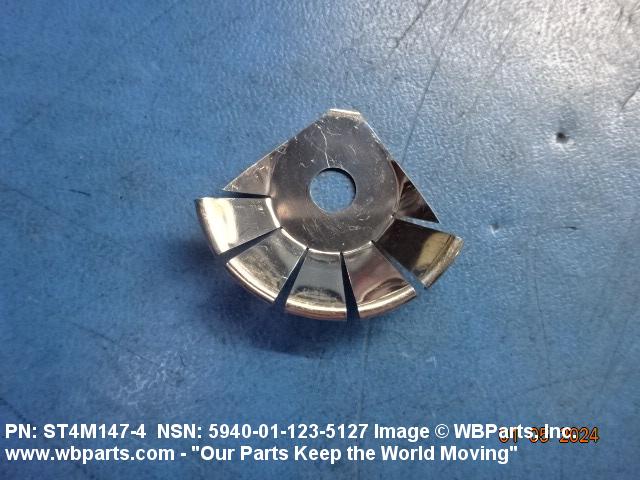

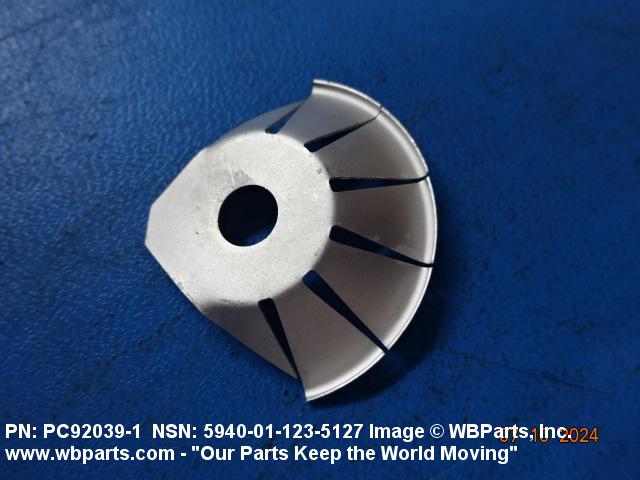

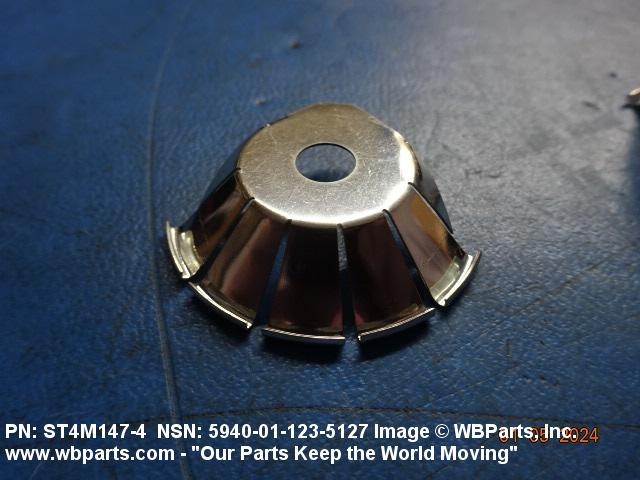

Drawings & Photos | NSN 5940-01-123-5127
Demand History | NSN 5940-01-123-5127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-123-5127 | 2024-09-270 | 414 | DIBBS |
| 5940-01-123-5127 | 2024-08-231 | 168 | DIBBS |
| 5940-01-123-5127 | 2024-06-155 | 25 | Spain |
| 5940-01-123-5127 | 2023-12-355 | 2 | United States |
| 5940-01-123-5127 | 2023-07-193 | 17 | Spain |
| 5940-01-123-5127 | 2020-03-78 | 10 | United States |
| 5940-01-123-5127 | 2019-06-179 | 10 | US |
| 5940-01-123-5127 | 2014-04-111 | 1 | DIBBS-RFPs |
| 5940-01-123-5127 | 2012-12-353 | 2266 | DIBBS |
| ST4M1474 | 2011-08-221 | 10 | United States |
| 5940-01-123-5127 | 2011-06-175 | 1935 | DIBBS |
| 5940-01-123-5127 | 2007-10-278 | 2299 | DIBBS |
| 5940-01-123-5127 | 2007-06-162 | 820 | DIBBS |
| 5940-01-123-5127 | 2007-06-158 | 649 | DIBBS |
| 5940-01-123-5127 | 2007-02-43 | 169 | DIBBS |
Cross Reference | NSN 5940-01-123-5127
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-123-5127
Related Products | NSN 5940-01-123-5127
Technical Data | NSN 5940-01-123-5127
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | PLATE |
| CONTACT FINGER QUANTITY | 5 |
| MATERIAL | BERYLLIUM COPPER |
| SURFACE TREATMENT | TIN PLATED |
| OVERALL LENGTH | 1.140 INCHES NOMINAL |
| OVERALL WIDTH | 1.140 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL THICKNESS | 0.012 INCHES NOMINAL |
| MOUNTING METHOD | HOLE |
| MOUNTING CONFIGURATION | ONE 0.265 IN. DIA MTG HOLE |
Restrictions/Controls & Freight Information | NSN 5940-01-123-5127
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062140 | GROUND CLAMPS IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-123-5127
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
