NSN 5940-01-109-7472 M83454/04-AA208, M8345404AA208, BACS53B1EA2
Product Details | STUD TERMINAL
5940-01-109-7472 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: M83454/04-AA208, M8345404AA208, BACS53B1EA2, MIL-T-83454/4, MILT834544, VNS1924CA328, VNS1924CA3-2-8, 10132232 , 5940-01-109-7472, 01-109-7472, 5940011097472, 011097472
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 1981 | 01-109-7472 | 00887 ( TERMINAL, STUD ) |

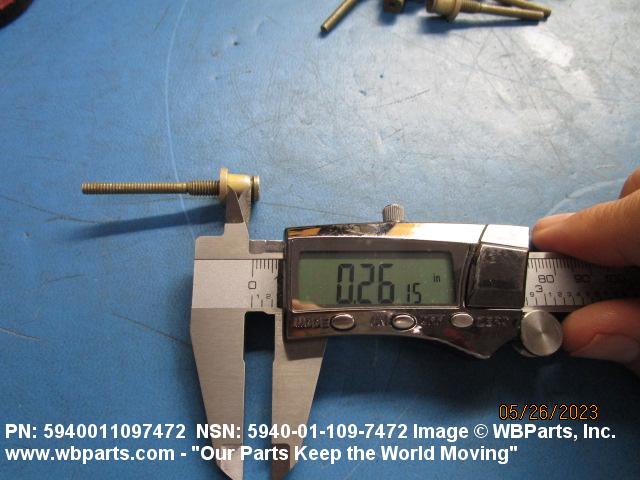

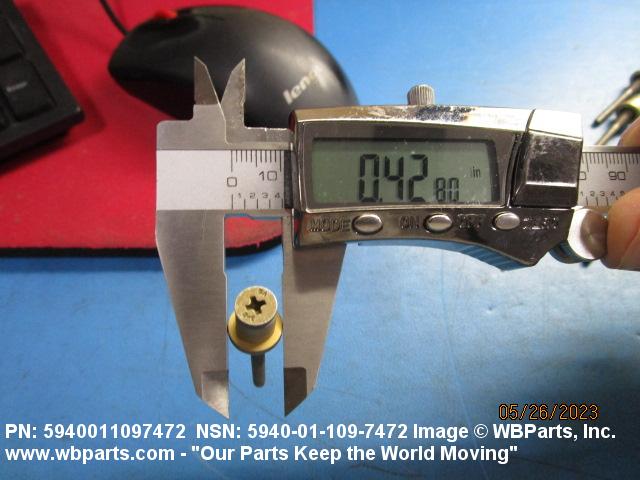

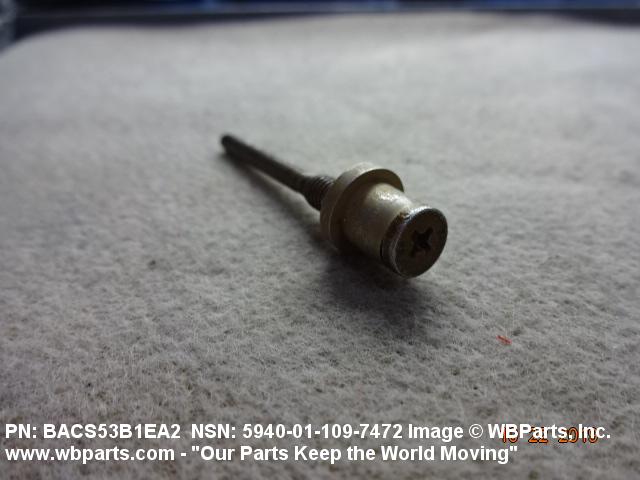

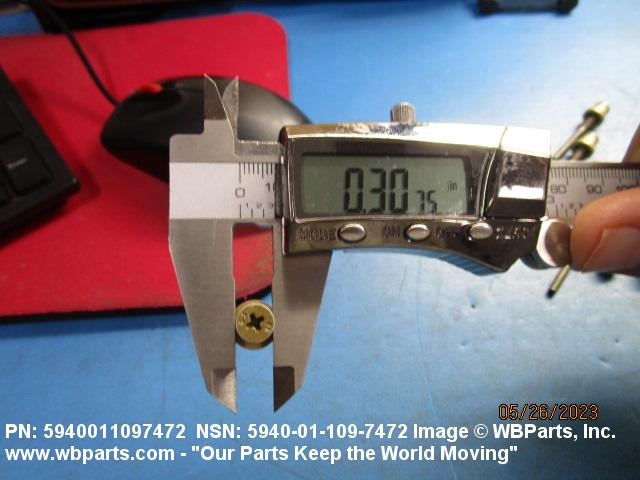

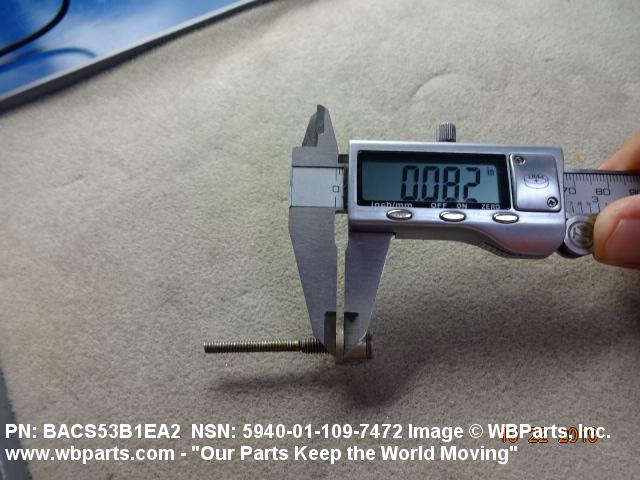

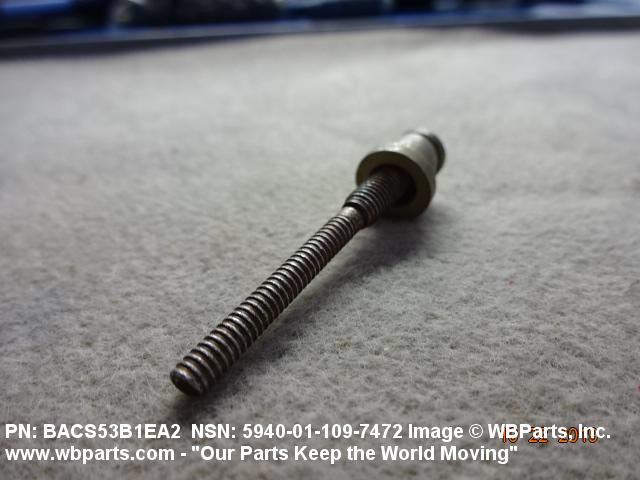

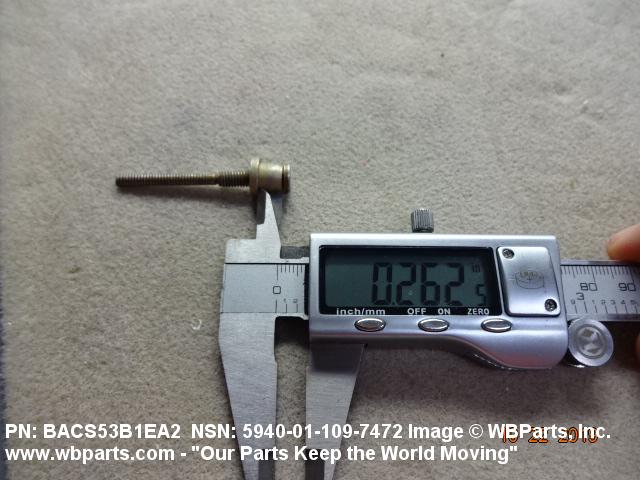

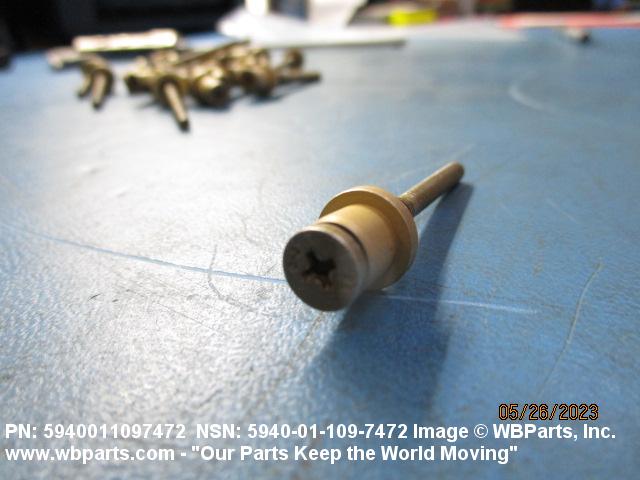

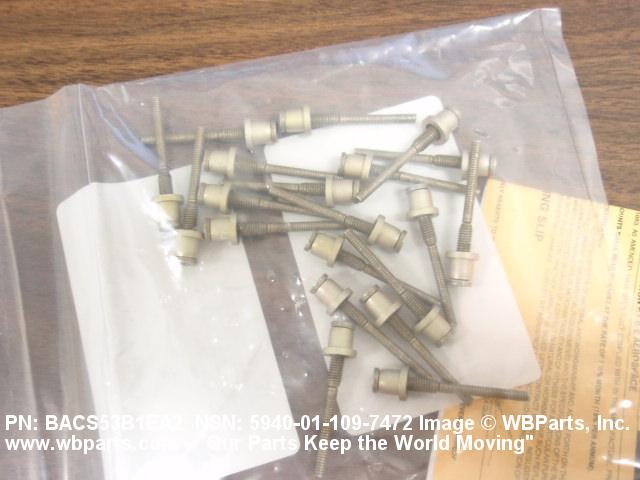

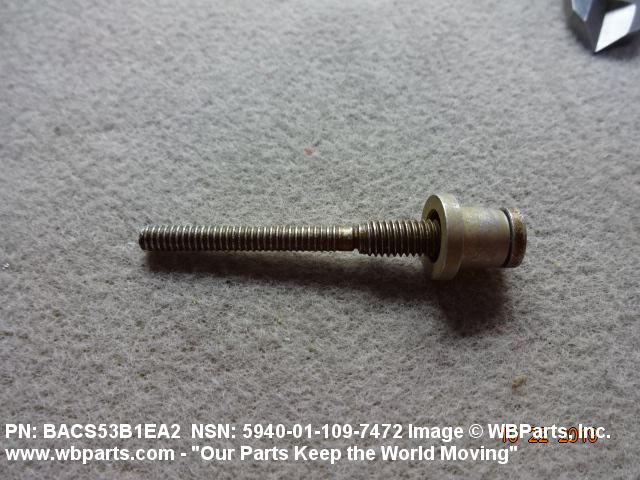

Drawings & Photos | NSN 5940-01-109-7472
Demand History | NSN 5940-01-109-7472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-109-7472 | 2024-05-145 | 25 | United States |
| 5940-01-109-7472 | 2024-04-99 | 400 | IL |
| 5940-01-109-7472 | 2024-04-96 | 500 | IL |
| BACS53B1EA2 | 2024-03-87 | 2 | United States |
| 5940-01-109-7472 | 2024-03-78 | 60 | Canada |
| 5940-01-109-7472 | 2023-10-303 | 5 | United States |
| 5940-01-109-7472 | 2023-10-298 | 60 | Canada |
| 5940-01-109-7472 | 2023-10-283 | 60 | Canada |
| 5940-01-109-7472 | 2023-09-261 | 20 | CN |
| 5940-01-109-7472 | 2023-07-198 | 10 | US |
| M8345404AA208 | 2023-07-198 | 2 | US |
| 5940-01-109-7472 | 2023-07-195 | 30 | CN |
| BACS53B1EA2 | 2023-05-132 | 25 | United States |
| M8345404AA208 | 2023-05-122 | 12 | India |
| M8345404AA208 | 2023-04-115 | 12 | IN |
| M8345404AA208 | 2022-07-200 | 10 | US |
| M8345404AA208 | 2022-07-195 | 2 | US |
| M8345404AA208 | 2022-07-194 | 2 | US |
| 5940-01-109-7472 | 2022-06-180 | 10 | US |
| M8345404AA208 | 2022-06-164 | 3300 | United States |
| 5940-01-109-7472 | 2022-05-145 | 1 | US |
| 5940-01-109-7472 | 2022-05-145 | 5 | US |
| M8345404AA208 | 2022-01-17 | 3 | US |
| M8345404AA208 | 2022-01-17 | 3 | US |
| MILT834544 | 2021-08-217 | 25 | US |
| 5940-01-109-7472 | 2021-03-82 | 2 | UK |
| M8345404AA208 | 2019-08-235 | 2 | us |
| 5940-01-109-7472 | 2019-07-204 | 25 | Canada |
| BACS53B1EA2 | 2019-04-95 | 5 | FR |
| 5940-01-109-7472 | 2019-01-24 | 36 | us |
| BACS53B1EA2 | 2017-10-296 | 16 | United States |
| BACS53B1EA2 | 2017-10-296 | 56 | United States |
| BACS53B1EA2 | 2017-10-296 | 120 | United States |
| BACS53B1EA2 | 2017-10-296 | 232 | United States |
| 5940-01-109-7472 | 2015-12-356 | 3 | United States |
| M8345404AA208 | 2015-08-237 | 5 | United States |
| M8345404AA208 | 2015-08-237 | 10 | United States |
| BACS53B1EA2 | 2014-01-20 | 25 | United States |
| BACS53B1EA2 | 2014-01-20 | 50 | United States |
| BACS53B1EA2 | 2014-01-20 | 100 | United States |
| BACS53B1EA2 | 2014-01-20 | 200 | United States |
| 5940-01-109-7472 | 2013-12-336 | 695 | DIBBS |
| BACS53B1EA2 | 2013-12-336 | 1 | US |
| BACS53B1EA2 | 2013-12-336 | 1 | US |
| 5940-01-109-7472 | 2013-11-328 | 695 | DIBBS |
| 5940-01-109-7472 | 2013-09-269 | 11 | United States |
| 5940-01-109-7472 | 2013-09-254 | 360 | United States |
| M8345404AA208 | 2013-07-206 | 12 | us |
| M8345404AA208 | 2013-07-205 | 12 | us |
| 5940-01-109-7472 | 2013-02-52 | 15 | US |
| 5940-01-109-7472 | 2013-02-52 | 15 | US |
| 5940-01-109-7472 | 2013-02-44 | 836 | DIBBS |
| 5940-01-109-7472 | 2013-02-39 | 836 | DIBBS |
| 5940-01-109-7472 | 2012-10-303 | 300 | US |
| 5940-01-109-7472 | 2012-10-292 | 168 | DIBBS |
| VNS1924CA328 | 2012-10-285 | 14 | United States |
| 5940-01-109-7472 | 2011-07-199 | 173 | DIBBS |
| 5940-01-109-7472 | 2010-07-210 | 5 | United States |
| BACS53B1EA2 | 2010-07-210 | 5 | United States |
| 5940-01-109-7472 | 2010-05-145 | 124 | DIBBS |
| 5940-01-109-7472 | 2010-05-124 | 104 | DIBBS |
| BACS53B1EA2 | 2010-02-57 | 5 | United States |
| 5940-01-109-7472 | 2010-02-55 | 283 | DIBBS |
| 5940-01-109-7472 | 2006-02-39 | 628 | DIBBS |
Cross Reference | NSN 5940-01-109-7472
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-109-7472
Related Products | NSN 5940-01-109-7472
Technical Data | NSN 5940-01-109-7472
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A5A NONTUBULAR, ROUND |
| TERMINAL LENGTH | 0.094 INCHES |
| OVERALL HEIGHT | 1.890 INCHES |

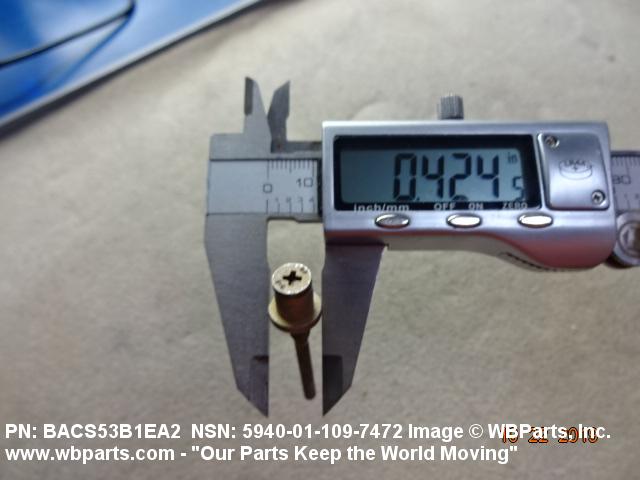

| OVERALL DIAMETER | 0.428 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | THREADED EXTERNAL SINGLE END |
| MOUNTING METHOD STYLE | D30 PRESS FIT |

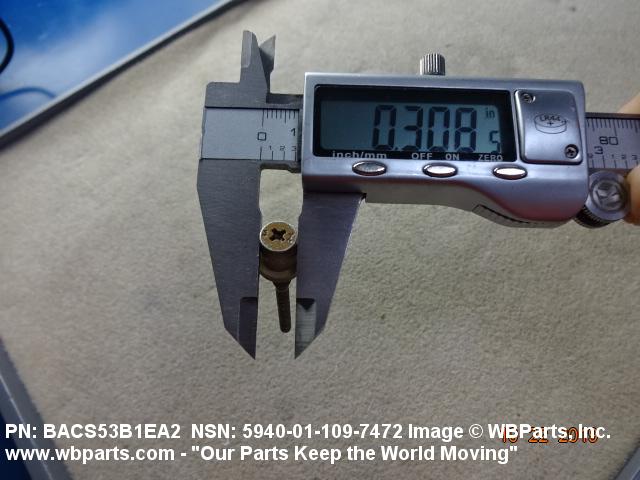

| MINOR BUSHING DIAMETER | 0.309 INCHES |
| MAJOR BUSHING DIAMETER | 0.428 INCHES |
| MINOR BUSHING LENGTH | 0.263 INCHES |
| MAJOR BUSHING LENGTH | 0.085 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL |
| FEATURES PROVIDED | MOUNTING HARDWARE |
| SPECIAL FEATURES | STUD WILL BE PAINTED OLIVE DRAB OVERALL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-83454/4 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83454/04-AA208 |
Restrictions/Controls & Freight Information | NSN 5940-01-109-7472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-109-7472
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
