NSN 5940-01-085-9907 M7928/1-36, M7928136, MIL-T-7928/1
Product Details | LUG TERMINAL

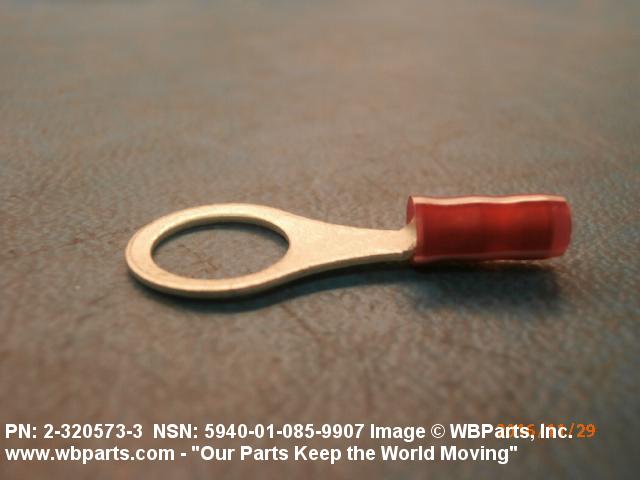

5940-01-085-9907 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: M7928/1-36, M7928136, MIL-T-7928/1, MILT79281, R71017, R71017N, 23205733, 2-320573-3, 5940-01-085-9907, 01-085-9907, 5940010859907, 010859907
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 NOV 1979 | 01-085-9907 | 00746 ( TERMINAL, LUG ) |

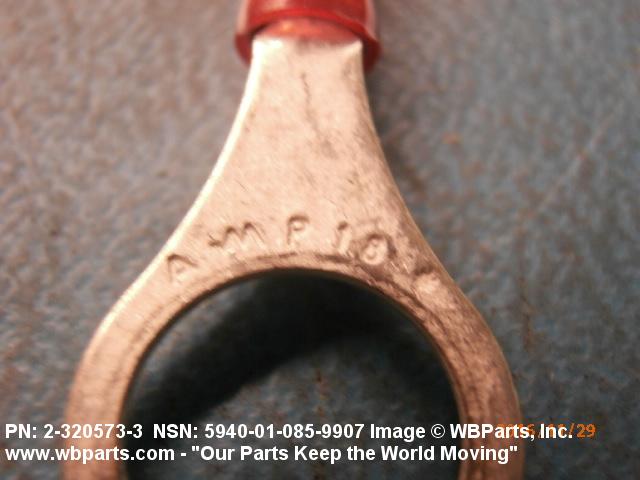

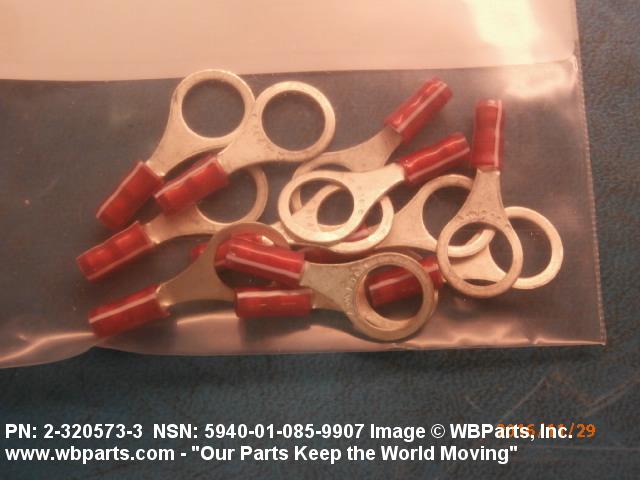

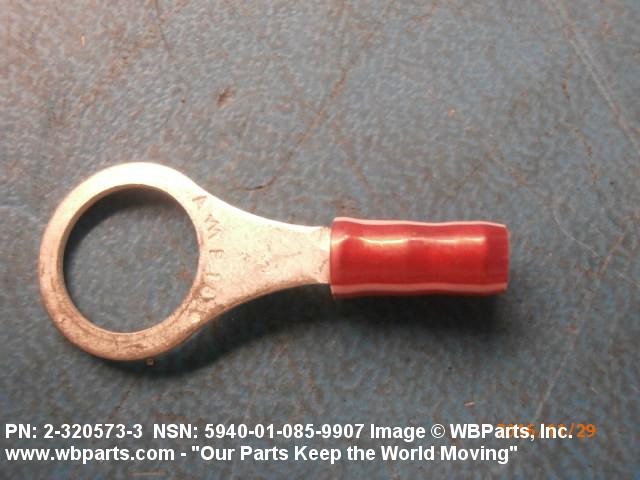

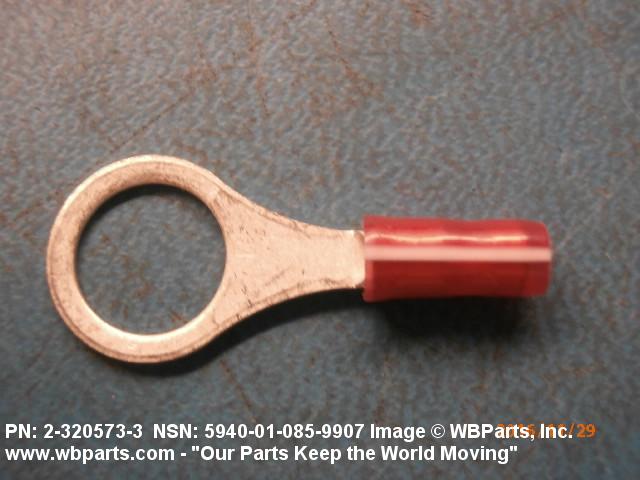

Drawings & Photos | NSN 5940-01-085-9907
Demand History | NSN 5940-01-085-9907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-085-9907 | 2016-11-328 | 12 | us |
Cross Reference | NSN 5940-01-085-9907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-320573-3 | 00779 | TYCO ELECTRONICS CORPORATION |
| M7928/1-36 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-7928/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| R71017 | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
| R71017N | 14726 | ELECTRO-TERM INC. DBA ELECTRO-TERM/HOLLINGSWORTH - |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-085-9907
Technical Data | NSN 5940-01-085-9907
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |

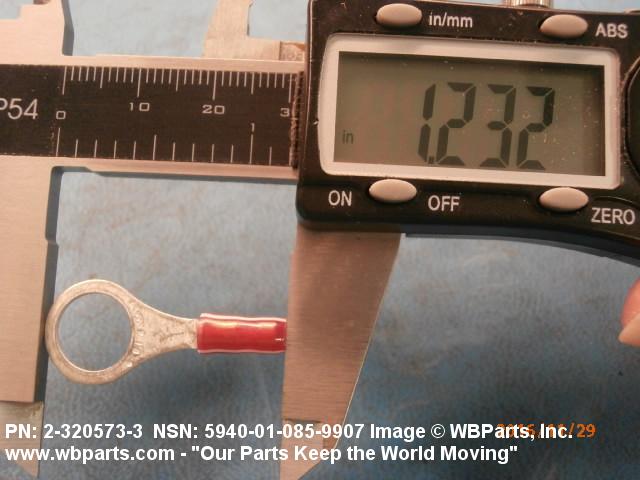

| OVERALL LENGTH | 1.366 INCHES |

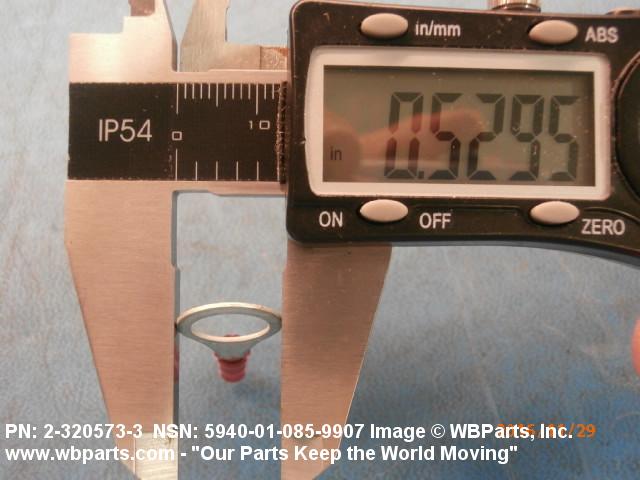

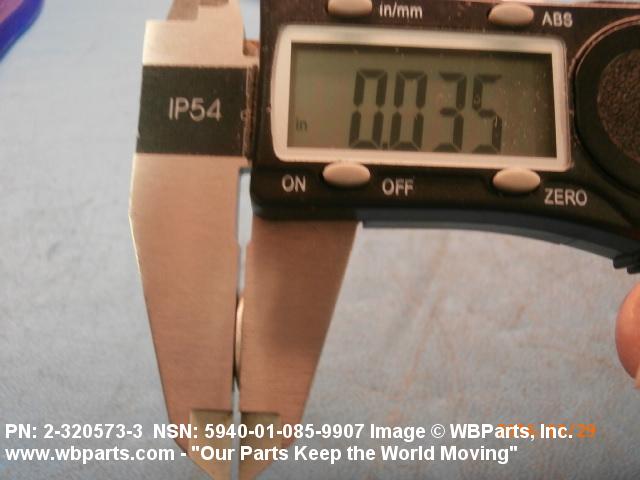

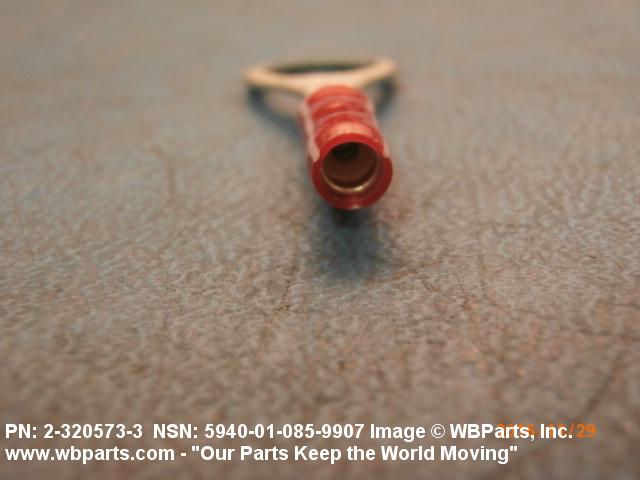

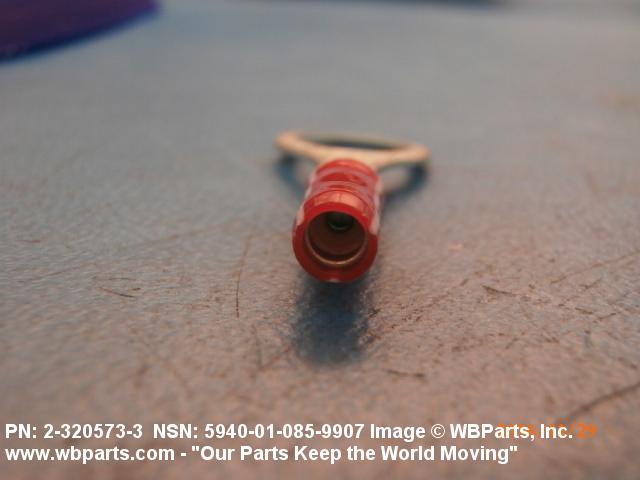

| OVERALL WIDTH | 0.530 INCHES |
| MATERIAL THICKNESS | 0.033 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |
| MOUNTING METHOD STYLE | D14 RING |

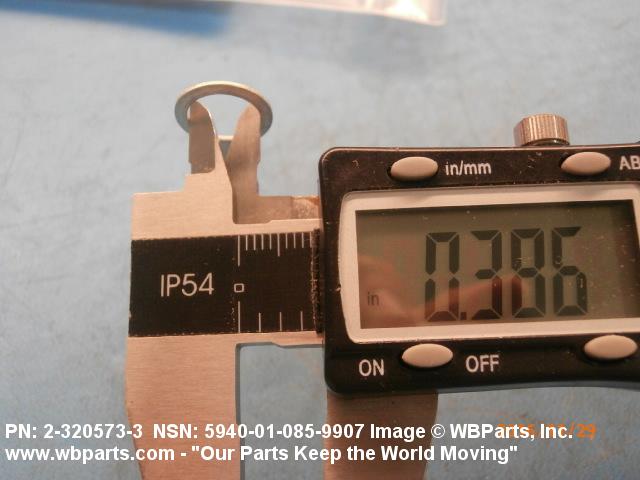

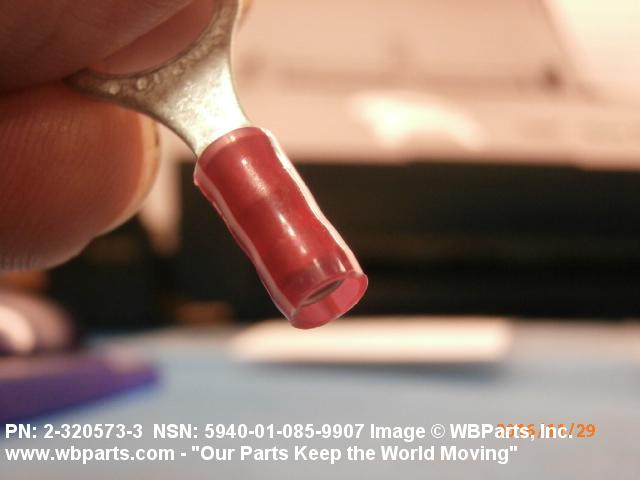

| MOUNTING HOLE DIAMETER | 0.391 INCHES |
| MOUNTING TONGUE WIDTH | 0.530 INCHES |
| MOUNTING FACILITY THICKNESS | 0.033 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
| SPECIAL FEATURES | INCLUDES WHITE RING OR STRIPES ON THE INSULATION PORTION OF THE TERMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-7928/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7928/1-36 |
