NSN 5940-01-083-8784 MS27212, MS2721212, MS27212-1-2
Product Details | TERMINAL BOARD

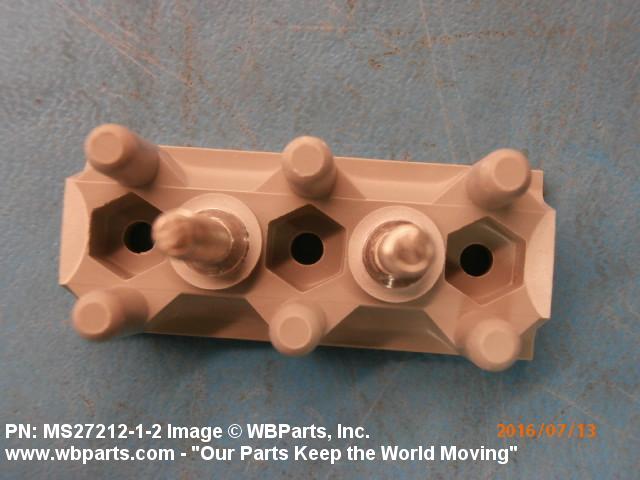

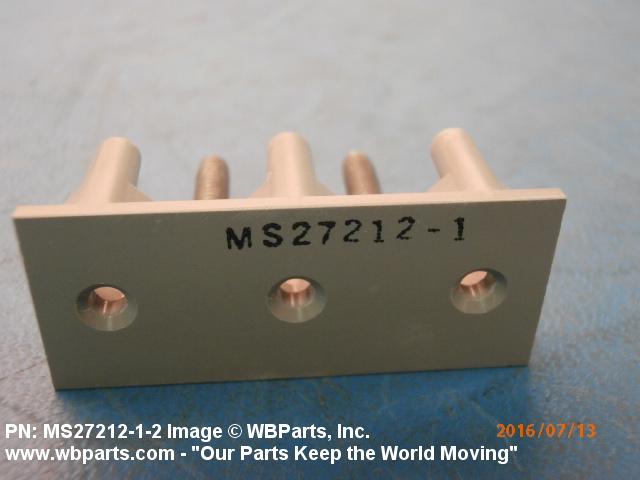

5940-01-083-8784 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS27212, MS2721212, MS27212-1-2, 5940-01-083-8784, 01-083-8784, 5940010838784, 010838784
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 03 OCT 1979 | 01-083-8784 | 00404 ( TERMINAL BOARD ) |
Demand History | NSN 5940-01-083-8784
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS2721212 | 2021-02-16 | 1 | United States |
MS2721212 | 2016-07-08 | 2 | United States |
MS2721212 | 2015-02-05 | 52 | US |
MS2721212 | 2012-08-21 | 8 | United States |
MS27212 | 2007-11-14 | 1 | United States |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5940-01-083-8784
Technical Data | NSN 5940-01-083-8784
Characteristic | Specifications |
---|---|
MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER BOARD STEEL COMP 303 TERMINALS |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833 MIL SPEC ALL MATERIAL RESPONSES BOARD QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE TERMINALS |
BODY STYLE | A9 STRIP TYPE |

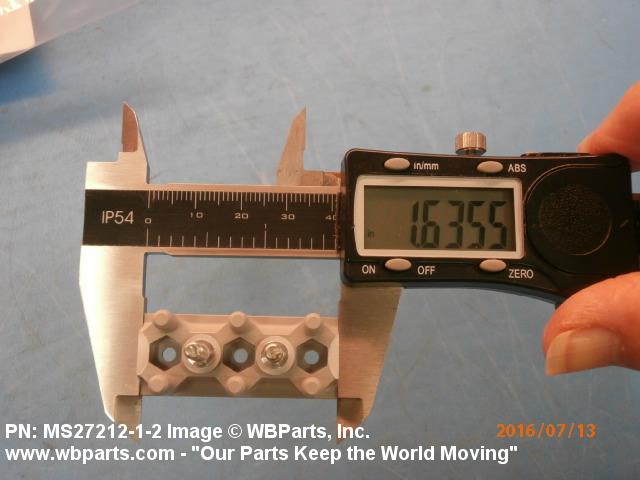

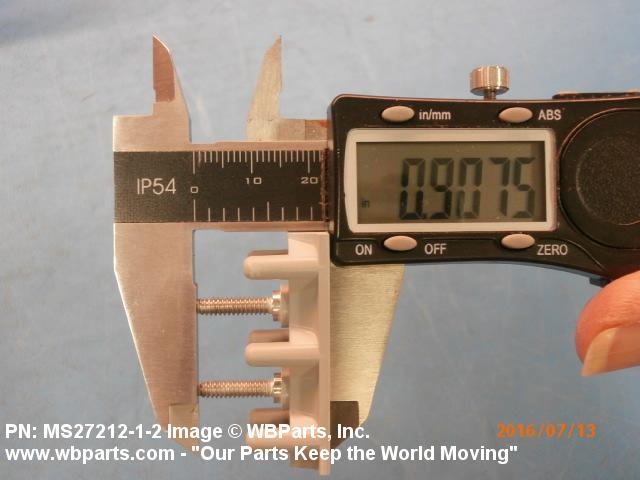

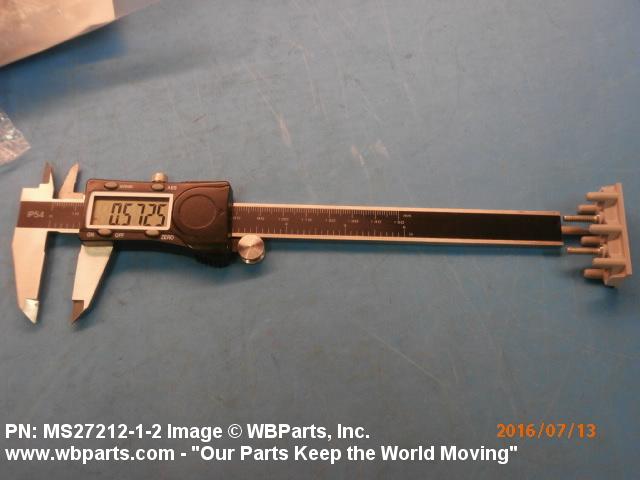

BOARD OVERALL LENGTH | 1.232 INCHES |

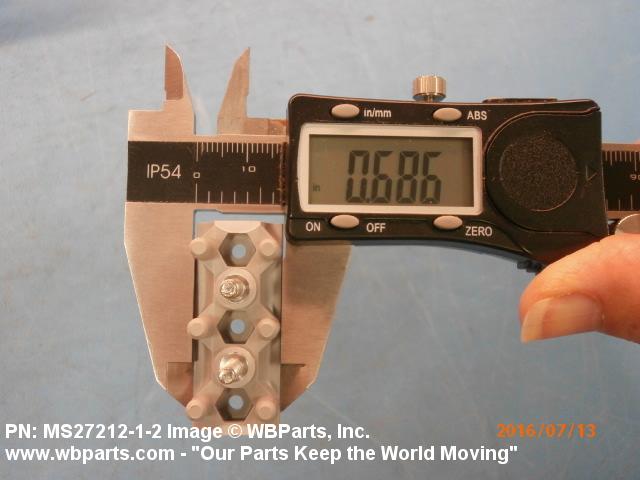

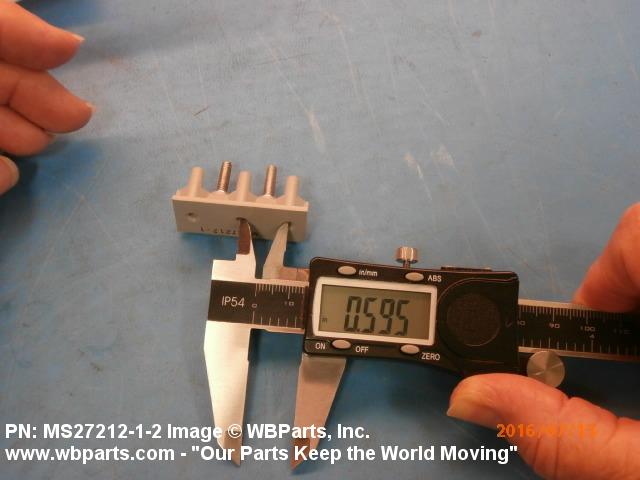

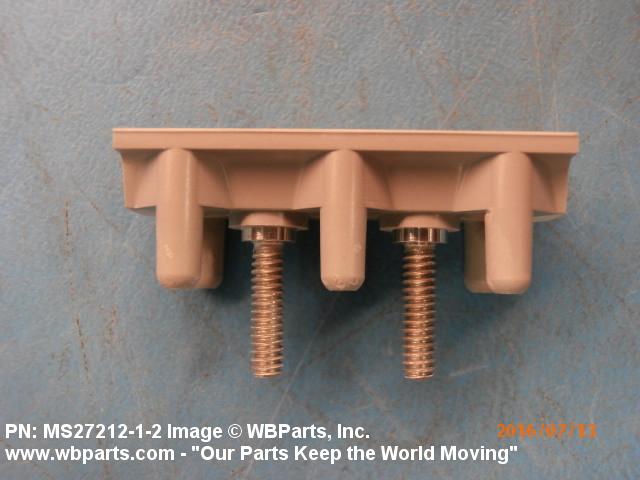

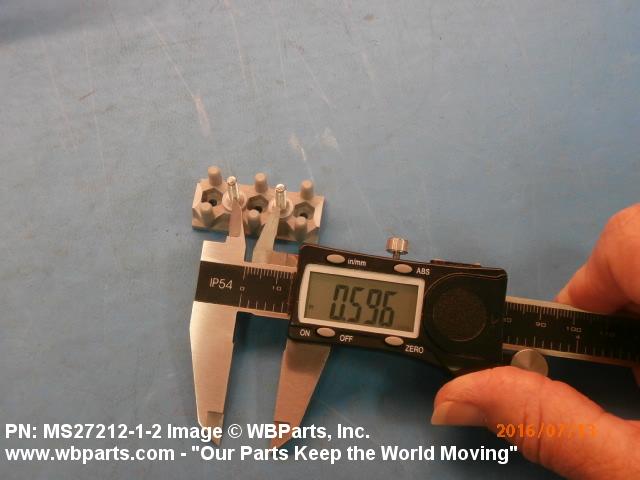

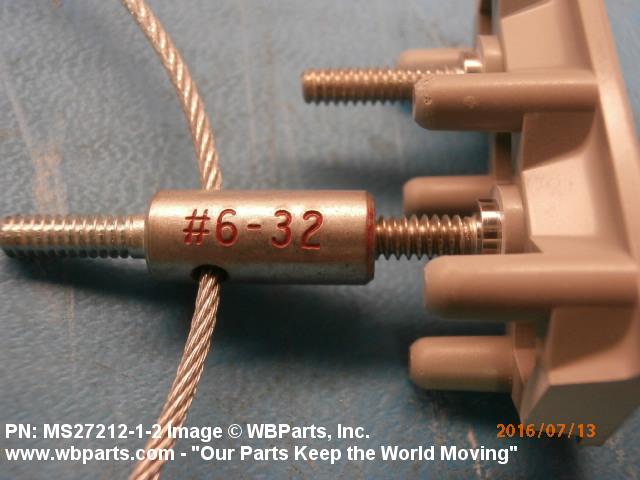

BOARD OVERALL WIDTH | 0.688 INCHES |
BOARD THICKNESS | 0.071 INCHES |
TERMINAL PATTERN ARRANGEMENT | MULTI-ROW |
TERMINAL ROW QUANTITY | 2 |
DISTANCE BETWEEN TERMINAL ROW CENTERS | 0.350 INCHES |
TERMINAL DESIGN | NONFEEDTHRU |
NONFEEDTHRU TERMINAL TYPE | 439 SINGLE |
NONFEEDTHRU TERMINAL QUANTITY | 2 SINGLE |
BOARD CONSTRUCTION | SOLID CONSTRUCTION |
MANUFACTURERS CODE | 96906 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212 |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-1-2 |
