NSN 5940-01-079-1647 MS251811, MS25181-1, M7928/5-3
Product Details | CONDUCTOR SPLICE
5940-01-079-1647 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: MS251811, MS25181-1, M7928/5-3, M792853, A30893011, A3089301-1, AMP320559, AS7928, MIL-T-7928/5, MILT79285, R2174P1, VD102, YSE18H4, 10138070 , 12445961, 1244596-1, 1548, 1819351, 181935-1, 26187361, 2618736-1, 2BA949, 320559, 3205590, 320559-0, 4110009005, 411-0009-005, 69B375353, 69B37535-3, 7081693 , 91566315, 971.31.32.602 , 9713132602, 99252501, 992525-01, 5940-01-079-1647, 01-079-1647, 5940010791647, 010791647
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JUN 1979 | 01-079-1647 | 00137 ( SPLICE, CONDUCTOR ) |

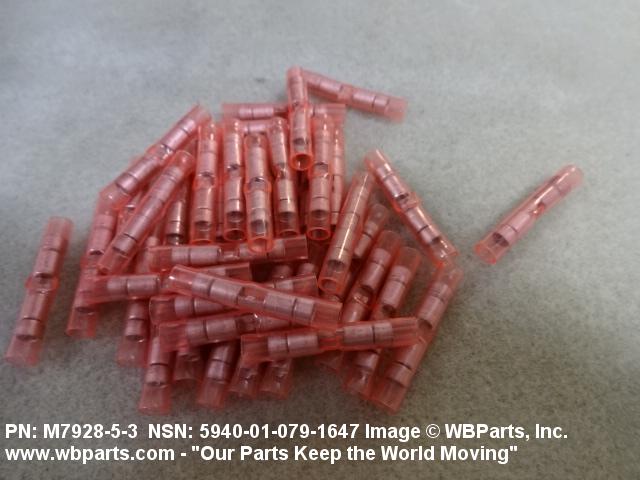

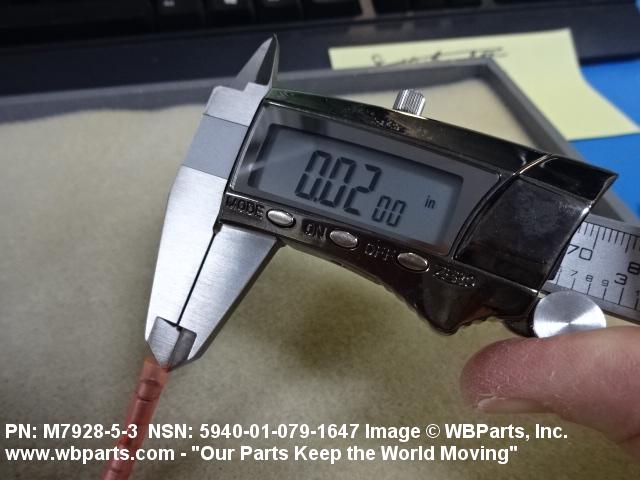

Drawings & Photos | NSN 5940-01-079-1647
Demand History | NSN 5940-01-079-1647
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 320559 | 2023-11-318 | 300 | US |
| 5940-01-079-1647 | 2023-10-293 | 400 | Germany |
| 320559 | 2023-08-229 | 600 | US |
| M792853 | 2023-07-208 | 100 | United Arab Emirates |
| 5940-01-079-1647 | 2023-05-128 | 500 | KE |
| 320559 | 2022-12-361 | 45 | Saudi Arabia |
| 5940-01-079-1647 | 2022-12-361 | 45 | MANUAL |
| 320559 | 2022-01-31 | 20 | us |
| 5940-01-079-1647 | 2022-01-12 | 334 | United States |
| MS251811 | 2021-04-120 | 289 | Malaysia |
| 5940-01-079-1647 | 2021-04-108 | 289 | MY |
| MS251811 | 2020-09-267 | 194 | United States |
| MS251811 | 2020-09-267 | 194 | United States |
| MS251811 | 2020-08-226 | 194 | United States |
| MS251811 | 2020-05-129 | 500 | AE |
| MS251811 | 2020-04-111 | 500 | AE |
| 320559 | 2019-07-204 | 43555 | US |
| 320559 | 2019-07-183 | 4500 | US |
| 320559 | 2018-09-261 | 50 | United Arab Emirates |
| 5940-01-079-1647 | 2018-01-02 | 50 | Malaysia |
| 5940-01-079-1647 | 2017-12-353 | 50 | MY |
| 5940-01-079-1647 | 2017-10-283 | 74 | Malaysia |
| MS25181-1 | 2017-02-52 | 100 | Philippines |
| MS25181-1 | 2017-02-52 | 100 | Philippines |
| 5940-01-079-1647 | 2015-11-307 | 100 | Malaysia |
| MS25181-1 | 2015-10-282 | 5 | United States |
| 5940-01-079-1647 | 2015-09-246 | 18 | Malaysia |
| 5940-01-079-1647 | 2015-09-246 | 30 | Malaysia |
| MS25181-1 | 2015-05-139 | 100 | United States |
| 320559 | 2015-03-75 | 50 | United States |
| 320559 | 2015-02-34 | 1000 | TH |
| 320559 | 2014-08-239 | 105 | US |
| AS7928 | 2014-05-140 | 4 | United States |
| MS251811 | 2013-10-284 | 5000 | CY |
| 320559 | 2013-05-134 | 50 | CZ |
| M7928/5-3 | 2012-10-279 | 1000 | |
| M7928/5-3 | 2012-09-249 | 10 | |
| 320559 | 2012-08-233 | 4000 | Netherlands |
| M792853 | 2012-08-233 | 4000 | Netherlands |
| 5940-01-079-1647 | 2011-07-188 | 15 | US |
| 320559 | 2011-05-137 | 200 | Spain |
| 5940-01-079-1647 | 2010-05-133 | 437 | DIBBS |
| 5940-01-079-1647 | 2010-03-88 | 90 | Hong Kong |
| 5940-01-079-1647 | 2010-03-85 | 2167 | DIBBS |
| 5940-01-079-1647 | 2010-02-53 | 2167 | DIBBS |
| 5940-01-079-1647 | 2010-01-14 | 90 | Hong Kong |
| 5940-01-079-1647 | 2010-01-06 | 83 | DIBBS |
| 5940-01-079-1647 | 2009-01-26 | 967 | DIBBS |
| MS251811 | 2009-01-01 | 30 | US |
| 5940-01-079-1647 | 2008-12-339 | 250 | Philippines |
| 5940-01-079-1647 | 2008-12-339 | 250 | Philippines |
| 5940-01-079-1647 | 2008-11-325 | 866 | DIBBS |
| MS251811 | 2008-03-63 | 200 | Sri Lanka |
| MS251811 | 2008-01-09 | 250 | IT |
| 320559 | 2006-07-186 | 200 | United Kingdom |
Cross Reference | NSN 5940-01-079-1647
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1244596-1 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 1244596-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 1548 | 83330 | DIALIGHT CORPORATION |
| 1548 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 181935-1 | 71791 | CURTISS-WRIGHT CONTROLS, INC. DIV FLIGHT SYSTEMS |
| 2618736-1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2BA949 | 45152 | OSHKOSH CORPORATION |
| 320559 | 00779 | TYCO ELECTRONICS CORPORATION |
| 320559 | 13511 | AMPHENOL CADRE DIV BUNKER RAMO CORP |
| 320559 | 74868 | AMPHENOL CORPORATION |
| 320559 | D8512 | TYCO ELECTRONICS AMP GMBH |
| 320559 | K1010 | TE CONNECTIVITY LIMITED |
| 320559 | K6074 | ACTIVE ELECTRONICS PLC |
| 320559-0 | D8512 | TYCO ELECTRONICS AMP GMBH |
| 411-0009-005 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 69B37535-3 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| 7081693 | C7535 | KRAUSS-MAFFEI WEGMANN GMBH & CO. KGGESCHAEFTSBEREICH SERVICE |
| 91566315 | F6481 | THALES SA |
| 971.31.32.602 | S4080 | PILATUS AIRCRAFT LTD |
| 992525-01 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| A3089301-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| AMP320559 | K1010 | TE CONNECTIVITY LIMITED |
| AMP320559 | K1636 | TYCO ELECTRONICS UK LTD |
| AS7928 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M7928/5-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M7928/5-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-7928/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25181-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R2174P1 | 23991 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| VD102 | 50792 | TYLER MACHINERY CO INC |
| YSE18H4 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-01-079-1647
Related Products | NSN 5940-01-079-1647
Technical Data | NSN 5940-01-079-1647
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A30 CRIMP |
| OVERALL LENGTH | 1.300 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL ALL ENDS |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 18 AWG |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
| MATERIAL | PLASTIC INSULATION COPPER OR COPPER ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-01-079-1647
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-01-079-1647
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
