NSN 5940-01-025-9584 128543, N20, 01-025-9584
Product Details | CONDUCTOR SPLICE

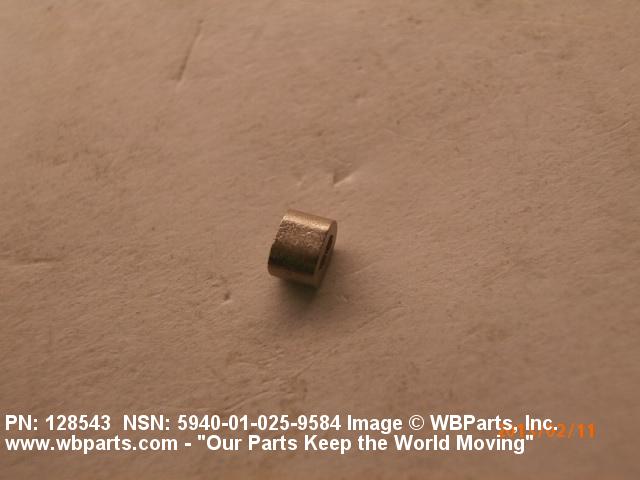

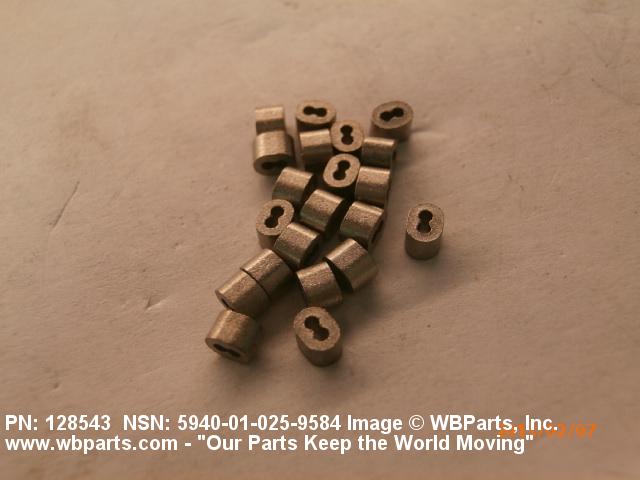

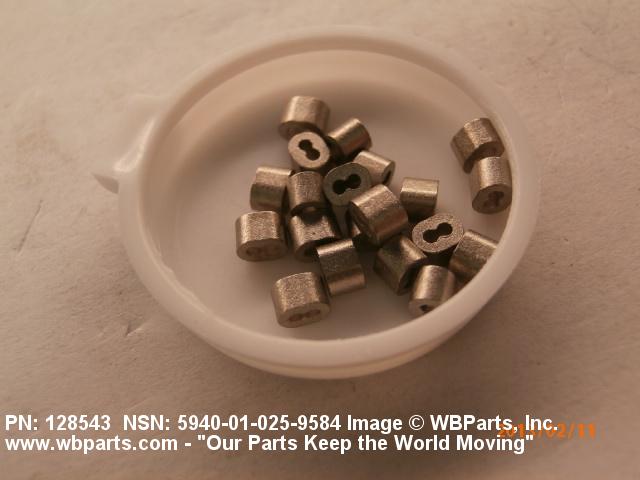

5940-01-025-9584 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: 128543, N20, 5940-01-025-9584, 01-025-9584, 5940010259584, 010259584
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12-AUG-76 | 01-025-9584 | 00137 ( SPLICE, CONDUCTOR ) |

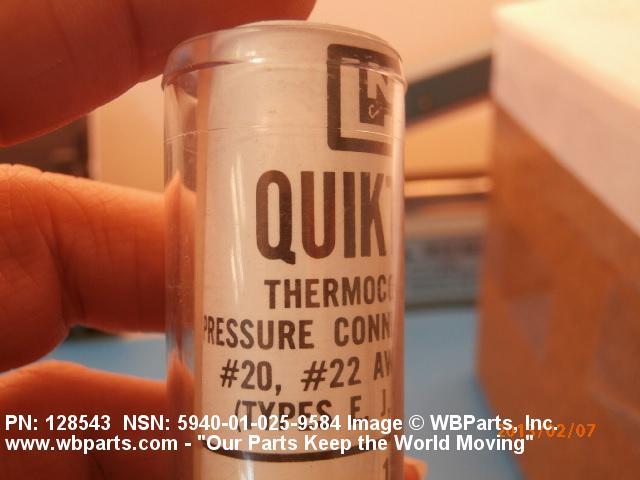

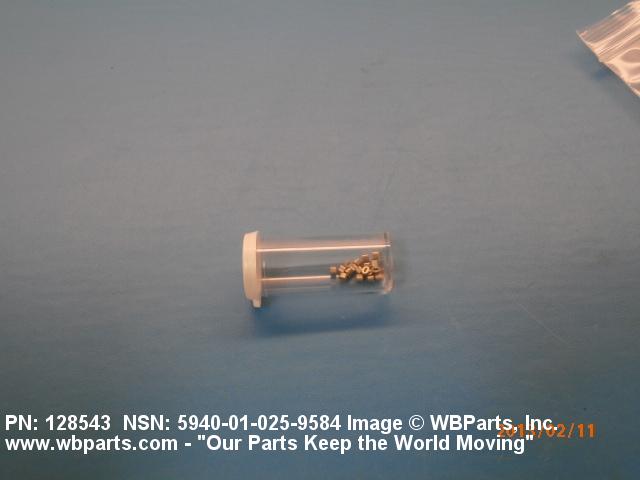

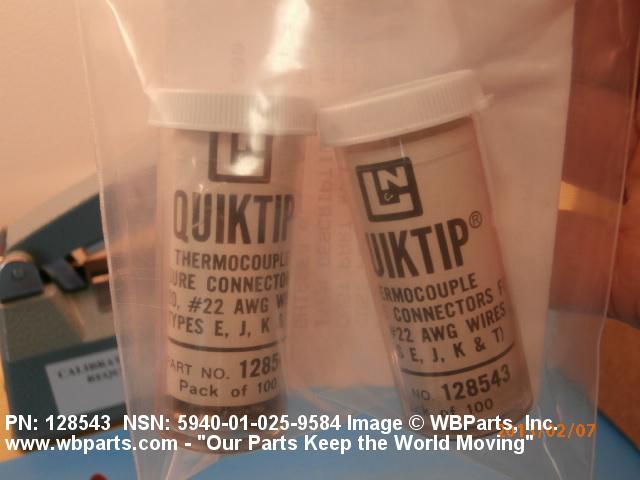

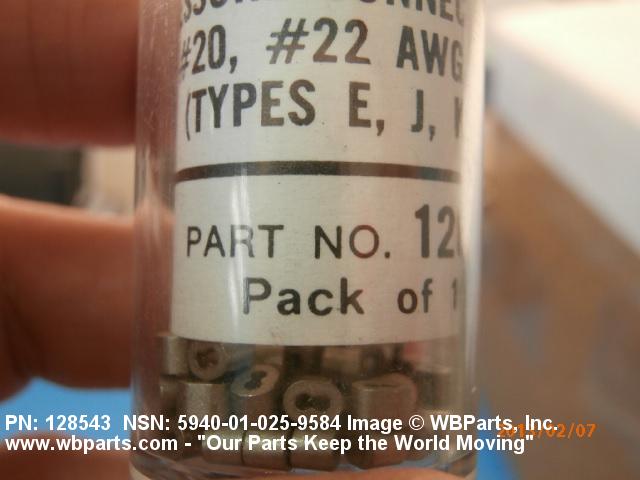

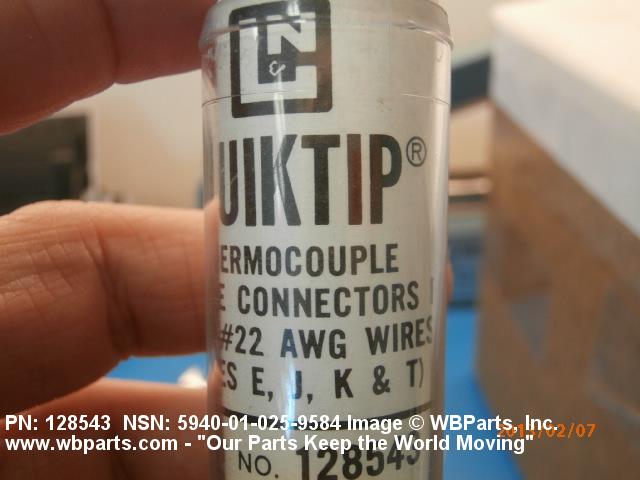

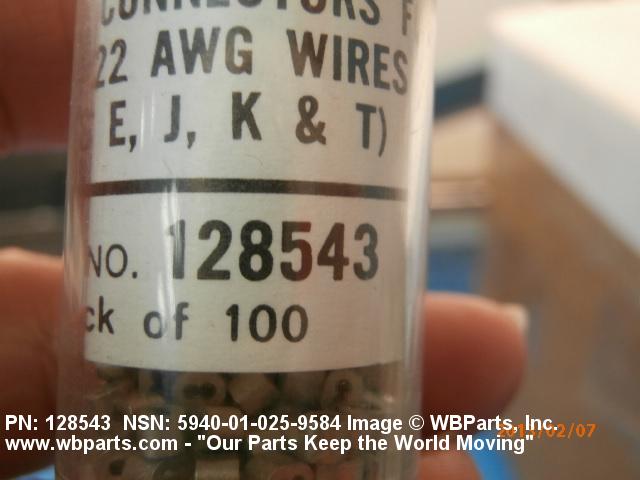

Drawings & Photos | NSN 5940-01-025-9584
Demand History | NSN 5940-01-025-9584
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-025-9584 | 2020-09-267 | 1000 | United States |
| 5940-01-025-9584 | 2013-06-163 | 500 | United States |
| 5940-01-025-9584 | 2013-01-24 | 200 | United States |
| 5940-01-025-9584 | 2010-11-315 | 1 | IT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-025-9584
Technical Data | NSN 5940-01-025-9584
| Characteristic | Specifications |
|---|---|

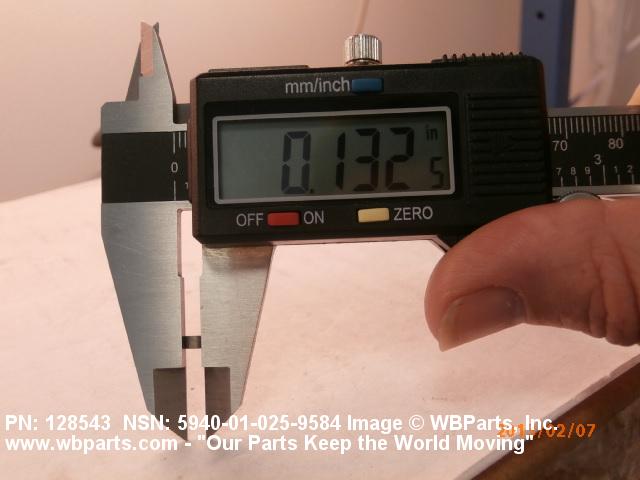

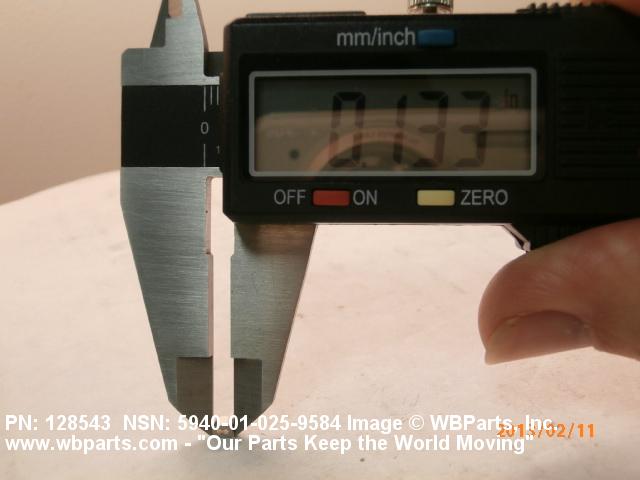

| OVERALL LENGTH | 0.130 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 20 AWG |
| MATERIAL | NICKEL CONDUCTOR ACCOMMODATION |
| MANUFACTURERS CODE | 31922 |
| DESIGN CONTROL REFERENCE | 128543 |
Restrictions/Controls & Freight Information | NSN 5940-01-025-9584
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
