NSN 5940-01-005-4733 MS27212112, MS27212-1-12, AS27212
Product Details | TERMINAL BOARD
5940-01-005-4733 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS27212112, MS27212-1-12, AS27212, 8014641, 801464-1 , 5940-01-005-4733, 01-005-4733, 5940010054733, 010054733
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUN 1975 | 01-005-4733 | 00404 ( TERMINAL BOARD ) |

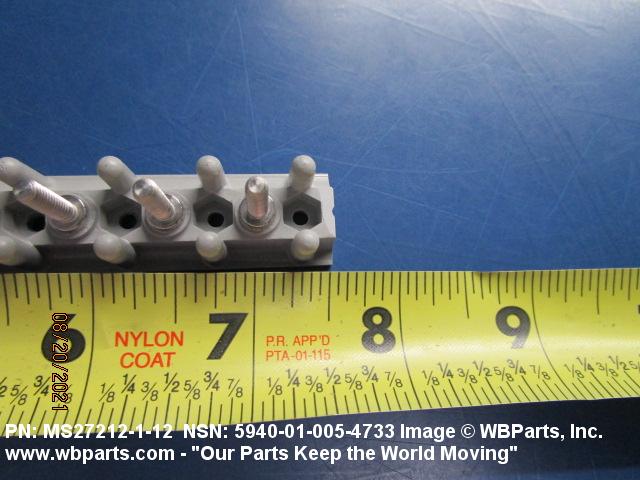

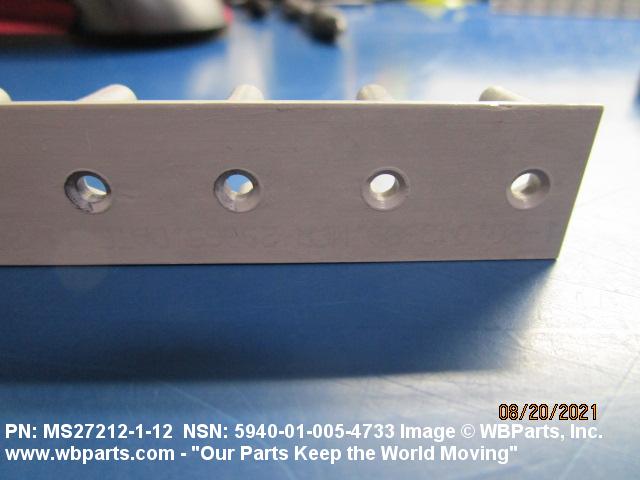

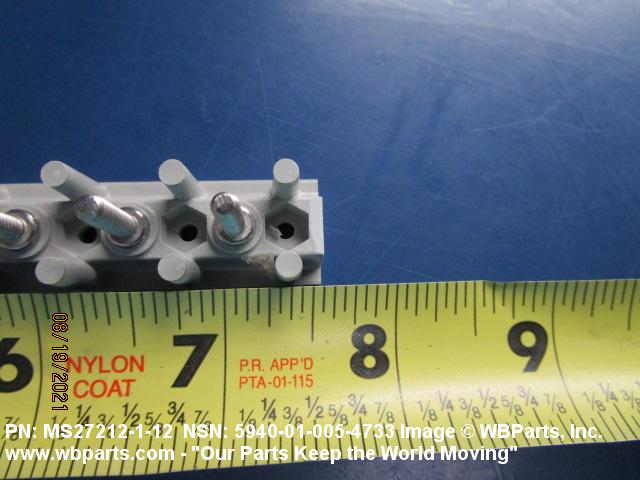

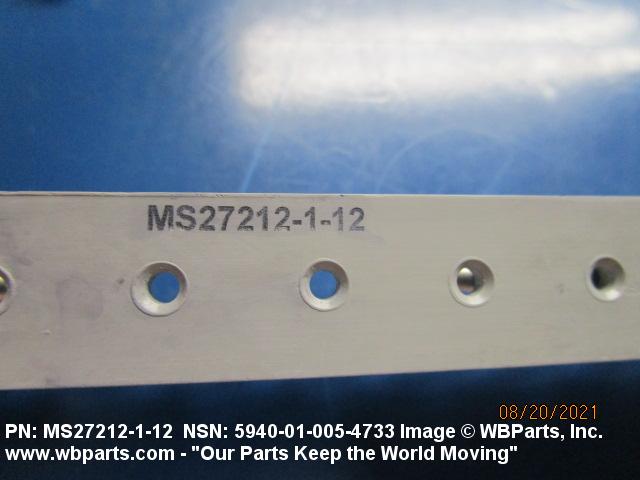

Drawings & Photos | NSN 5940-01-005-4733
Demand History | NSN 5940-01-005-4733
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-01-005-4733 | 2018-02-37 | 173 | DIBBS |
| 5940-01-005-4733 | 2014-07-208 | 104 | DIBBS |
| 5940-01-005-4733 | 2014-07-199 | 60 | DIBBS |
| 5940-01-005-4733 | 2014-07-191 | 60 | DIBBS |
| MS27212112 | 2012-04-96 | 1 | us |
| MS27212112 | 2012-01-16 | 1 | United States |
| MS27212112 | 2011-02-46 | 8 | US |
| MS27212112 | 2010-05-147 | 10 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-01-005-4733
Technical Data | NSN 5940-01-005-4733
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC DIALLYL PHTHALATE AND GLASS FIBER BOARD STEEL CORROSION RESISTING TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-19833 MIL SPEC ALL MATERIAL RESPONSES BOARD |

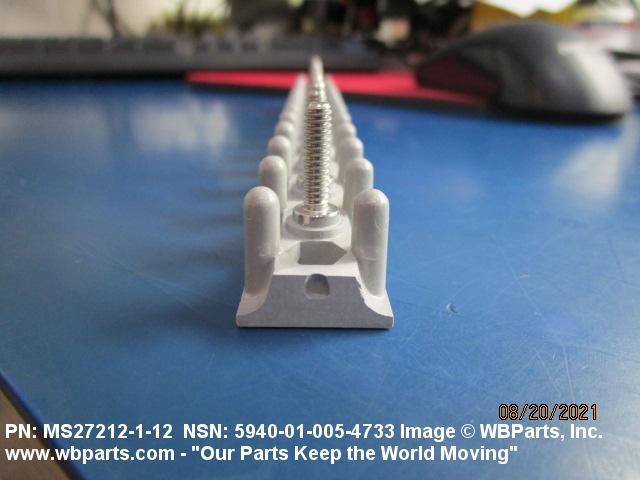

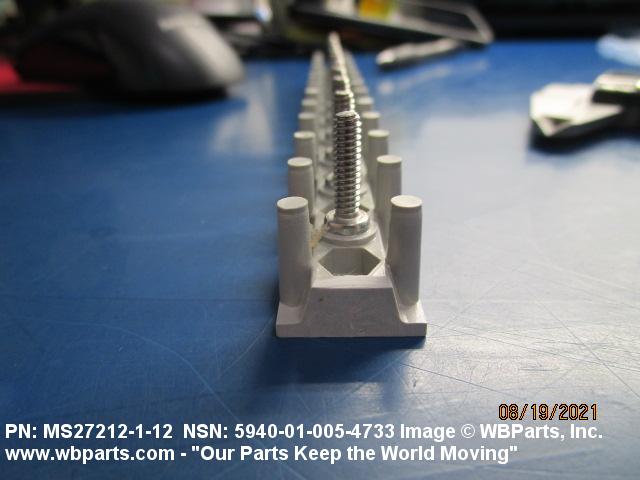

| BODY STYLE | A14 BARRIER STANDOFF |

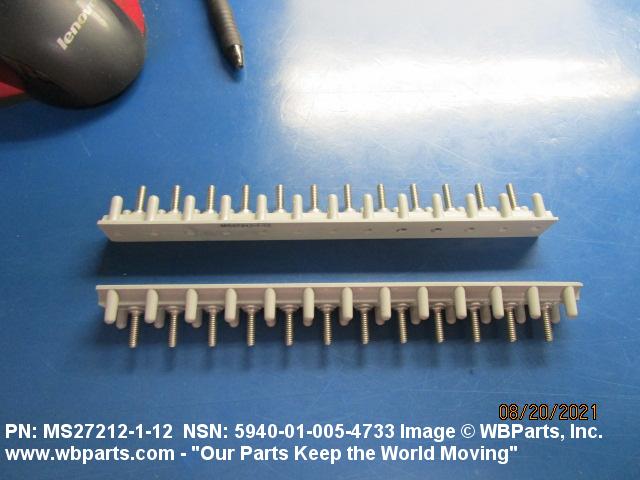

| BOARD OVERALL LENGTH | 7.564 INCHES |

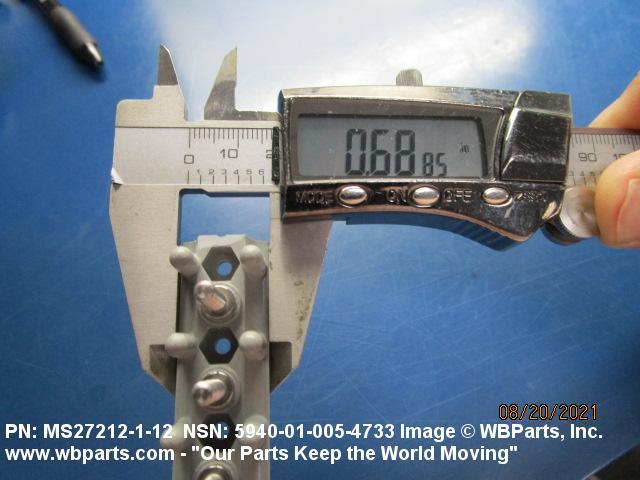

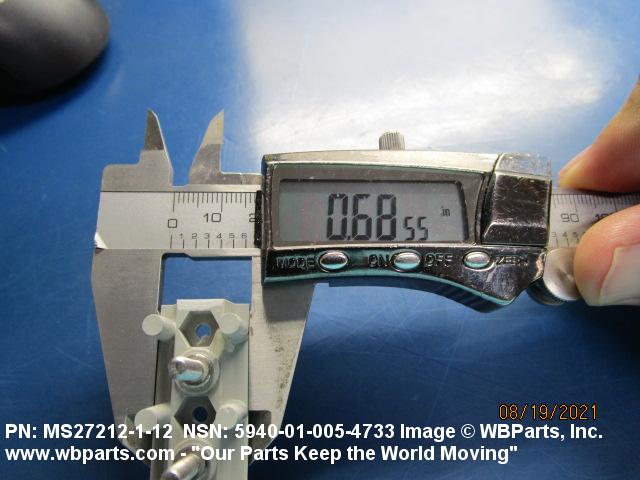

| BOARD OVERALL WIDTH | 0.688 INCHES |

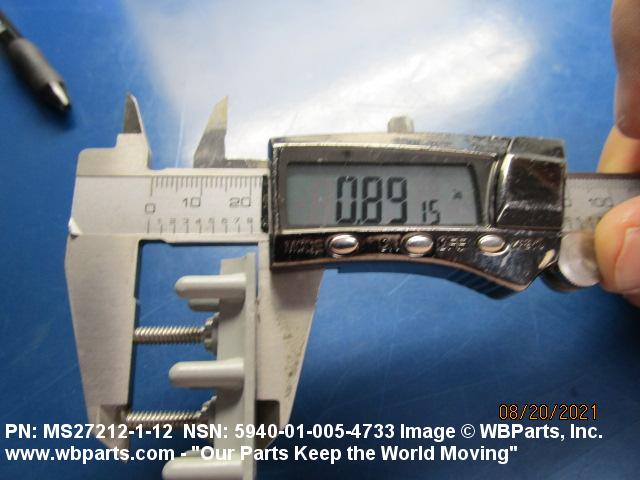

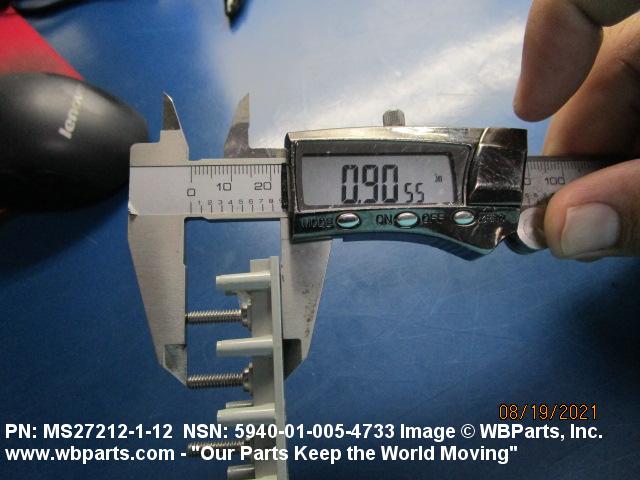

| BOARD OVERALL HEIGHT | 0.953 INCHES |

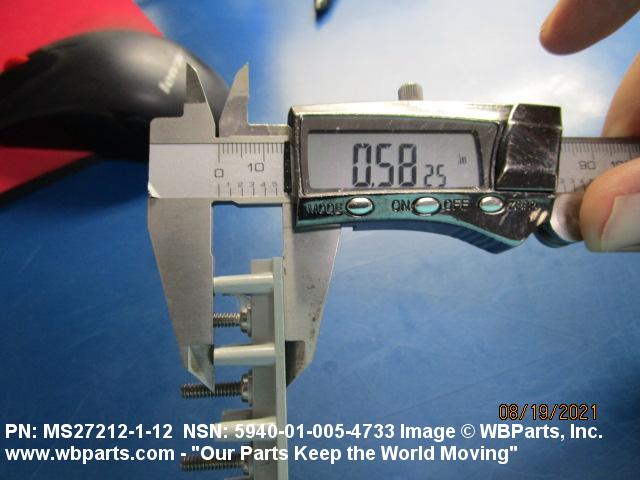

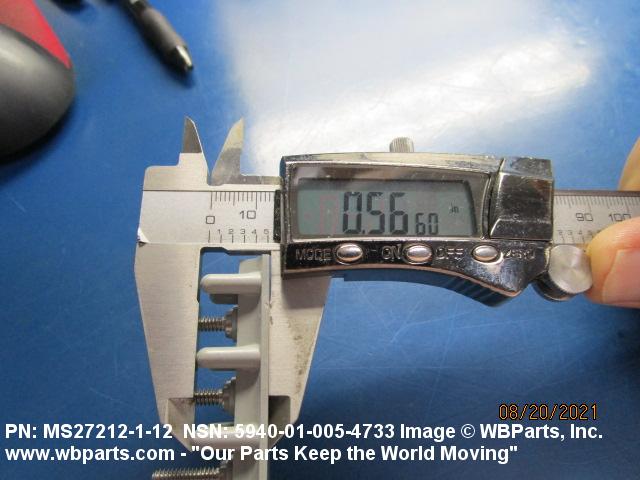

| BOARD HEIGHT EXCLUDING TERMINALS | 0.580 INCHES |
| BASE THICKNESS | 0.275 INCHES |

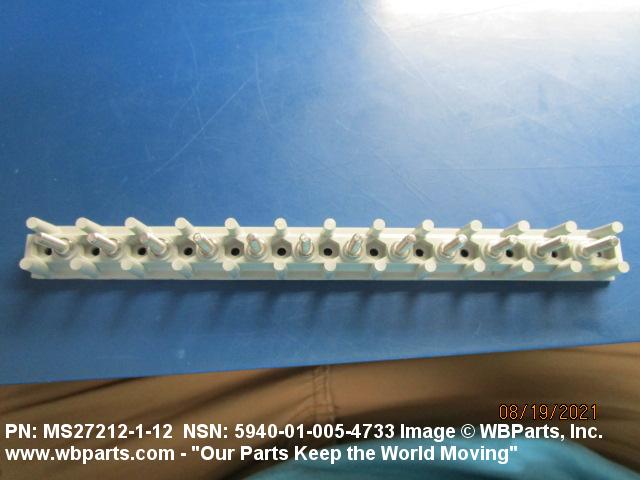

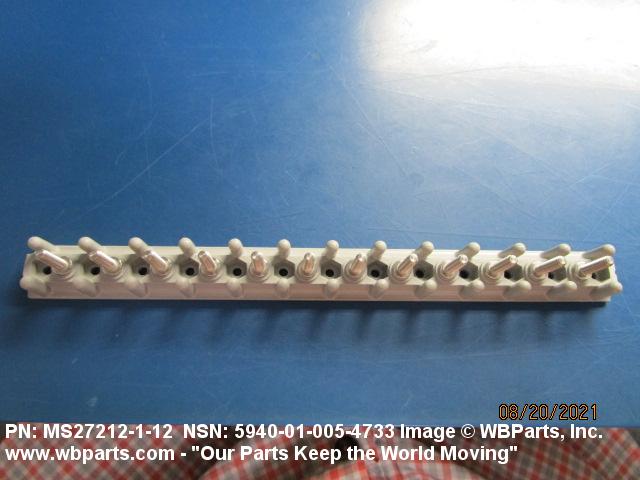

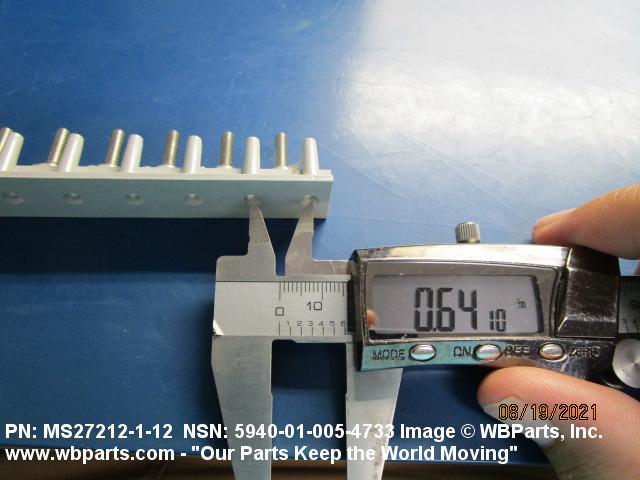

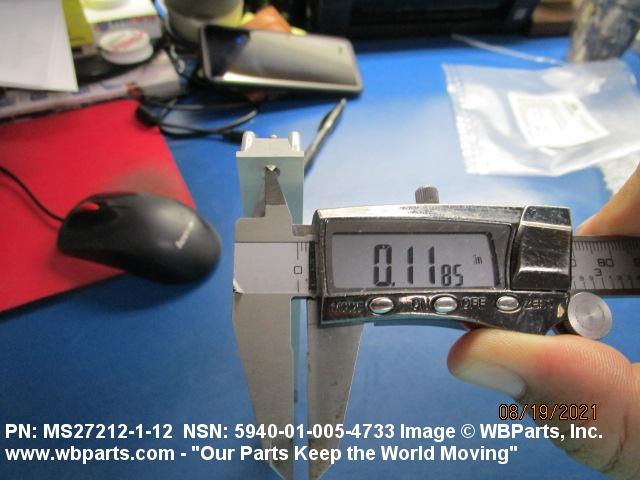

| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.594 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 12 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 13 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.594 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.344 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.218 INCHES |
| MOUNTING HOLE DIAMETER | 0.115 INCHES |
| MANUFACTURERS CODE | 96906 |

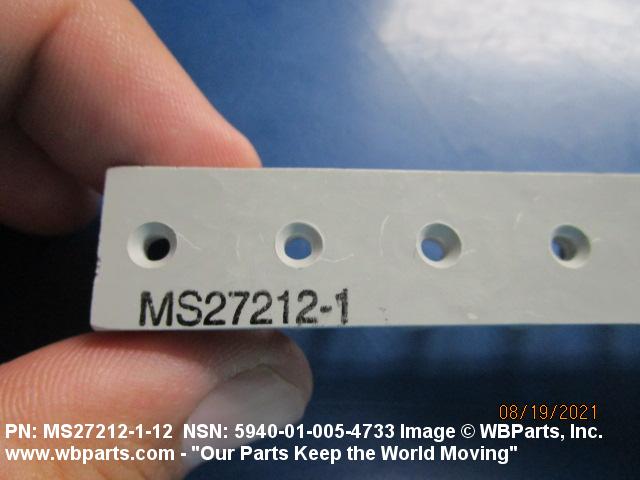

| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27212-1-12 |
