NSN 5940-00-995-3413 NA154N, NA15-4N, 00-995-3413
Product Details | LUG TERMINAL
5940-00-995-3413 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: NA154N, NA15-4N, 5940-00-995-3413, 00-995-3413, 5940009953413, 009953413
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-995-3413 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-995-3413
Cross Reference | NSN 5940-00-995-3413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA15-4N | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-995-3413
Technical Data | NSN 5940-00-995-3413
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A27 MECHANICAL COMPRESSION |
| OVERALL LENGTH | 5.250 INCHES |
| OVERALL WIDTH | 2.750 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | DOUBLE COMPRESSION CLAMP SINGLE END |
| LARGEST WIDTH | 2.750 INCHES SINGLE END |

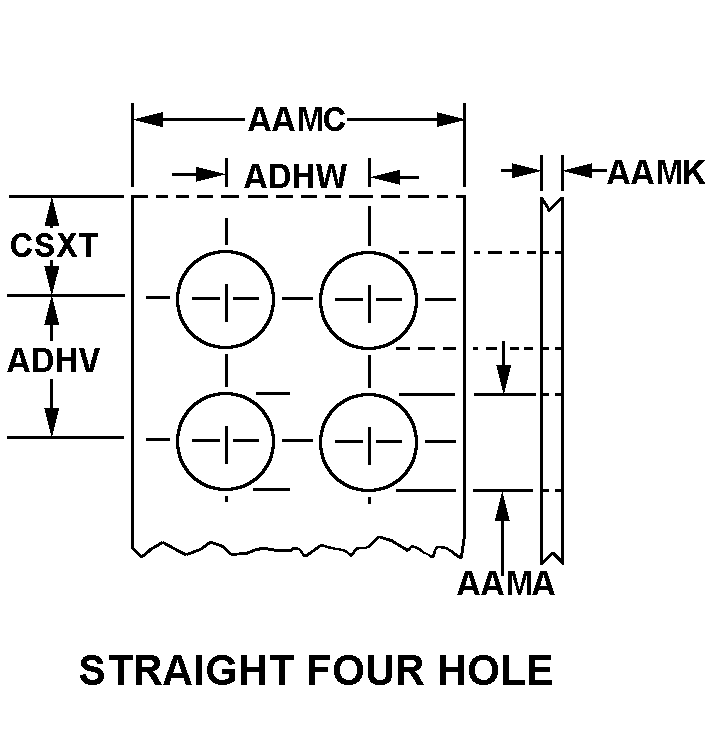

| MOUNTING METHOD STYLE | D13 STRAIGHT FOUR HOLE |
| MOUNTING HOLE DIAMETER | 0.562 INCHES |
| MOUNTING TONGUE WIDTH | 3.000 INCHES |
| MOUNTING FACILITY THICKNESS | 0.375 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.750 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.750 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.625 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER CONDUCTOR ACCOMMODATION COPPER MOUNTING FACILITY |
| SPECIAL FEATURES | NPS 1 IN.,1 |
Restrictions/Controls & Freight Information | NSN 5940-00-995-3413
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
