NSN 5940-00-993-8817 ST21940043102, ST21940043-102, 10015899002
Product Details | LUG TERMINAL
5940-00-993-8817 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: ST21940043102, ST21940043-102, 10015899002, 10015899-002, 208036, 20803-6, 502, 502144, 502-144, 5026, 502-6, 5940-00-993-8817, 00-993-8817, 5940009938817, 009938817, 101017501
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-993-8817 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-993-8817
Demand History | NSN 5940-00-993-8817
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 502144 | 2019-08-235 | 1 | Taiwan |
| 502144 | 2012-07-205 | 1 | US |
Cross Reference | NSN 5940-00-993-8817
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10015899-002 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 101017501 | 94468 | REGAL BELTING CO |
| 20803-6 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 502 | 79963 | ZIERICK MFG CORP |
| 502-144 | 79963 | ZIERICK MFG CORP |
| 502-6 | 79963 | ZIERICK MFG CORP |
| ST21940043-102 | 81395 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-993-8817
Technical Data | NSN 5940-00-993-8817
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A21 SOLDER |
| OVERALL LENGTH | 0.625 INCHES |
| OVERALL WIDTH | 0.312 INCHES |
| MATERIAL THICKNESS | 0.018 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SLANT LUG W/ONE HOLE SINGLE END |
| LARGEST WIDTH | 0.188 INCHES SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 11 AWG |

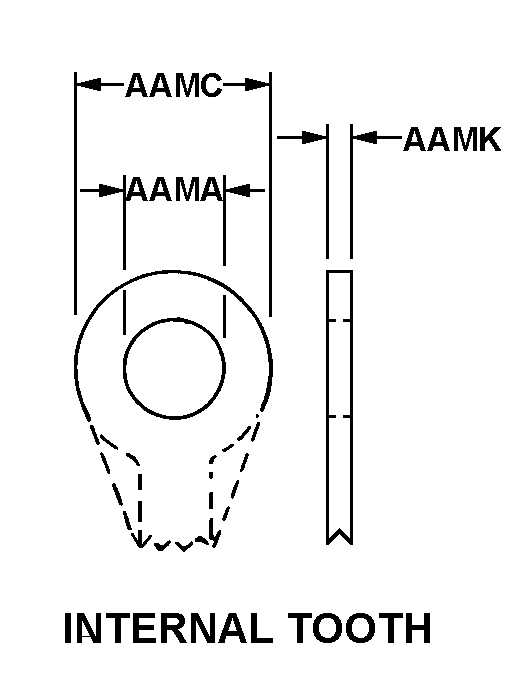

| MOUNTING METHOD STYLE | D14A INTERNAL TOOTH |
| MOUNTING HOLE DIAMETER | 0.144 INCHES |
| MOUNTING TONGUE WIDTH | 0.312 INCHES |
| MOUNTING FACILITY THICKNESS | 0.018 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | TIN OVERALL SINGLE LAYER |
| FEATURES PROVIDED | LOCKING DEVICE |
Restrictions/Controls & Freight Information | NSN 5940-00-993-8817
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-993-8817
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
