NSN 5940-00-950-1610 MS27212, MS2721212, MS27212-1-2
Product Details | TERMINAL BOARD
5940-00-950-1610 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: MS27212, MS2721212, MS27212-1-2, MS27212P, AS27212, AS27212120, AS27212-1-20, 5940-00-950-1610, 00-950-1610, 5940009501610, 009501610
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-950-1610 | 00404 ( TERMINAL BOARD ) |

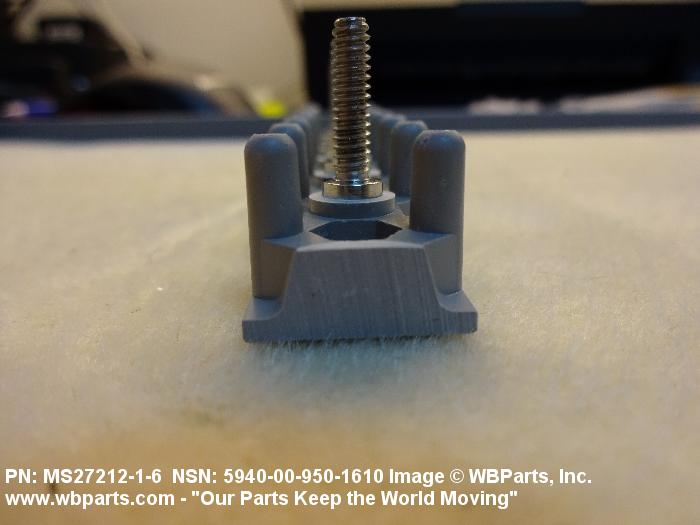

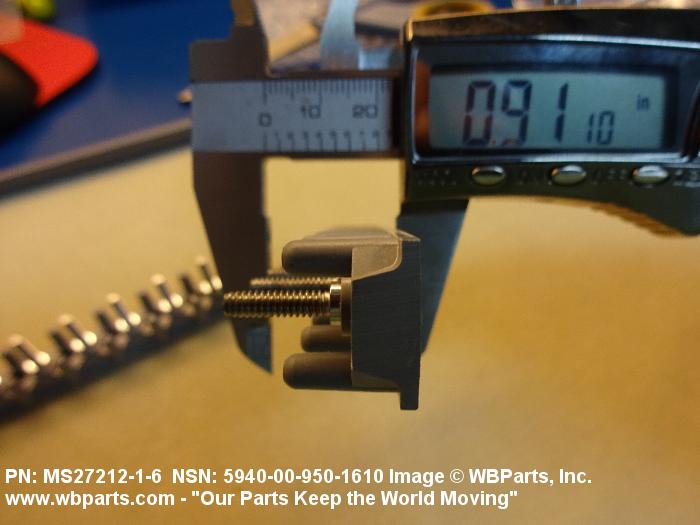

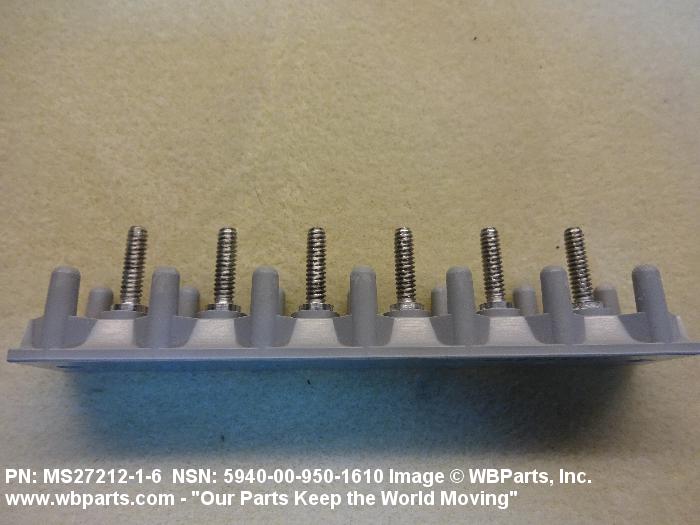

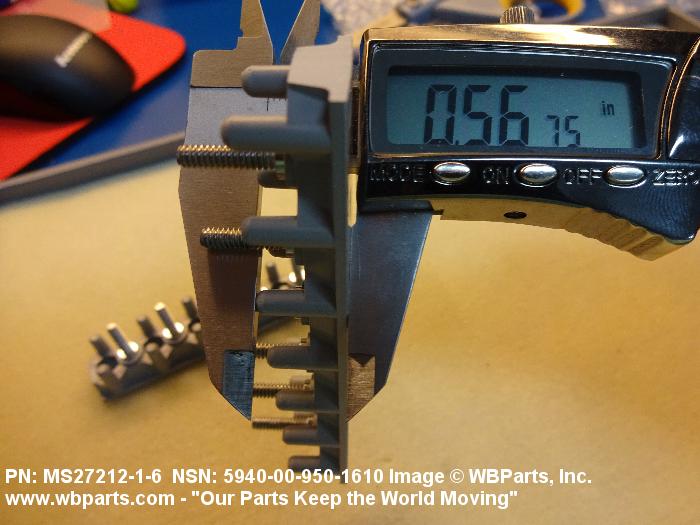

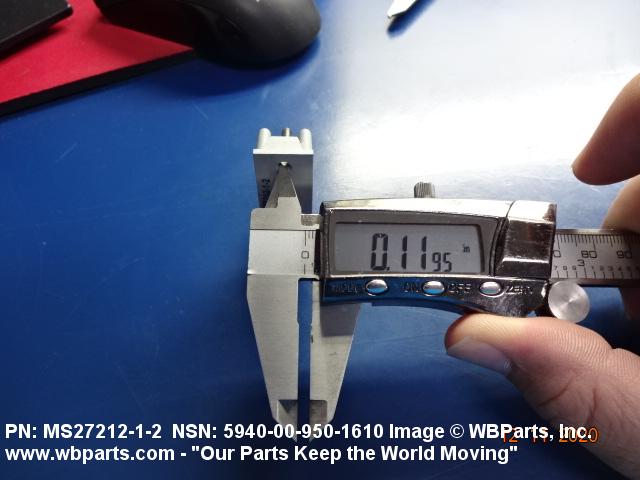

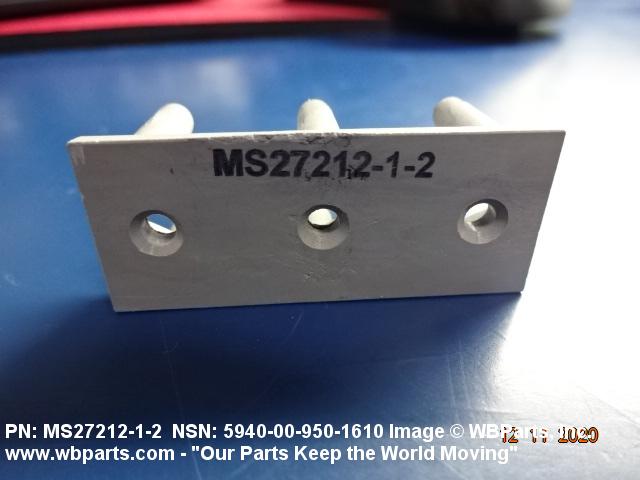

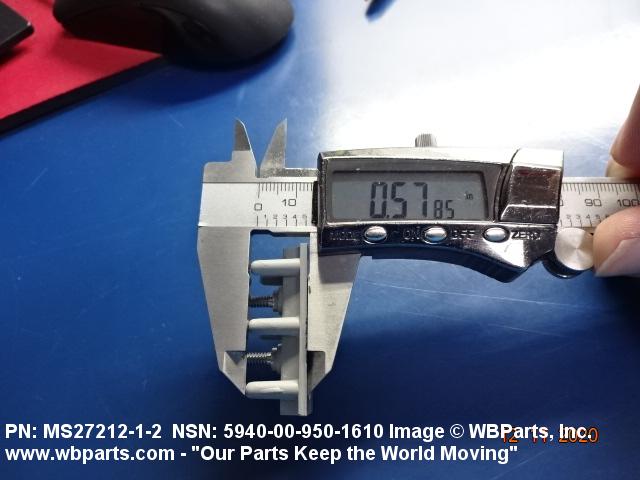

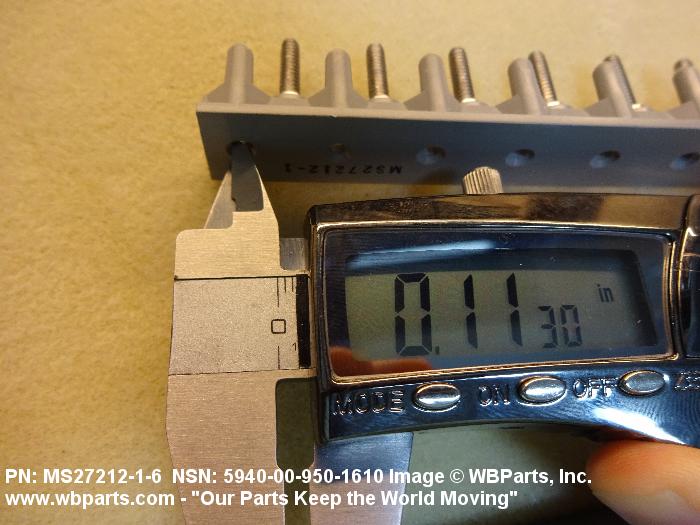

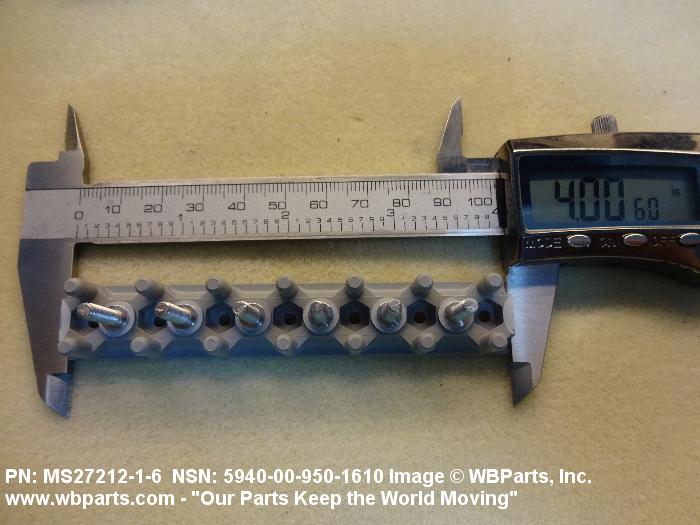

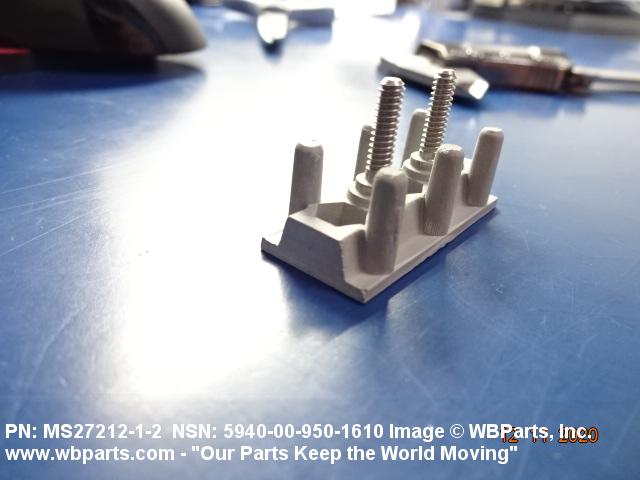

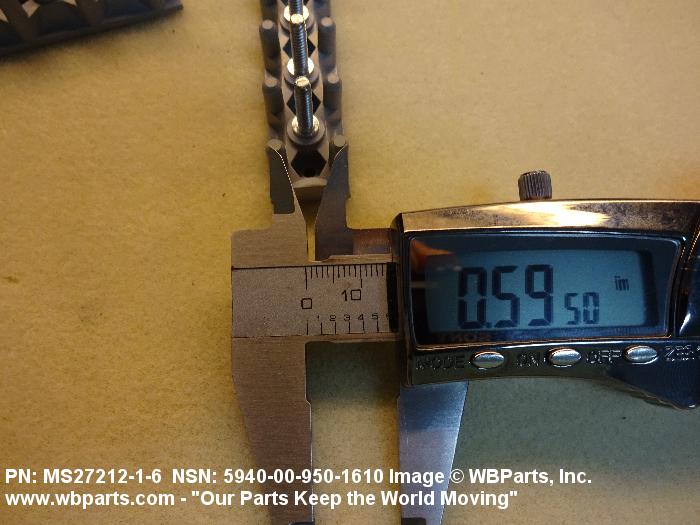

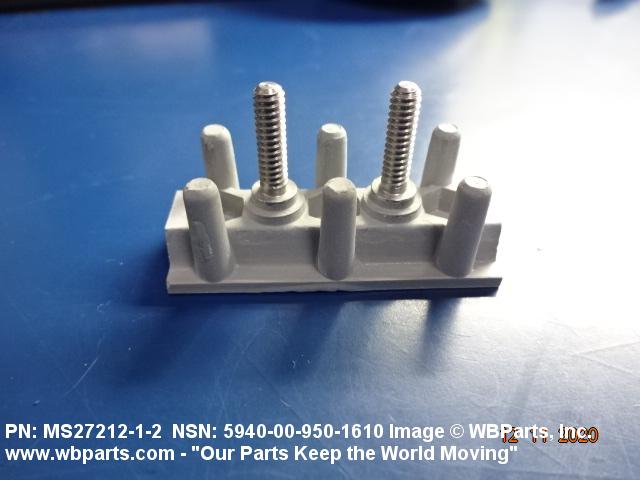

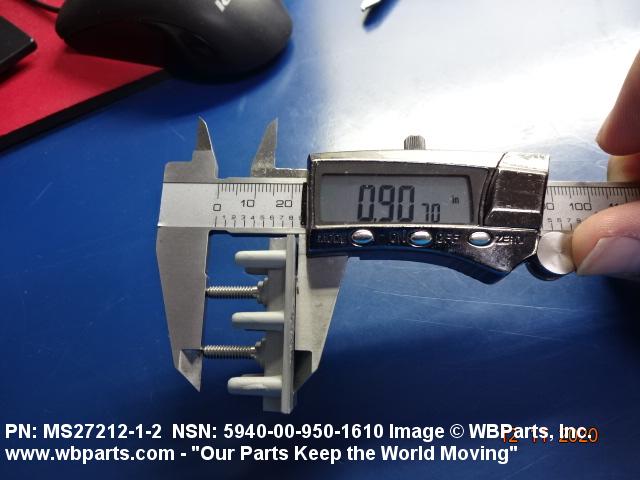

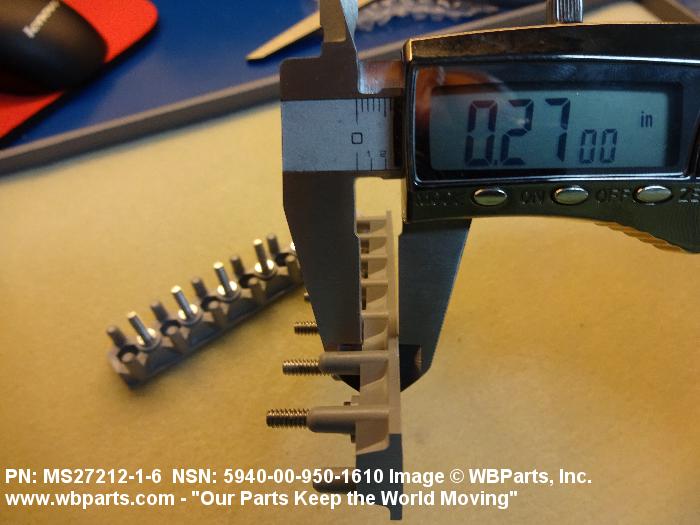

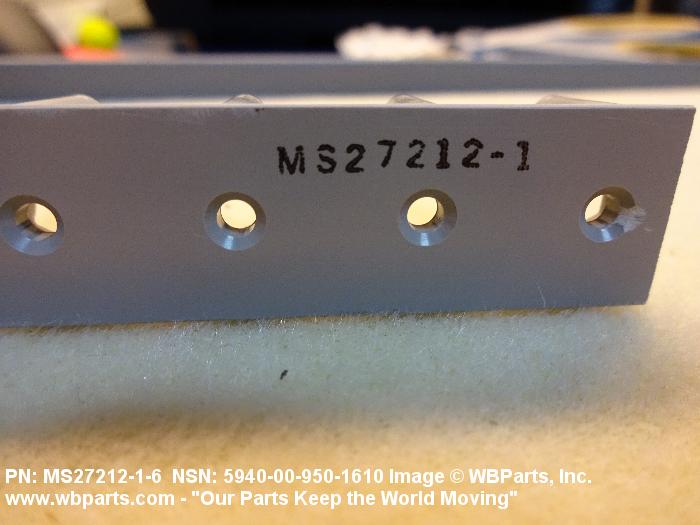

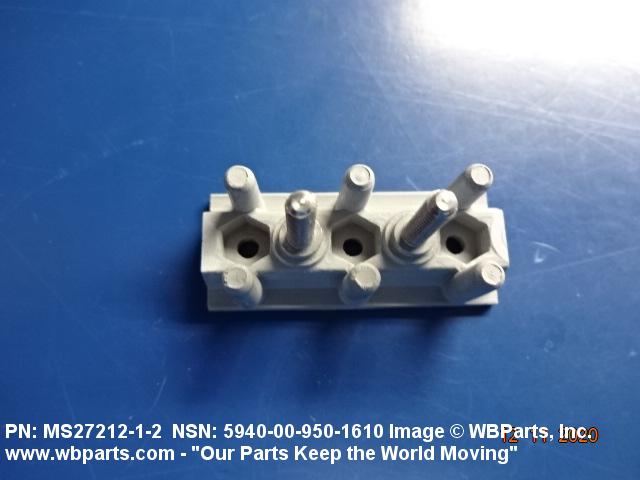

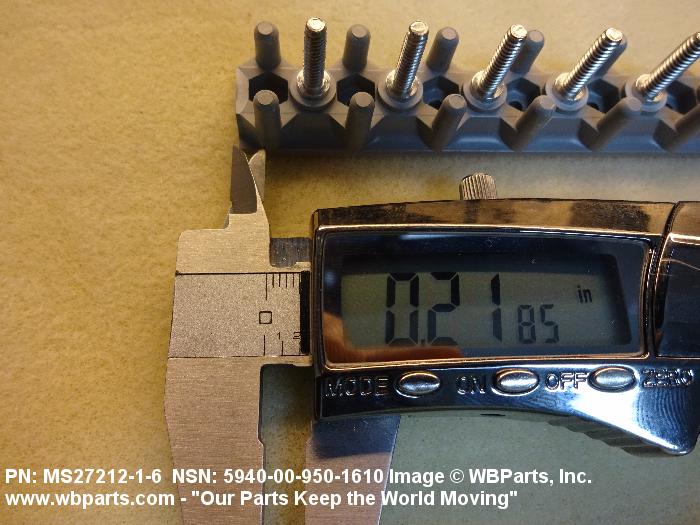

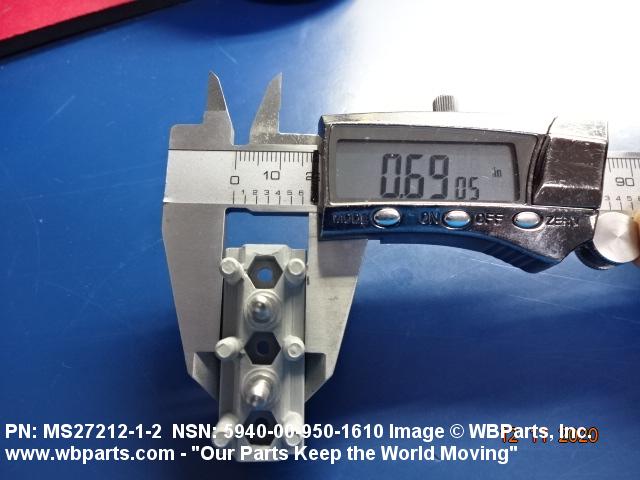

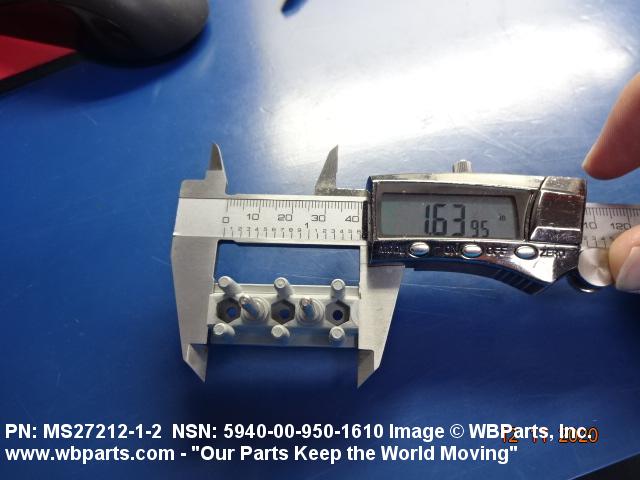

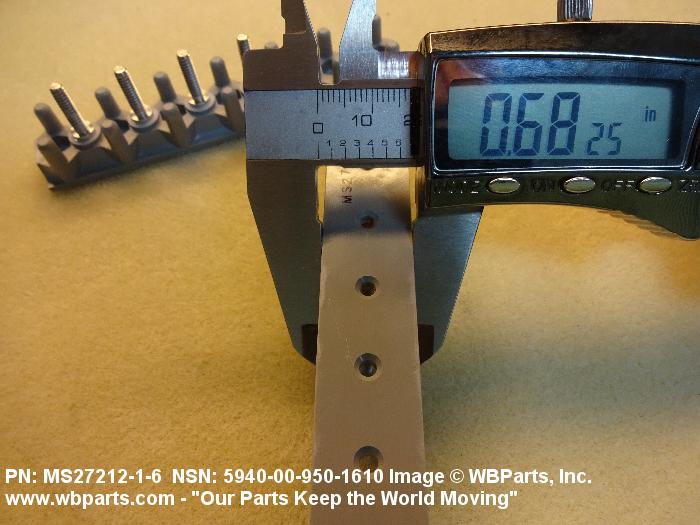

Drawings & Photos | NSN 5940-00-950-1610
Demand History | NSN 5940-00-950-1610
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-950-1610 | 2025-05-150 | 1 | United States |
| 5940-00-950-1610 | 2024-05-141 | 4 | US |
| 5940-00-950-1610 | 2022-12-349 | 288 | DIBBS |
| MS2721212 | 2021-02-47 | 1 | United States |
| 5940-00-950-1610 | 2020-01-14 | 1 | US |
| 5940-00-950-1610 | 2017-11-306 | 1 | DIBBS-RFPs |
| MS2721212 | 2016-07-190 | 2 | United States |
| MS2721212 | 2015-02-36 | 52 | US |
| 5940-00-950-1610 | 2013-05-149 | 500 | DIBBS |
| 5940-00-950-1610 | 2013-05-148 | 1412 | DIBBS |
| 5940-00-950-1610 | 2012-12-355 | 805 | DIBBS |
| MS2721212 | 2012-08-234 | 8 | United States |
| 5940-00-950-1610 | 2012-01-12 | 472 | DIBBS |
| 5940-00-950-1610 | 2009-09-264 | 2 | US |
| 5940-00-950-1610 | 2008-11-316 | 4101 | DIBBS |
| 5940-00-950-1610 | 2008-10-297 | 3429 | DIBBS |
| 5940-00-950-1610 | 2008-09-248 | 50 | US |
| MS27212 | 2007-11-318 | 1 | United States |
| 5940-00-950-1610 | 2007-08-220 | 2370 | DIBBS |
| 5940-00-950-1610 | 2007-07-204 | 1 | US |
| 5940-00-950-1610 | 2007-07-192 | 846 | DIBBS |
Cross Reference | NSN 5940-00-950-1610
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS27212 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27212 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27212-1-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27212-1-20A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS27212-1-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27212P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-950-1610
Technical Data | NSN 5940-00-950-1610
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC DIALLYL PHTHALATE BOARD STEEL CORROSION RESISTING TERMINALS |

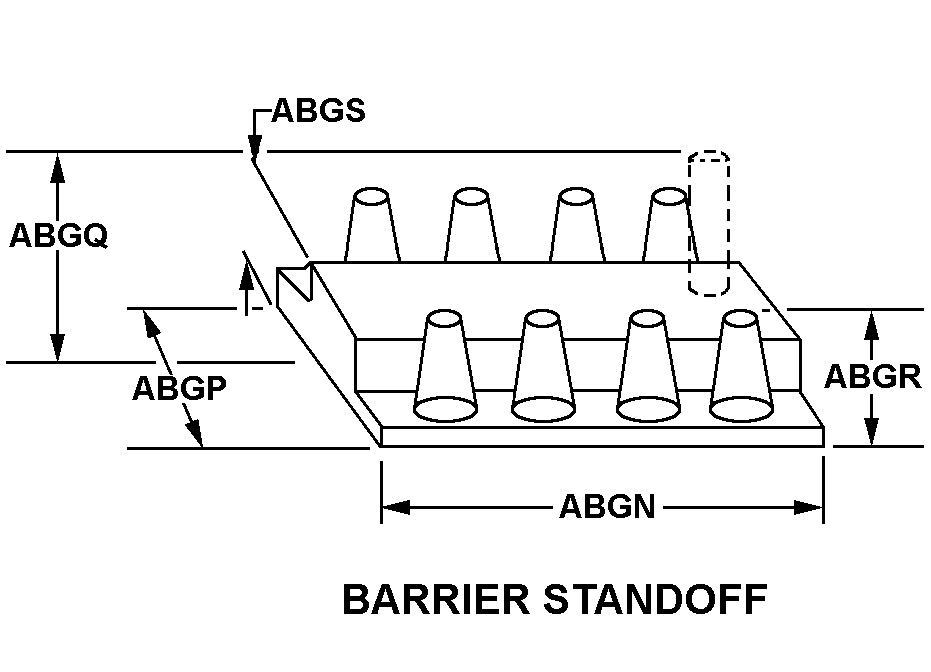

| BODY STYLE | A14 BARRIER STANDOFF |
