NSN 5940-00-905-0438 QA40B, 00-905-0438, 009050438
Product Details | LUG TERMINAL
5940-00-905-0438 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: QA40B, 5940-00-905-0438, 00-905-0438, 5940009050438, 009050438
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 JUN 1966 | 00-905-0438 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-905-0438
Cross Reference | NSN 5940-00-905-0438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| QA40B | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-905-0438
Technical Data | NSN 5940-00-905-0438
| Characteristic | Specifications |
|---|---|

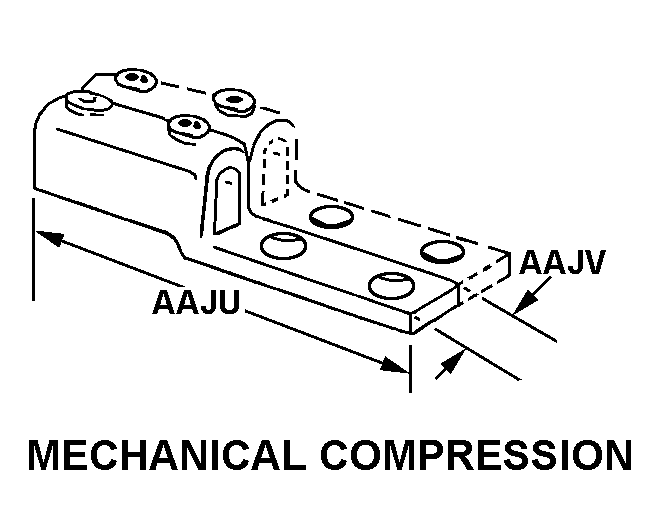

| BASIC SHAPE STYLE | A27 MECHANICAL COMPRESSION |
| OVERALL LENGTH | 3.688 INCHES |
| OVERALL WIDTH | 1.625 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | PARALLEL BOLT CLAMP SINGLE END |
| LARGEST WIDTH | 1.750 INCHES SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 800 MCM |
| MOUNTING METHOD STYLE | D11 STRAIGHT ONE HOLE |
| MOUNTING HOLE DIAMETER | 0.688 INCHES |
| MOUNTING TONGUE WIDTH | 1.625 INCHES |
| MOUNTING FACILITY THICKNESS | 0.375 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.938 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL EXCEPT INSULATION |
| MANUFACTURERS CODE | 09922 |
| DESIGN CONTROL REFERENCE | QA40B |
Restrictions/Controls & Freight Information | NSN 5940-00-905-0438
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
