NSN 5940-00-884-8124 36B507872G01, 00-884-8124, 008848124
Product Details | TERMINAL BOARD
5940-00-884-8124 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 36B507872G01, 5940-00-884-8124, 00-884-8124, 5940008848124, 008848124
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 NOV 1967 | 00-884-8124 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-00-884-8124
Cross Reference | NSN 5940-00-884-8124
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36B507872G01 | 30221 | GENERAL ELECTRIC CO ARMAMENT AND ELECTRICAL SYSTEMS DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-884-8124
Technical Data | NSN 5940-00-884-8124
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD STEEL CORROSION RESISTING TERMINALS |

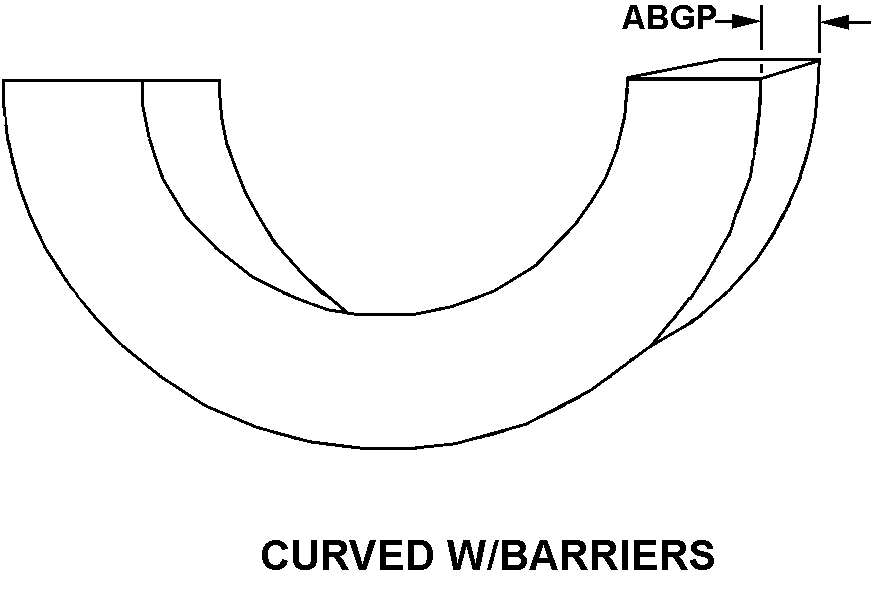

| BODY STYLE | A41A CURVED WITH BARRIERS |
| BOARD THICKNESS | 1.750 INCHES |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 597 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 4 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.000 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.250 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.250 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.375 INCHES |
| MOUNTING HOLE DIAMETER | 0.328 INCHES |
| FEATURES PROVIDED | GROUNDING DEVICE |
| SPECIAL FEATURES | TERMINALS A AND D ARE 3/16 STUDS; TERMINALS F AND B ARE 3/8 STUDS |
| SPECIAL MARKINGS | A,E,B,D |
| MANUFACTURERS CODE | 30221 |
| DESIGN CONTROL REFERENCE | 36B507872G01 |
