Product Details | TERMINAL BOARD
5940-00-882-2381 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 99445, 5940-00-882-2381, 00-882-2381, 5940008822381, 008822381
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-882-2381 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-00-882-2381
Cross Reference | NSN 5940-00-882-2381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 99445 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-882-2381
Technical Data | NSN 5940-00-882-2381
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS FIBER AND PLASTIC EPOXY BOARD COPPER ALLOY TERMINALS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-18177,TYPE GEE MIL SPEC SINGLE MATERIAL RESPONSE BOARD |

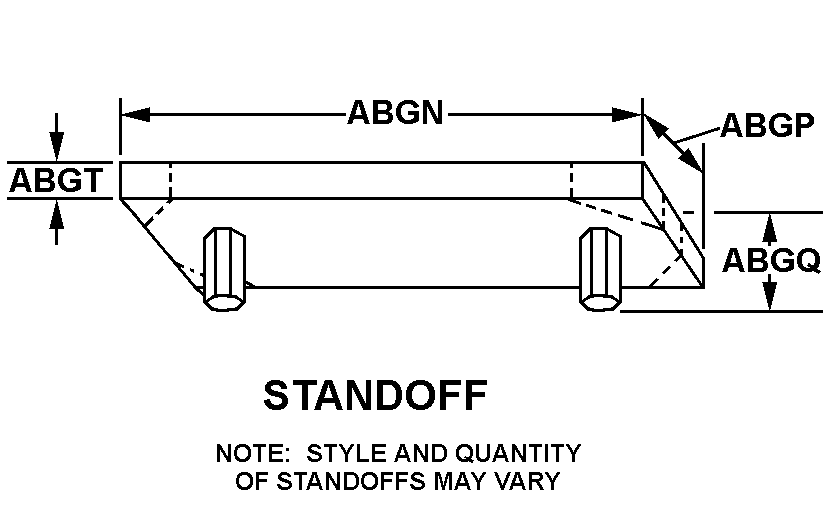

| BODY STYLE | A11 STANDOFF |
| BOARD OVERALL LENGTH | 6.500 INCHES |
| BOARD OVERALL WIDTH | 2.500 INCHES |
| BOARD OVERALL HEIGHT | 0.375 INCHES |
| BOARD THICKNESS | 0.125 INCHES |
| TERMINAL PATTERN ARRANGEMENT | RANDOM |
| NONFEEDTHRU TERMINAL TYPE | 434 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 17 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.000 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.250 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 1.000 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.250 INCHES |
| MOUNTING HOLE DIAMETER | 0.120 INCHES |
| MANUFACTURERS CODE | 24930 |
| DESIGN CONTROL REFERENCE | 99445 |
