Product Details | TERMINAL BOARD
5940-00-881-9536 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: 9988946, 5940-00-881-9536, 00-881-9536, 5940008819536, 008819536
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-881-9536 | 00404 ( TERMINAL BOARD ) |
Drawings & Photos | NSN 5940-00-881-9536
Cross Reference | NSN 5940-00-881-9536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9988946 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-881-9536
Technical Data | NSN 5940-00-881-9536
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC PHENOLIC AND PAPER BOARD |
| MATERIAL DOCUMENT AND CLASSIFICATION | L-P-513,TYPE PBE FED SPEC SINGLE MATERIAL RESPONSE BOARD |
| SURFACE TREATMENT | COPPER AND TIN TERMINALS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-14550 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-T-10727,TYPE 1 MIL SPEC 2ND TREATMENT RESPONSE TERMINALS |

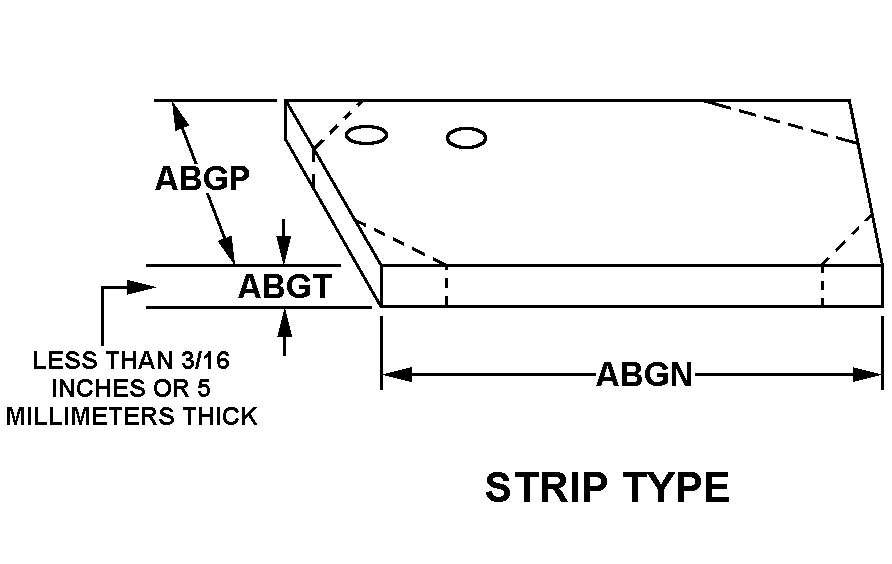

| BODY STYLE | A9 STRIP TYPE |
| BOARD OVERALL LENGTH | 3.125 INCHES |
| BOARD OVERALL WIDTH | 2.875 INCHES |
| BOARD THICKNESS | 0.093 INCHES |
| TERMINAL PATTERN ARRANGEMENT | RANDOM |
| TERMINAL DESIGN | NONFEEDTHRU |
| NONFEEDTHRU TERMINAL TYPE | 461 SINGLE |
| NONFEEDTHRU TERMINAL QUANTITY | 18 SINGLE |
| BOARD CONSTRUCTION | SOLID CONSTRUCTION |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.688 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.000 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.188 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.219 INCHES |
| MOUNTING HOLE DIAMETER | 0.200 INCHES |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9988946 |
