NSN 5940-00-819-2126 C090158019, C090158-019 , S203MR011P003
Product Details | GROUNDING METALLIC SHIELDED CABLE FERRULE
5940-00-819-2126 An item of one or more piece construction designed to be affixed to the outer, or shielding, conductor of CABLE (as modified) to simplify grounding of the outer conductor and/or to anchor the cable to prevent fraying or slipping. For items used with other than shielded cable, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: C090158019, C090158-019 , S203MR011P003 , F22NC340, F22NC3-40 , 8513510, 22NC340, 22NC3-40 , 410966-403 , 41902931, 419029-31 , 5940-00-819-2126, 00-819-2126, 5940008192126, 008192126, 410966403
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-819-2126 | 35296 ( FERRULE, METALLIC SHIELDED CABLE, GROUNDING ) |

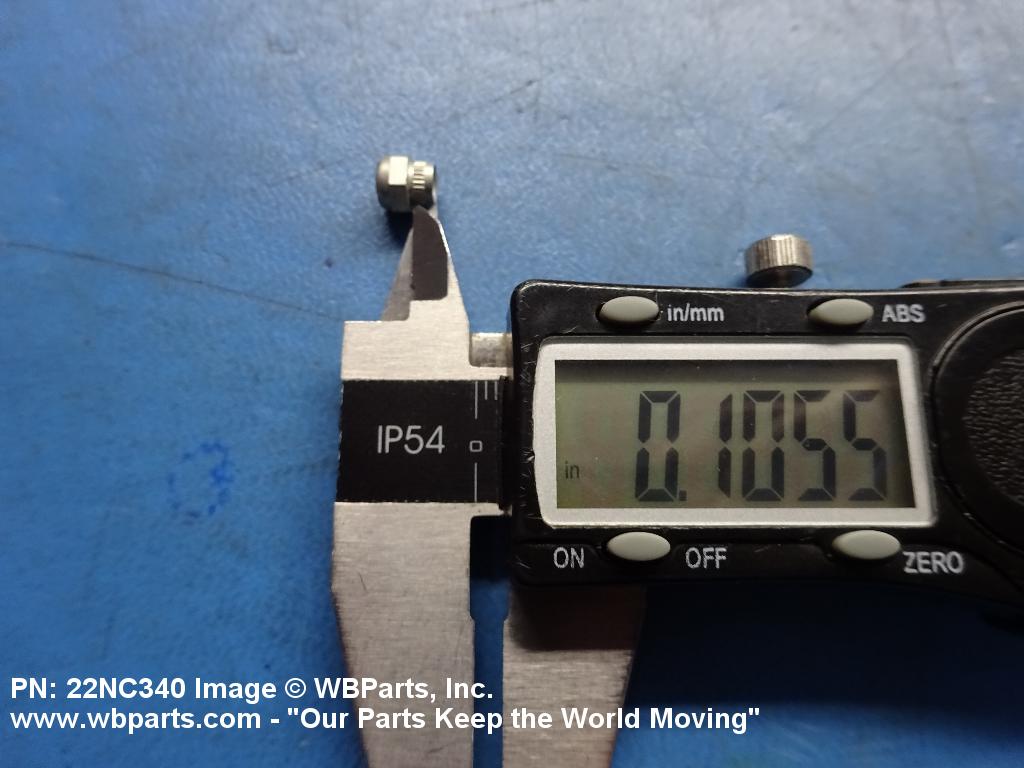

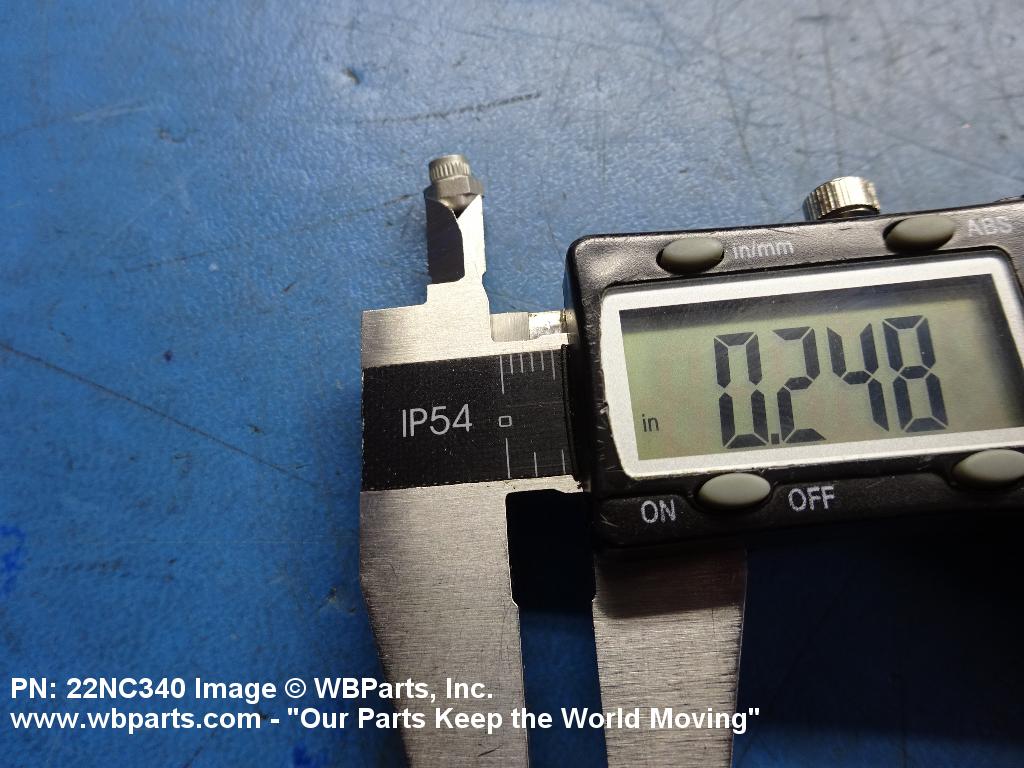

Drawings & Photos | NSN 5940-00-819-2126
Demand History | NSN 5940-00-819-2126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F22NC340 | 2024-09-269 | 20 | United States |
| F22NC340 | 2024-08-234 | 25 | United States |
| 22NC340 | 2022-06-154 | 750 | United States |
Cross Reference | NSN 5940-00-819-2126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8513510 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-819-2126
Technical Data | NSN 5940-00-819-2126
| Characteristic | Specifications |
|---|---|
| MOUNTING FACILITY | NOT INCLUDED |
| SLEEVE DESIGN TYPE | SINGLE |
| LENGTH | 0.406 INCHES NOMINAL |
| INSIDE DIAMETER | 0.094 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.168 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5940-00-819-2126
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-819-2126
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
