NSN 5940-00-754-9907 1003430510, 10034305-10, 324567
Product Details | LUG TERMINAL
5940-00-754-9907 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: 1003430510, 10034305-10, 324567, 8868371-29, 9167841, 5940-00-754-9907, 00-754-9907, 5940007549907, 007549907, 886837129
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-754-9907 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-754-9907
Cross Reference | NSN 5940-00-754-9907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10034305-10 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 324567 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8868371-29 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 8868371-29 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 9167841 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-754-9907
Technical Data | NSN 5940-00-754-9907
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 0.737 INCHES |
| OVERALL WIDTH | 0.328 INCHES |
| MATERIAL THICKNESS | 0.033 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |

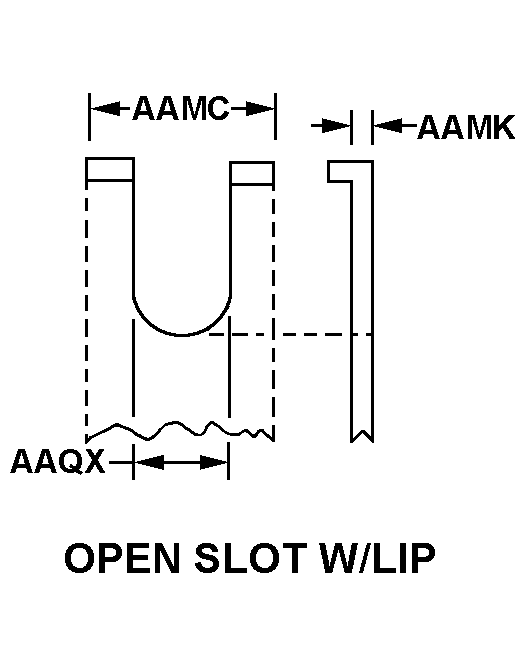

| MOUNTING METHOD STYLE | D17 OPEN SLOT W/LIP |
| MOUNTING TONGUE WIDTH | 0.328 INCHES |
| MOUNTING FACILITY THICKNESS | 0.033 INCHES |
| MOUNTING SLOT WIDTH | 0.144 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
| MATERIAL | PLASTIC VINYL INSULATION COPPER OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-754-9907
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-754-9907
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
