NSN 5940-00-754-9256 9140787, 00-754-9256, 007549256
Product Details | LUG TERMINAL
5940-00-754-9256 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: 9140787, 5940-00-754-9256, 00-754-9256, 5940007549256, 007549256
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-754-9256 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-754-9256
Cross Reference | NSN 5940-00-754-9256
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9140787 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-754-9256
Technical Data | NSN 5940-00-754-9256
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A21 SOLDER |
| OVERALL LENGTH | 0.820 INCHES |
| OVERALL WIDTH | 0.600 INCHES |
| MATERIAL THICKNESS | 0.031 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | CLAMPING BARREL EARS SINGLE END |
| LARGEST WIDTH | 0.820 INCHES SINGLE END |

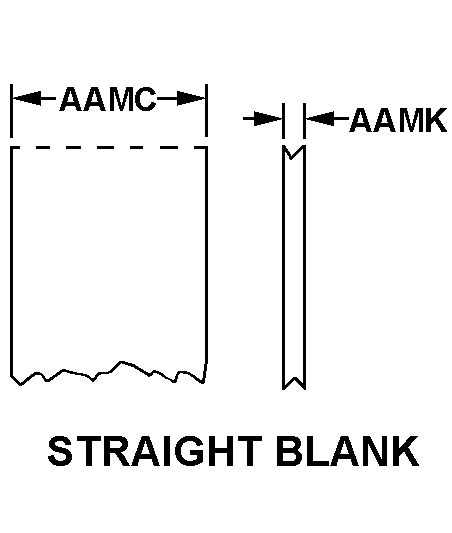

| MOUNTING METHOD STYLE | D10 STRAIGHT BLANK |
| MOUNTING TONGUE WIDTH | 0.820 INCHES |
| MOUNTING FACILITY THICKNESS | 0.031 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION COPPER ALLOY MOUNTING FACILITY |
| SURFACE TREATMENT | NICKEL CONDUCTOR ACCOMMODATION SINGLE LAYER NICKEL MOUNTING FACILITY SINGLE LAYER |
| SPECIAL MARKINGS | 9140787 |
| SPECIAL FEATURES | LOCKING DEVICE,NOTCH TYPE,LOCATED ON END |
Restrictions/Controls & Freight Information | NSN 5940-00-754-9256
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
