NSN 5940-00-557-4339 MS25036, MS25036126, MS25036-126

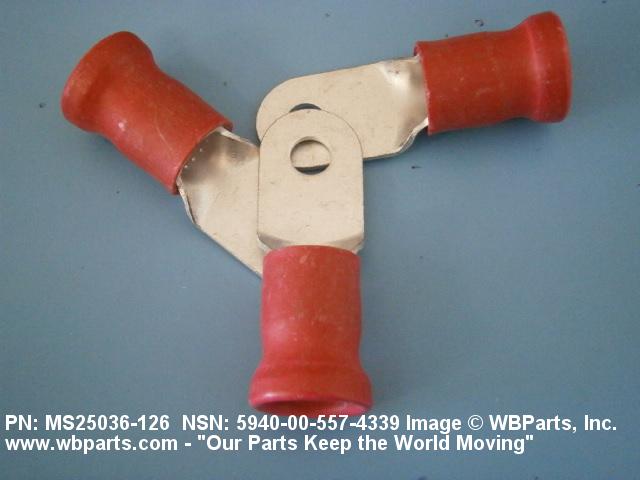

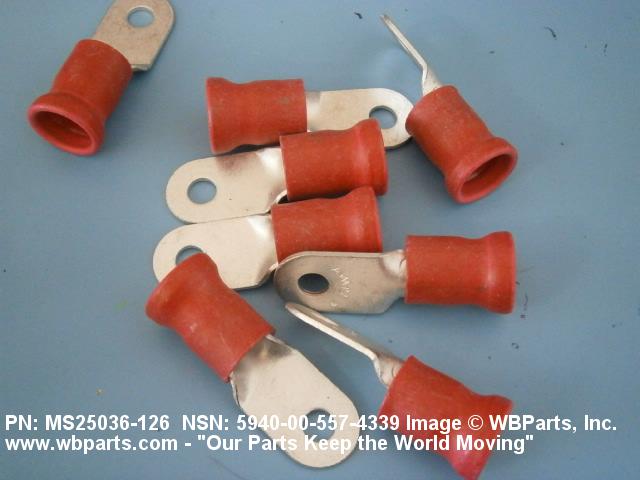

Product Details | LUG TERMINAL

5940-00-557-4339 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.

Part Alternates: MS25036, MS25036126, MS25036-126, MS2503626, MS25036-26, AN2YA, AN-2YA , AS25036, AS25036126, AS25036-126, AS7928, SAE AS7928, SAEAS7928, YAEV2CL1, RG9711, GT805P24, GT805P2-4, MILT7928, MIL-T-7928, 13217E38587, 13217E3858-7, 212032200130, 2120322-001-30, 23114990741, 23114-99-0741, 322157, 52267, 522671, 52267-1, 5940-00-557-4339, 00-557-4339, 5940005574339, 005574339

Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-557-4339	00746 ( TERMINAL, LUG )

Drawings & Photos | NSN 5940-00-557-4339

Part Number	Request Date	QTY	Origin
5940-00-557-4339	2025-02-51	2901	DIBBS
5940-00-557-4339	2024-10-294	553	DIBBS
5940-00-557-4339	2023-09-271	2500	DIBBS
5940-00-557-4339	2023-09-261	1219	DIBBS
AS25036	2022-09-265	5	Taiwan
5940-00-557-4339	2022-09-245	100	South Korea
5940-00-557-4339	2022-06-159	80	US
5940-00-557-4339	2021-10-292	667	DIBBS
5940-00-557-4339	2021-09-271	1063	DIBBS
AS25036	2018-07-183	1	Thailand
MS25036	2017-09-269	64	United States
5940-00-557-4339	2015-02-37	1	DIBBS-RFPs
AS7928	2014-05-140	4	United States
MS25036126	2012-10-277	156	US
MS25036	2012-04-103	100	US
MS25036	2012-04-103	380	US
MS25036	2012-04-103	760	US
MS25036126	2012-02-37	2	United Kingdom
5940-00-557-4339	2011-11-308	25	US
MS25036126	2011-10-287	1060	United States
5940-00-557-4339	2011-10-277	1060	United States
5940-00-557-4339	2011-08-242	900	United States
5940-00-557-4339	2011-06-168	27136	DIBBS
5940-00-557-4339	2011-05-140	29306	DIBBS
5940-00-557-4339	2010-12-341	6544	DIBBS
5940-00-557-4339	2009-11-334	6	US
MILT7928	2008-07-191	12	US
5940-00-557-4339	2008-05-141	4352	DIBBS
5940-00-557-4339	2008-04-115	100	United States
5940-00-557-4339	2007-02-53	2000	DIBBS
5940-00-557-4339	2007-02-52	4352	DIBBS

Cross Reference | NSN 5940-00-557-4339

Part Number	Cage Code	Manufacturer
13217E3858-7	36024	LIBBY POWER SYSTEMS LLC
13217E3858-7	97403	CECOM LR CENTER
2120322-001-30	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
23114-99-0741	C2311	BUNDESAMT FUER AUSRUESTUNG,
23114-99-0741	D1785	HENSCHEL WEHRTECHNIK GMBH
23114-99-0741	D1839	BUNDESAMT FUER AUSRUESTUNG,
23114-99-0741	D9448	RHEINMETALL LANDSYSTEME GMBH DBA RHEINMETALL LAND- UN
322157	00779	TYCO ELECTRONICS CORPORATION
52267	00779	TYCO ELECTRONICS CORPORATION
52267-1	00779	TYCO ELECTRONICS CORPORATION
AN-2YA	59734	GULFSTREAM AEROSPACE CORPORATION GEORGIA
AS25036	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS25036-126	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7928	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
GT805P2-4	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MIL-T-7928	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25036	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-126	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS25036-126	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS25036-26	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RG9711	56501	THOMAS & BETTS CORPORATION
SAE AS7928	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
YAEV2CL1	09922	SOURIAU USA, INC.
YAEV2CL1	1NJK8	BURNDY LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5940-00-557-4339

Compare

Related Products | NSN 5940-00-557-4339

5940-00-557-4340, 5940-00-557-4341, 5940-00-557-4342, 5940-00-557-4343, 5940-00-557-4344

Technical Data | NSN 5940-00-557-4339

Characteristic	Specifications
BASIC SHAPE STYLE	A24 CRIMP
OVERALL LENGTH	2.069 INCHES
OVERALL WIDTH	0.711 INCHES
MATERIAL THICKNESS	0.109 INCHES
CONDUCTOR ACCOMMODATION TYPE	RECESSED BARREL SINGLE END
MAXIMUM CONDUCTOR SIZE ACCOMMODATED	2 AWG
MOUNTING METHOD STYLE	D14 RING
MOUNTING HOLE DIAMETER	0.266 INCHES
MOUNTING TONGUE WIDTH	0.711 INCHES
MOUNTING FACILITY THICKNESS	0.109 INCHES
ELECTRICAL INSULATION FEATURE	INSULATING SLEEVE
IDENTIFICATION CODE COLOR	RED
MATERIAL	PLASTIC POLYAMIDE OR PLASTIC VINYL INSULATION COPPER ALLOY OVERALL EXCEPT INSULATION
SURFACE TREATMENT	TIN OVERALL EXCEPT INSULATION SINGLE LAYER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-T-10727,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL EXCEPT INSULATION SINGLE LAYER
III END ITEM IDENTIFICATION	W/S: ENGINE, AIRCRAFT F110-GE-400; TACTICAL AIR OPNS MODULE (AN/TYQ-23); GENERATOR, 30KW, DIESEL, MILITARY STANDARD FAMILY; TORPEDO, ADCAP 48; SUPPORT EQUIPMENT, B-1 AIRCRAFT; AIRCRAFT, (AC-130H, MC-130H, EC-130E, HC-130); AIRCRAFT, C-2A (REPROCURED); HELICOPTER, MH-53E; TEST CONSOLES, MINI-SPACE
III PART NAME ASSIGNED BY CONTROLLING AGENCY	TERMINAL, LUG SPLICES, CONDUCTOR, CRIMP STYLE, TYPE II, CLASS 1
MANUFACTURERS CODE	96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25036
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25036-126
