NSN 5940-00-513-2988 A55032842, A55032-842 , 11009215A
Product Details | CONDUCTOR SPLICE
5940-00-513-2988 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: A55032842, A55032-842 , 11009215A, 1100-9-215A, 34133, 42276-601-4, 5940-00-513-2988, 00-513-2988, 5940005132988, 005132988, 422766014
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-513-2988 | 00137 ( SPLICE, CONDUCTOR ) |
Drawings & Photos | NSN 5940-00-513-2988
Cross Reference | NSN 5940-00-513-2988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1100-9-215A | 66346 | MINNESOTA MINING AND MFG CO BROADCASTING AND RELATED PRODUCTS |
| 34133 | 00779 | TYCO ELECTRONICS CORPORATION |
| 42276-601-4 | K4547 | SIEMENS AIR TRAFFIC MANAGEMENT |
| A55032-842 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| A55032-842 | KC1M9 | BAE SYSTEMS MARITIME SERVICESLIMITED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-513-2988
Technical Data | NSN 5940-00-513-2988
| Characteristic | Specifications |
|---|---|

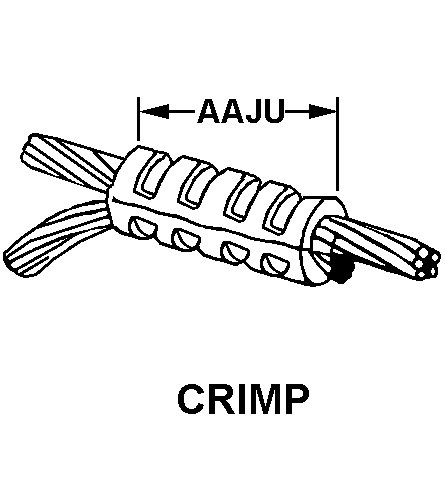

| BASIC SHAPE STYLE | A30 CRIMP |
| OVERALL LENGTH | 0.760 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL ALL ENDS |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 14 AWG |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
| MATERIAL | PLASTIC INSULATION COPPER OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN OVERALL EXCEPT INSULATION SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-513-2988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050925 | CONDUIT ELECTRICAL FLEXIBLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-513-2988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
