NSN 5940-00-411-7733 MS180291S10, MS18029-1S-10, 00-411-7733
Product Details | TERMINAL BOARD COVER
5940-00-411-7733 A cover designed to protect electrical terminals against damage, shorting and/or grounding. May have provisions for the passage of wire or cable. Excludes SHIELD, TERMINAL and SHIELD, TERMINAL BOARD.
Part Alternates: MS180291S10, MS18029-1S-10, 5940-00-411-7733, 00-411-7733, 5940004117733, 004117733
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 1969 | 00-411-7733 | 00691 ( COVER, TERMINAL BOARD ) |

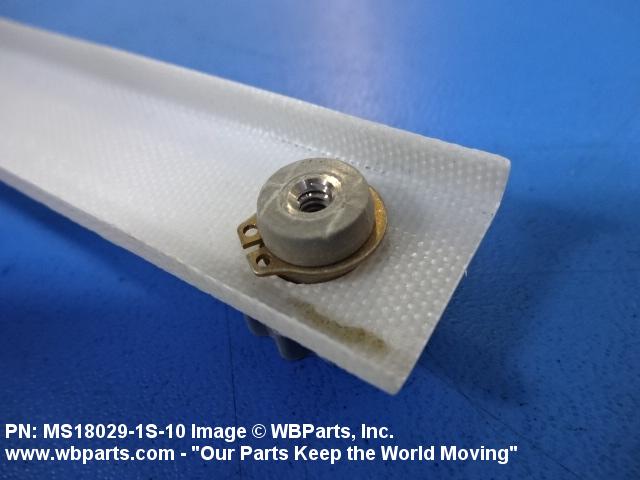

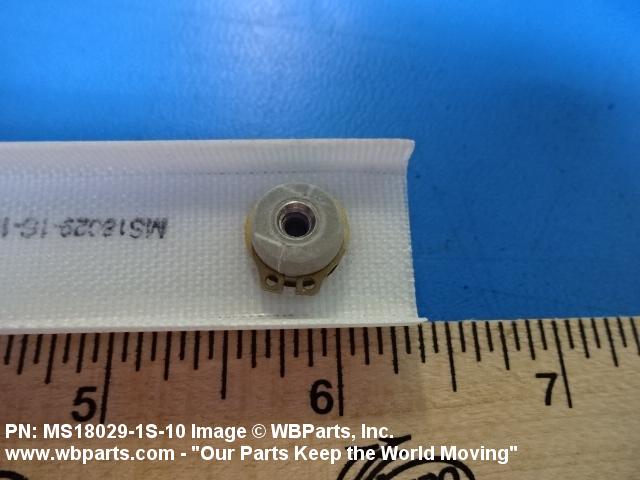

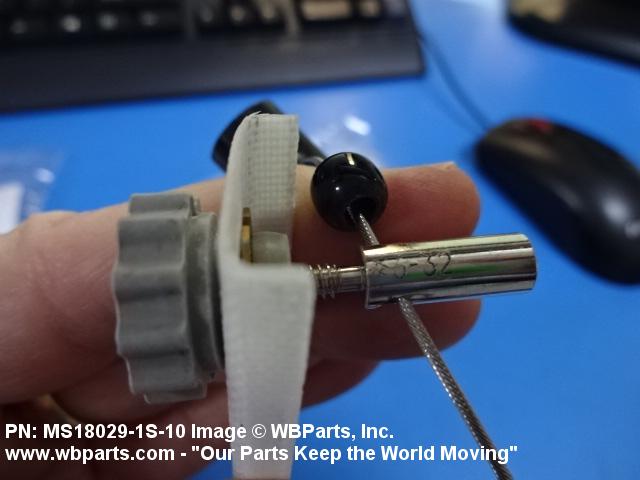

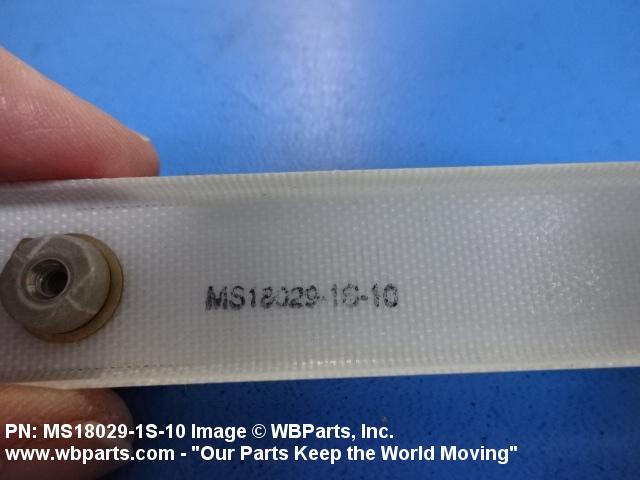

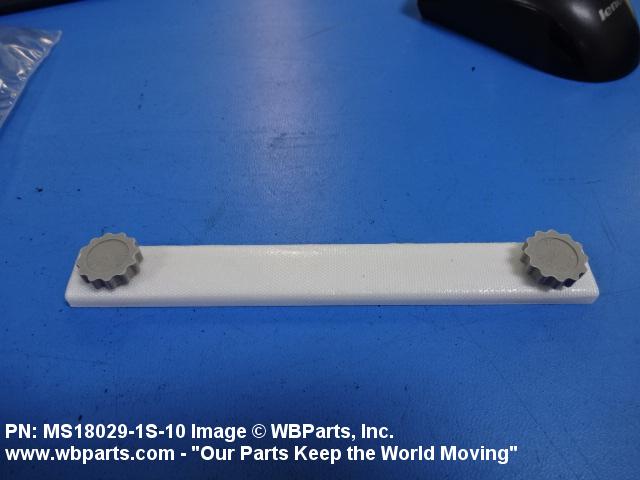

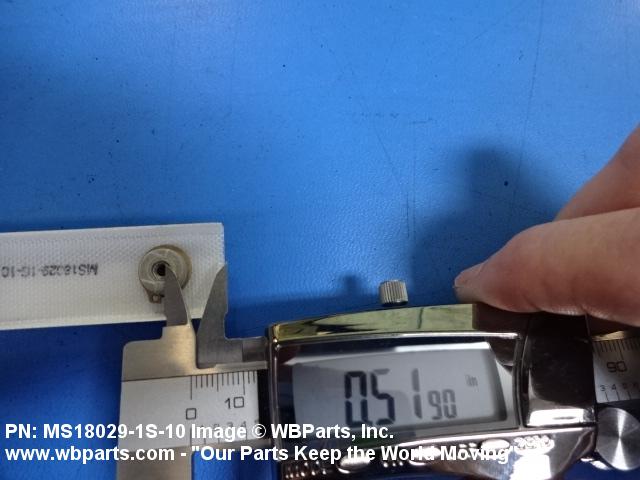

Drawings & Photos | NSN 5940-00-411-7733
Demand History | NSN 5940-00-411-7733
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-411-7733 | 2024-06-171 | 15 | United States |
| 5940-00-411-7733 | 2009-09-246 | 2 | US |
Cross Reference | NSN 5940-00-411-7733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS18029-1S-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-411-7733
Technical Data | NSN 5940-00-411-7733
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, PHENOL-FORMALDEHYDE |
| BODY LENGTH | 6.376 INCHES NOMINAL |

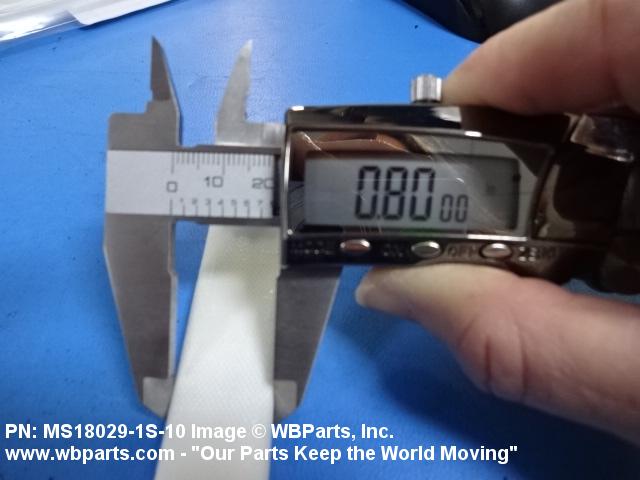

| BODY WIDTH | 0.813 INCHES NOMINAL |

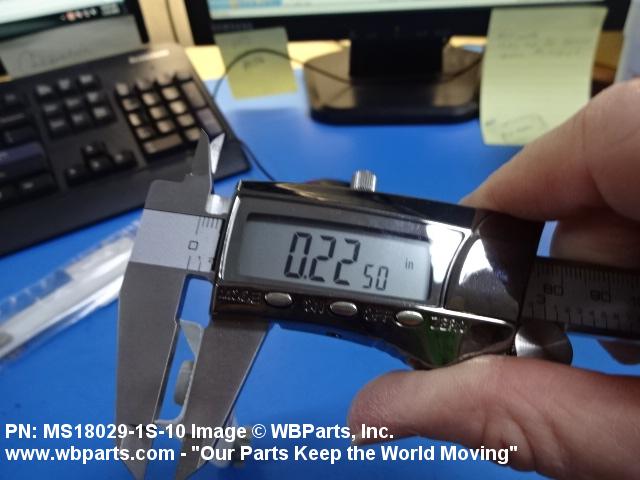

| BODY HEIGHT | 0.234 INCHES NOMINAL |

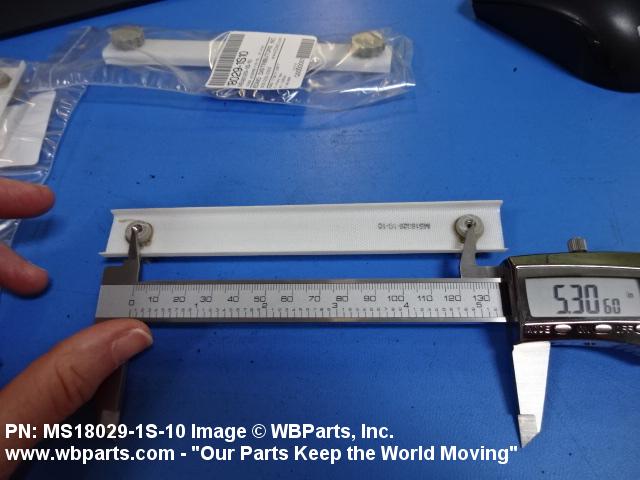

| MOUNTING CONFIGURATION | TWO 0.430 IN. DIA MTG HOLES SPACED 5.346 IN. CENTER TO CENTER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS18029-1S-10 |
Restrictions/Controls & Freight Information | NSN 5940-00-411-7733
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-411-7733
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
