Product Details | QUICK DISCONNECT TERMINAL
5940-00-349-3521 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Part Alternates: 41648, 5940-00-349-3521, 00-349-3521, 5940003493521, 003493521
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-349-3521 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-00-349-3521
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-349-3521
Technical Data | NSN 5940-00-349-3521
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A38 INTERNAL |
| OVERALL LENGTH | 0.550 INCHES |
| MATERIAL THICKNESS | 0.020 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | CLAMPING TANG EARS SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 22 AWG |

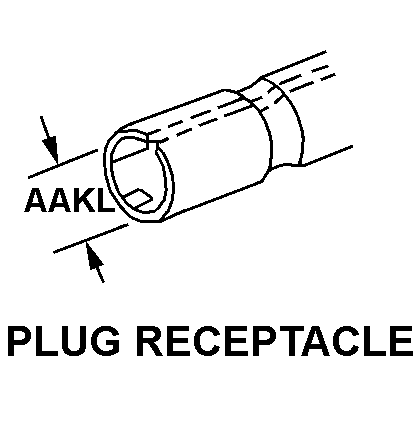

| QUICK DISCONNECT STYLE | G22 PLUG RECEPTACLE |
| MAJOR PLUG DIAMETER ACCOMMODATED | 0.062 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | SILVER OVERALL SINGLE LAYER |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | O/A EXTERNAL SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5940-00-349-3521
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-349-3521
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
