Product Details | FEEDTHRU TERMINAL
5940-00-280-0624 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: X15813, X1581-3, X1581B3, 842958, 10556382-2, 15813, 1581-3, 2132887, 5000T12, 5000-T12, 57015810301, 570-1581-03-01, 008752, 00875-2, 10034216, 570-1581-03-01-00, 5940-00-280-0624, 00-280-0624, 5940002800624, 5701581030100, 002800624, 105563822
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-0624 | 34672 ( TERMINAL, FEEDTHRU ) |
Drawings & Photos | NSN 5940-00-280-0624
Demand History | NSN 5940-00-280-0624
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1581-3 | 2013-01-22 | 56 | US |
Cross Reference | NSN 5940-00-280-0624
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00875-2 | 77926 | ROSEN RAYMOND AND CO |
| 10034216 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10556382-2 | 19200 | US ARMY ARDEC RDECOM |
| 1581-3 | 71279 | INTERCONNECTION PRODUCTS INC |
| 15813 | 71279 | INTERCONNECTION PRODUCTS INC |
| 2132887 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 2132887 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 5000-T12 | 86577 | PRECISION METAL PRODUCTS CO |
| 570-1581-03-01 | 71279 | INTERCONNECTION PRODUCTS INC |
| 570-1581-03-01-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 842958 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| X1581-3 | 71279 | INTERCONNECTION PRODUCTS INC |
| X1581B3 | 71279 | INTERCONNECTION PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-280-0624
Related Products | NSN 5940-00-280-0624
Technical Data | NSN 5940-00-280-0624

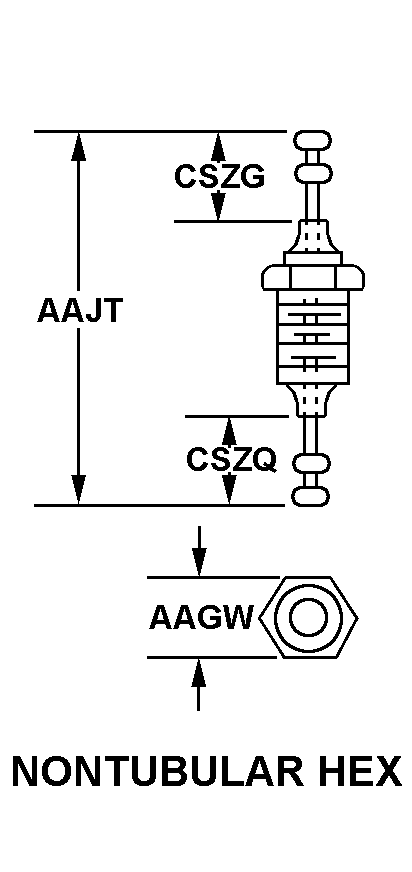

| Characteristic | Specifications |
|---|---|
