NSN 5940-00-270-3355 AA40WHP, SA581, 9881361
Product Details | FEEDTHRU TERMINAL
5940-00-270-3355 A terminal designed to be mounted on a chassis or other partition, and having through connected wire mounting facilities. It may or may not be insulated. It is fabricated into a single item whose parts are not separable. For items whose parts are separable, see INSULATOR, FEEDTHRU.
Part Alternates: AA40WHP, SA581, 9881361, 988136-1, 5940-00-270-3355, 00-270-3355, 5940002703355, 002703355
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-270-3355 | 34672 ( TERMINAL, FEEDTHRU ) |
Drawings & Photos | NSN 5940-00-270-3355
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-270-3355
Related Products | NSN 5940-00-270-3355
Technical Data | NSN 5940-00-270-3355
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A20 NONTUBULAR ROUND |
| OVERALL HEIGHT | 0.500 INCHES |
| OVERALL DIAMETER | 0.200 INCHES |
| FIRST END TERMINAL LENGTH | 0.188 INCHES |
| SECOND END TERMINAL LENGTH | 0.213 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | WIRE HOOK FIRST END FLAT WIRE W/HOLE SECOND END |
| LARGEST WIDTH | 0.140 INCHES ALL ENDS |
| WIRE HOLE DIAMETER | 0.043 INCHES ALL ENDS |

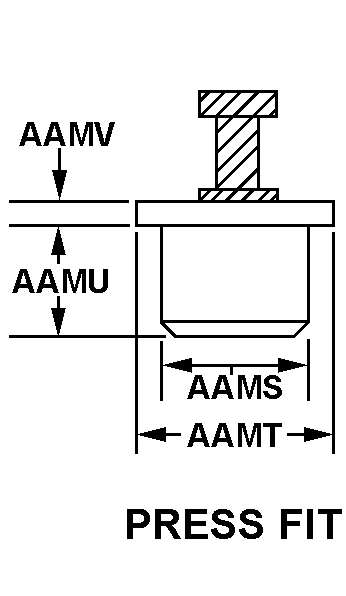

| MOUNTING METHOD STYLE | D30 PRESS FIT |
| MINOR BUSHING DIAMETER | 0.130 INCHES |
| MAJOR BUSHING DIAMETER | 0.200 INCHES |
| MINOR BUSHING LENGTH | 0.090 INCHES |
| MAJOR BUSHING LENGTH | 0.010 INCHES |
| ELECTRICAL INSULATION FEATURE | STANDOFF INSULATION |
| IDENTIFICATION CODE COLOR | WHITE |
| MATERIAL | NICKEL ALLOY OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | SOLDER OVERALL EXCEPT INSULATION SINGLE LAYER |
| FEATURES PROVIDED | ELECTRODE HERMETIC SEAL |
