NSN 5940-00-259-7939 7577362, 00-259-7939, 002597939
Product Details | LUG TERMINAL
5940-00-259-7939 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: 7577362, 5940-00-259-7939, 00-259-7939, 5940002597939, 002597939
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-259-7939 | 00746 ( TERMINAL, LUG ) |
Drawings & Photos | NSN 5940-00-259-7939
Cross Reference | NSN 5940-00-259-7939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7577362 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-259-7939
Technical Data | NSN 5940-00-259-7939
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A25 SOLDER/SOLDERLESS |
| OVERALL LENGTH | 0.688 INCHES |
| OVERALL WIDTH | 0.250 INCHES |
| MATERIAL THICKNESS | 0.016 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | CLAMPING TANG EARS SINGLE END |
| LARGEST WIDTH | 0.187 INCHES SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 6 AWG |

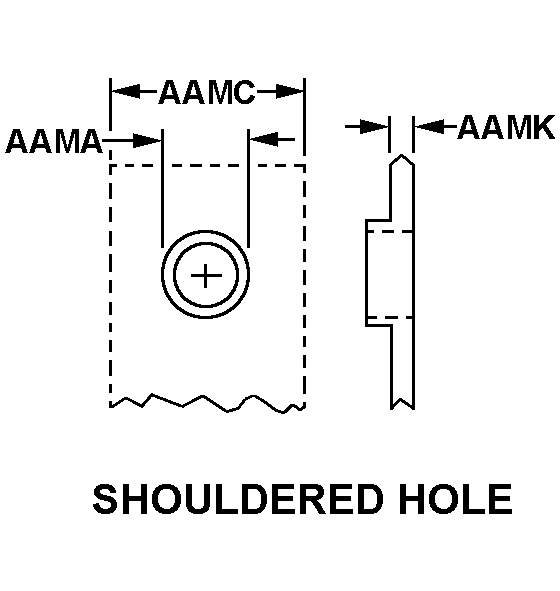

| MOUNTING METHOD STYLE | D19 SHOULDERED HOLE |
| MOUNTING HOLE DIAMETER | 0.140 INCHES |
| MOUNTING TONGUE WIDTH | 0.250 INCHES |
| MOUNTING FACILITY THICKNESS | 0.016 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER OVERALL EXCEPT INSULATION |
Restrictions/Controls & Freight Information | NSN 5940-00-259-7939
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
