NSN 5940-00-258-1936 P602A1, P-602-A-1, X1580B
Product Details | STUD TERMINAL
5940-00-258-1936 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Part Alternates: P602A1, P-602-A-1, X1580B, 1410B, 1580094, 1580-094, 20653, 2065-3, 38734, 55420653, 554-2065-3, 570-1580-02-01-00, 5850093, 5850-093, 6020A1, 6020-A-1, 5940-00-258-1936, 00-258-1936, 5940002581936, 5701580020100, 002581936
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-258-1936 | 00887 ( TERMINAL, STUD ) |
Drawings & Photos | NSN 5940-00-258-1936
Demand History | NSN 5940-00-258-1936
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20653 | 2016-02-55 | 8 | United States |
Cross Reference | NSN 5940-00-258-1936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1410D | 01255 | LITTON INDUSTRIES INC |
| 1419 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1419D | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1419D-7-11 | 81312 | WINCHESTER ELECTRONICS CORPORATION |
| 1580-094 | 71279 | INTERCONNECTION PRODUCTS INC |
| 238-5024A | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 554-2065-18 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 554-2065-18 | 60854 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 570-1580-02-01-00 | 71279 | INTERCONNECTION PRODUCTS INC |
| 5850-093 | 05791 | LYN-TRON INC |
| 6020-A-1 | 52525 | LERCO DIV SPACE-LOK INC |
| P-602-A-1 | 21355 | LTA/D-CEMCO INC DBA D-CEMCO |
| X1580B | 71279 | INTERCONNECTION PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-258-1936
Technical Data | NSN 5940-00-258-1936
| Characteristic | Specifications |
|---|---|

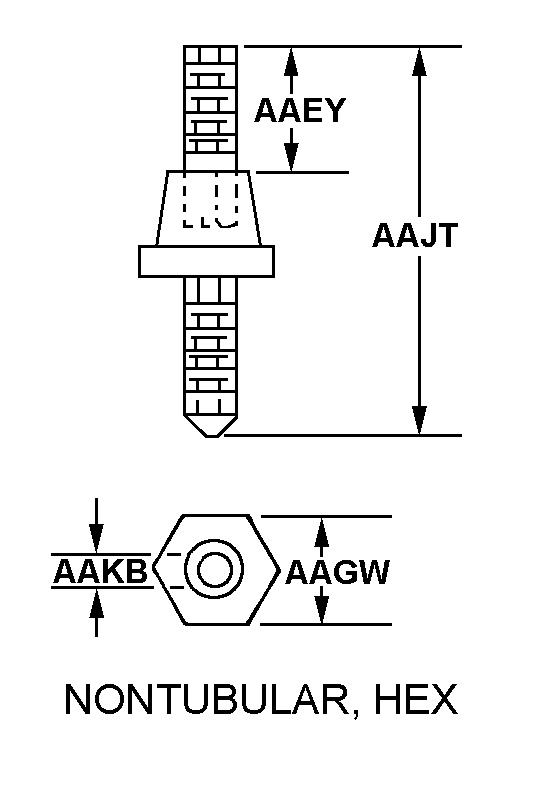

| BASIC SHAPE STYLE | A8A NONTUBULAR, HEX |
