NSN 5940-00-231-1603 MS2065932, MS20659-32, AN432
Product Details | LUG TERMINAL
5940-00-231-1603 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Part Alternates: MS2065932, MS20659-32, AN432, AN4-32, AN65932, AN659-32, BLM4S26, S4-32, YAV4CL4, F36656, F366-56, F72SB, G22136212, G221362-12, S432, 23114990742, 23114-99-0742, 33115, 5940-00-231-1603, 00-231-1603, 5940002311603, 002311603
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-231-1603 | 00746 ( TERMINAL, LUG ) |

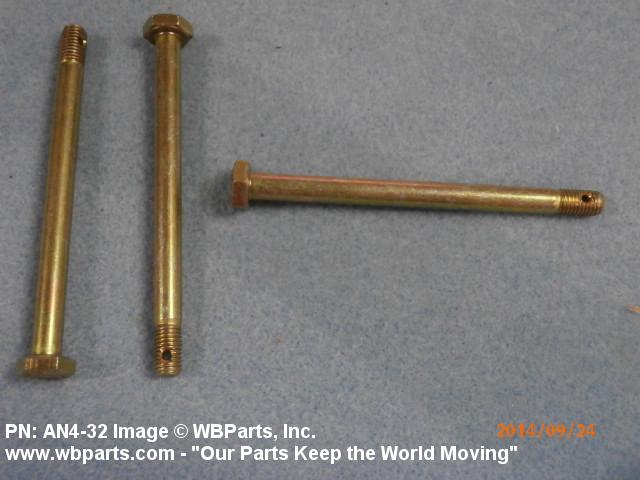

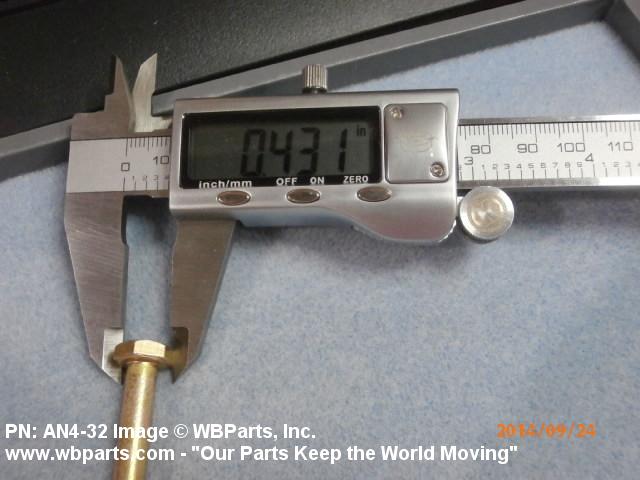

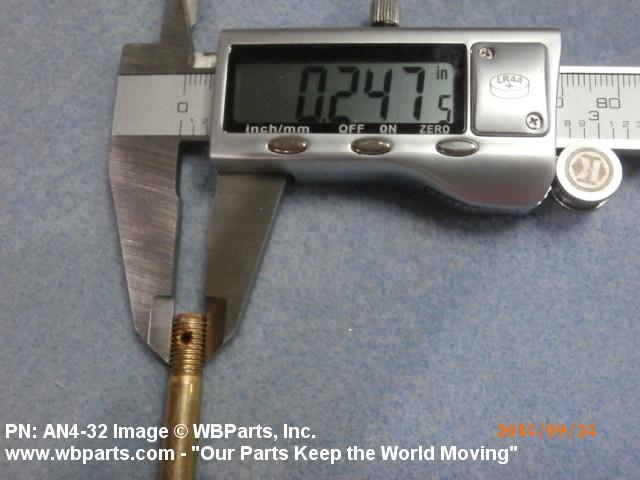

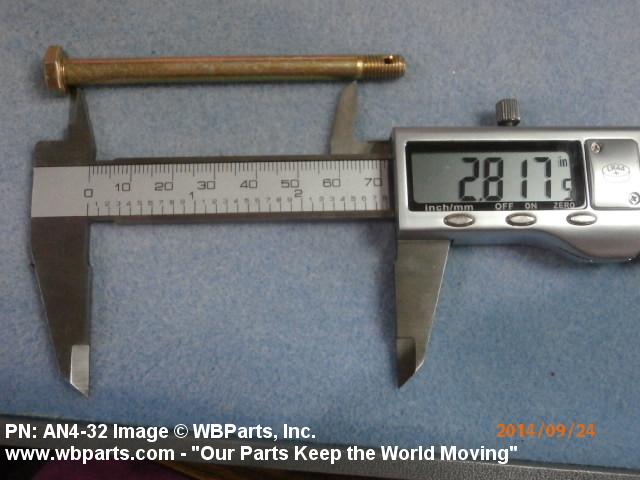

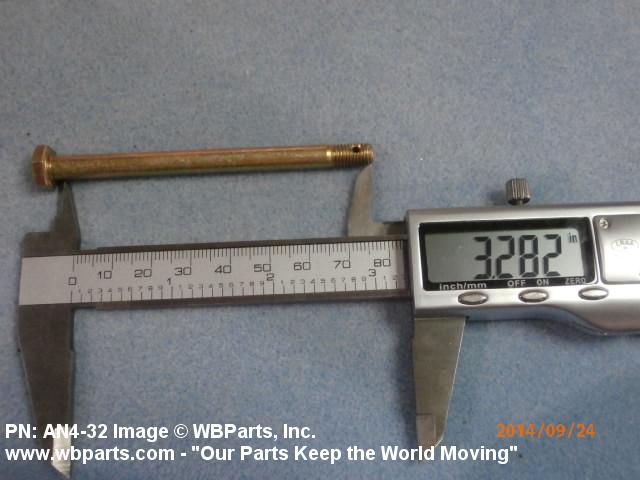

Drawings & Photos | NSN 5940-00-231-1603
Demand History | NSN 5940-00-231-1603
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN432 | 2017-05-129 | 16 | US |
| AN432 | 2015-04-100 | 7 | us |
| AN4-32 | 2014-05-142 | 1000 | United States |
| 33115 | 2012-05-146 | 400 | US |
| 33115 | 2009-02-55 | 128 | US |
Cross Reference | NSN 5940-00-231-1603
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23114-99-0742 | D1785 | HENSCHEL WEHRTECHNIK GMBH |
| 23114-99-0742 | D1839 | BUNDESAMT FUER AUSRUESTUNG, |
| 23114-99-0742 | D9448 | RHEINMETALL LANDSYSTEME GMBH DBA RHEINMETALL LAND- UN |
| 33115 | 00779 | TYCO ELECTRONICS CORPORATION |
| AN4-32 | 74829 | ILSCO CORP |
| AN659-32 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| AN659-32 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| BLM4S26 | 74159 | PENN-UNION CORP DIV PENN-UNION CORP |
| F366-56 | 98410 | MOLEX-ETC INC SUB OF MOLEX INC |
| F72SB | 56501 | THOMAS & BETTS CORPORATION |
| G221362-12 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| G221362-12 | 09922 | SOURIAU USA, INC. |
| MS20659-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S4-32 | 77860 | SHERMAN H B MFG CO DIV OF DAYTON-WALTHER CORP |
| YAV4CL4 | 09922 | SOURIAU USA, INC. |
| YAV4CL4 | 1NJK8 | BURNDY LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-231-1603
Technical Data | NSN 5940-00-231-1603
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A24 CRIMP |
| OVERALL LENGTH | 1.500 INCHES |
| OVERALL WIDTH | 0.687 INCHES |
| MATERIAL THICKNESS | 0.106 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL SINGLE END |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 4 AWG |
| MOUNTING METHOD STYLE | D18 TAPERED |
| MOUNTING HOLE DIAMETER | 0.343 INCHES |
| MOUNTING TONGUE WIDTH | 0.687 INCHES |
| MOUNTING FACILITY THICKNESS | 0.106 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OR COPPER OR COPPER ALLOY OR COPPER ALLOY OVERALL EXCEPT INSULATION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-502 CLASS A FED SPEC 1ST MATERIAL RESPONSE OR WW-T-799 FED SPEC 2ND MATERIAL RESPONSE OVERALL EXCEPT INSULATION |
| SURFACE TREATMENT | TIN CONDUCTOR ACCOMMODATION SINGLE LAYER TIN MOUNTING FACILITY SINGLE LAYER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20659-32 |
Restrictions/Controls & Freight Information | NSN 5940-00-231-1603
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-231-1603
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
