NSN 5940-00-195-4495 1238, 13009, 130095
Product Details | QUICK DISCONNECT TERMINAL SET
5940-00-195-4495 A group of items which, when combined, conform with the definition of TERMINAL, LUG or TERMINAL, STUD. It also provides the additional feature of allowing the conductor accommodation facility(ies) of the lug or stud to be simply and rapidly separated from the mounted (fixed) position of the lug or stud without the use of tools. See also TERMINAL, LUG and TERMINAL, STUD.
Part Alternates: 1238, 13009, 130095, 13009-5, 1600021020, 160-0021-020, 5940-00-195-4495, 00-195-4495, 5940001954495, 001954495
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1970 | 00-195-4495 | 61181 ( TERMINAL SET, QUICK DISCONNECT ) |
Drawings & Photos | NSN 5940-00-195-4495
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5940-00-195-4495
Related Products | NSN 5940-00-195-4495
Technical Data | NSN 5940-00-195-4495
| Characteristic | Specifications |
|---|---|

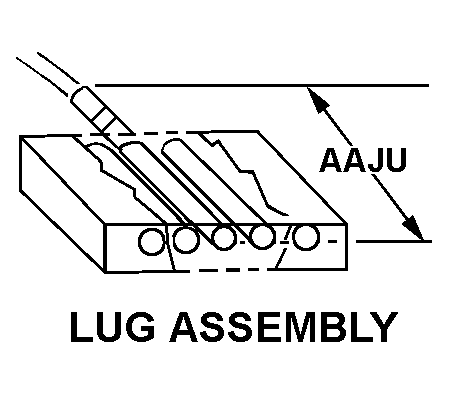

| BASIC SHAPE STYLE | A54 LUG ASSEMBLY |
| OVERALL LENGTH | 0.656 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | RECESSED BARREL SINGLE END |
| MOUNTING METHOD STYLE | D12 STRAIGHT TWO HOLE |
| MOUNTING HOLE DIAMETER | 0.067 INCHES |
| MOUNTING TONGUE WIDTH | 0.329 INCHES |
| MOUNTING FACILITY THICKNESS | 0.006 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.220 INCHES |
| DISTANCE FROM MOUNTING HOLE CENTER TO MOUNTING END | 0.125 INCHES |
| QUICK DISCONNECT STYLE | G14 TAPER PLUG |
| MAJOR PLUG DIAMETER | 0.060 INCHES |
| MINOR PLUG DIAMETER | 0.047 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | TIN CONDUCTOR ACCOMMODATION SINGLE LAYER TIN MOUNTING FACILITY SINGLE LAYER |
Restrictions/Controls & Freight Information | NSN 5940-00-195-4495
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZX | NAMSA (LI Division) ZZ 1 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
