NSN 5940-00-194-7394 H59401947394, 7394 THIMBLE, 7394THIMBLE
Product Details | ELECTRICAL CONDUCTOR FERRULE
5940-00-194-7394 An item of one piece construction designed to be permanently fastened to the end of an electrical wire or cable in order to facilitate the insertion of the conductor into devices such as clamps, splices, and terminals. It may also be used to water seal insulated wires. Excludes items designed to mate with a specific connector or jack. See also PLUG, TIP; and JACK TIP. Excludes FERRULE, METALLIC SHIELDED CABLE, GROUNDING. For items with other than cylindrical mating end, see TERMINAL, QUICK DISCONNECT.
Part Alternates: H59401947394, 7394 THIMBLE, 7394THIMBLE, 9S5309L, 5940-00-194-7394, 00-194-7394, 5940001947394, 001947394
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-194-7394 | 04963 ( FERRULE, ELECTRICAL CONDUCTOR ) |

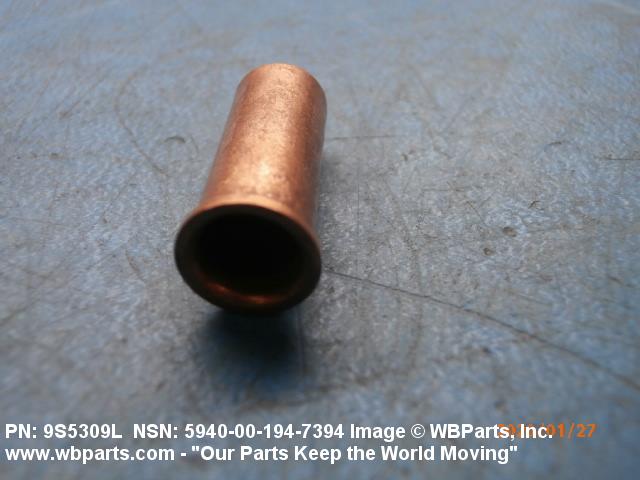

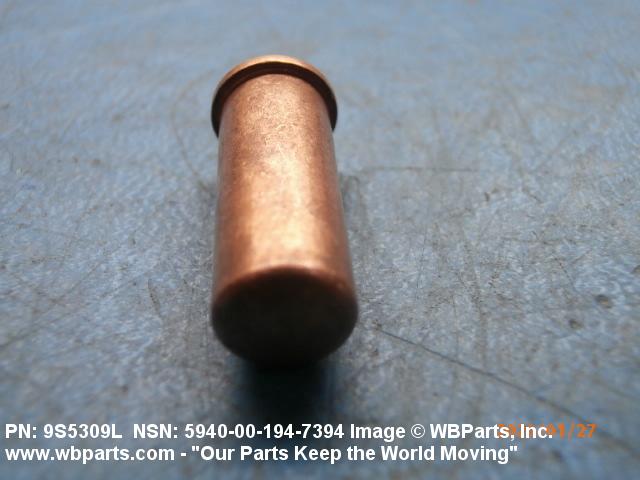

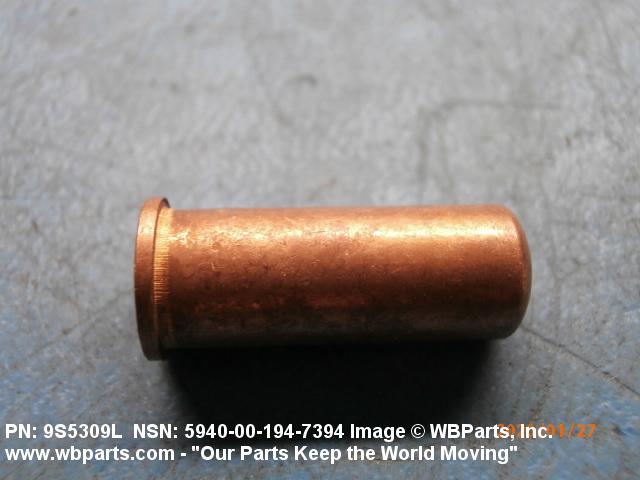

Drawings & Photos | NSN 5940-00-194-7394
Demand History | NSN 5940-00-194-7394
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-194-7394 | 2024-10-291 | 100 | US |
| 5940-00-194-7394 | 2023-05-123 | 9 | AU |
| 5940-00-194-7394 | 2020-07-208 | 400 | United States |
| 5940-00-194-7394 | 2019-12-339 | 750 | United States |
| 5940-00-194-7394 | 2014-04-97 | 100 | US |
| 5940-00-194-7394 | 2013-09-259 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-194-7394
Technical Data | NSN 5940-00-194-7394
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |

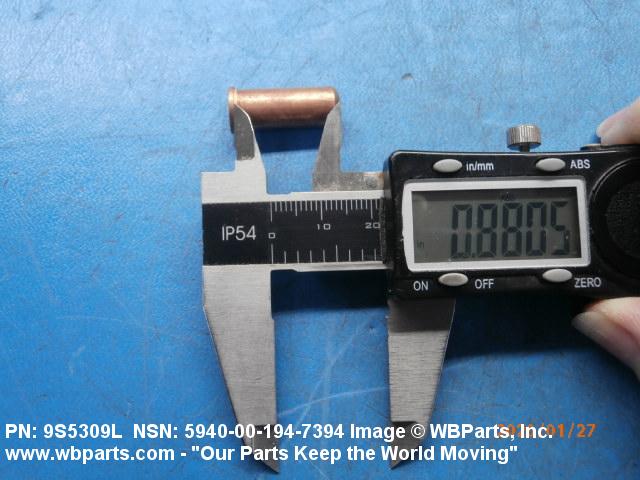

| LENGTH | 0.875 INCHES NOMINAL |

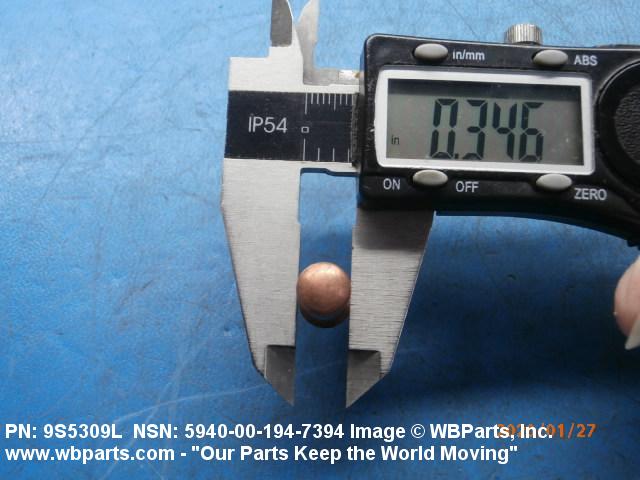

| OUTSIDE DIAMETER | 0.343 INCHES NOMINAL |

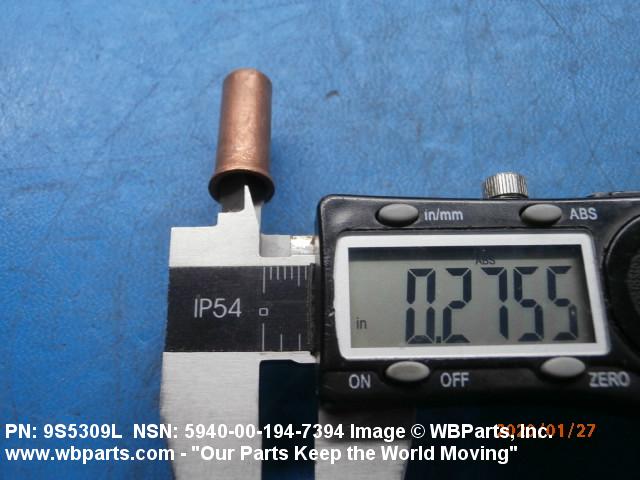

| INSIDE DIAMETER | 0.279 INCHES NOMINAL |
| WIRE SIZE FOR WHICH DESIGNED | 3 AWG |
| SOLDER TYPE CONNECTION | NOT PROVIDED |
| WATER SEAL | PROVIDED |
| END TYPE | CLOSED |
| UNIT PACKAGE QUANTITY | 100 |
| UNIT PACKAGE TYPE | BOX |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9S5309L |
Restrictions/Controls & Freight Information | NSN 5940-00-194-7394
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030480 | BBC FERRULES |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-194-7394
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
