NSN 5940-00-178-0397 M2438/2-03, M24381/2-03, M243811203
Product Details | TERMINAL BOARD
5940-00-178-0397 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Part Alternates: M2438/2-03, M24381/2-03, M243811203, M2438112-03, M24381203, M24381-2-03, M2438203, SYM 1034, SYM.1034, SYM1034, SYMBOL 1034, SYMBOL1034, MIL-24381/2, MIL243812, MIL-T-24381/2, MILT243812, 1034, 328-02-1034, 9S5302LSYM1034, 9S5302LTYPEC33C, 5940-00-178-0397, 00-178-0397, 5940001780397, 001780397, 328021034
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-178-0397 | 00404 ( TERMINAL BOARD ) |

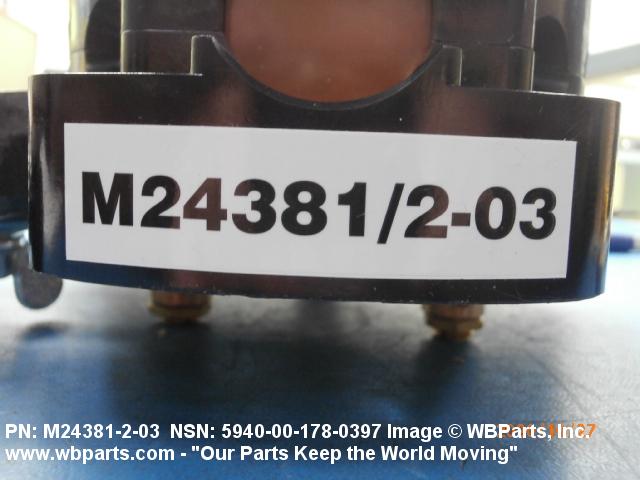

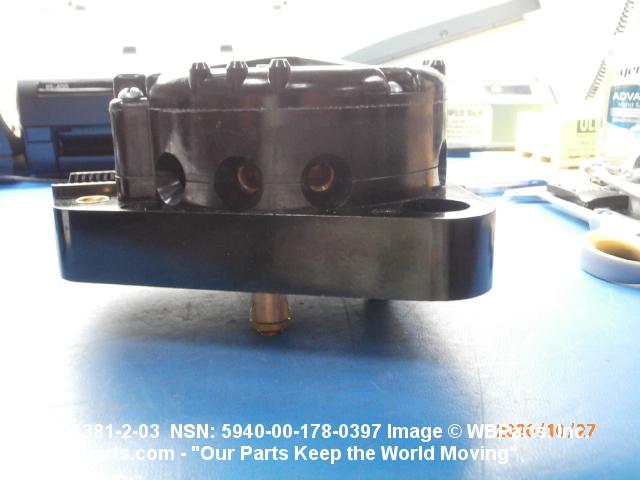

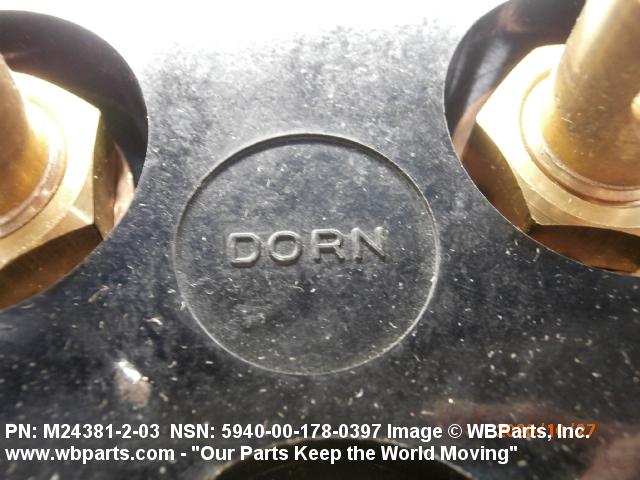

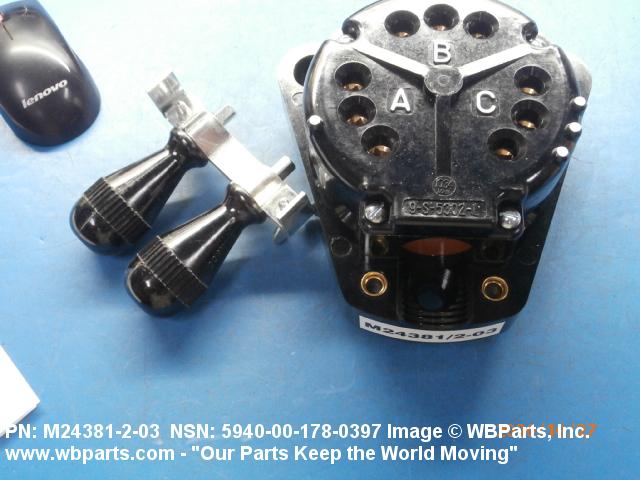

Drawings & Photos | NSN 5940-00-178-0397
Demand History | NSN 5940-00-178-0397
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5940-00-178-0397 | 2024-10-298 | 4 | DIBBS |
| 5940-00-178-0397 | 2022-03-75 | 3 | DIBBS |
| M24381203 | 2020-10-282 | 2 | United States |
| M24381203 | 2020-07-211 | 2 | United States |
| 5940-00-178-0397 | 2019-10-298 | 4 | United States |
| MILT243812 | 2019-10-295 | 2 | AU |
| MILT243812 | 2019-10-280 | 1 | AU |
| 1034 | 2018-09-260 | 2 | Nigeria |
| 1034 | 2018-03-73 | 4 | United States |
| 1034 | 2017-01-10 | 10 | US |
| 5940-00-178-0397 | 2016-02-40 | 25 | DIBBS |
| 5940-00-178-0397 | 2013-09-245 | 19 | DIBBS |
| 5940-00-178-0397 | 2013-05-121 | 15 | DIBBS |
| 5940-00-178-0397 | 2012-03-75 | 29 | DIBBS |
| 1034 | 2011-05-132 | 9 | |
| 1034 | 2011-04-107 | 9 | |
| 5940-00-178-0397 | 2010-04-113 | 7 | DIBBS |
| 5940-00-178-0397 | 2009-12-335 | 32 | DIBBS |
| 5940-00-178-0397 | 2008-10-288 | 21 | DIBBS |
| 5940-00-178-0397 | 2008-09-252 | 17 | DIBBS |
Cross Reference | NSN 5940-00-178-0397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1034 | 73152 | HENSCHEL C B MFG CO |
| 328-02-1034 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| 9S5302LSYM1034 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S5302LSYM1034 | 99820 | DORN EQUIPMENT CORP |
| 9S5302LTYPEC33C | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M2438/2-03 | 99820 | DORN EQUIPMENT CORP |
| M24381-2-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24381/2-03 | 99820 | DORN EQUIPMENT CORP |
| M2438112-03 | 99820 | DORN EQUIPMENT CORP |
| MIL-24381/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-T-24381/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM 1034 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM.1034 | 99820 | DORN EQUIPMENT CORP |
| SYMBOL 1034 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| SYMBOL 1034 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5940-00-178-0397
Technical Data | NSN 5940-00-178-0397
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC BOARD |
| BODY STYLE | A9 STRIP TYPE |
| BOARD OVERALL LENGTH | 6.750 INCHES |
| BOARD OVERALL WIDTH | 6.469 INCHES |
| BOARD THICKNESS | 0.125 INCHES |
| TERMINAL PATTERN ARRANGEMENT | RANDOM |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |

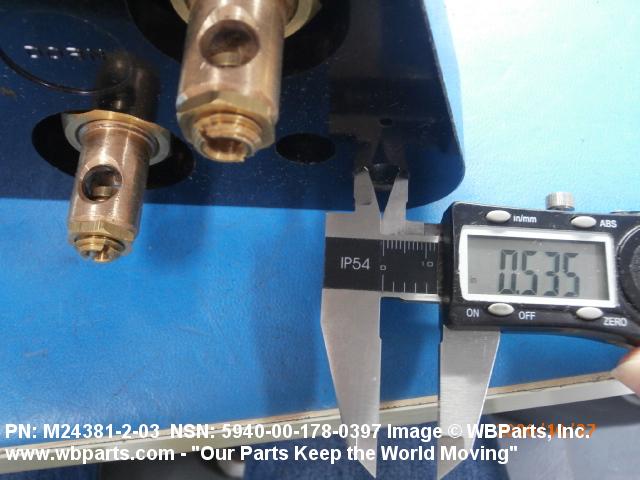

| MOUNTING HOLE DIAMETER | 0.531 INCHES |

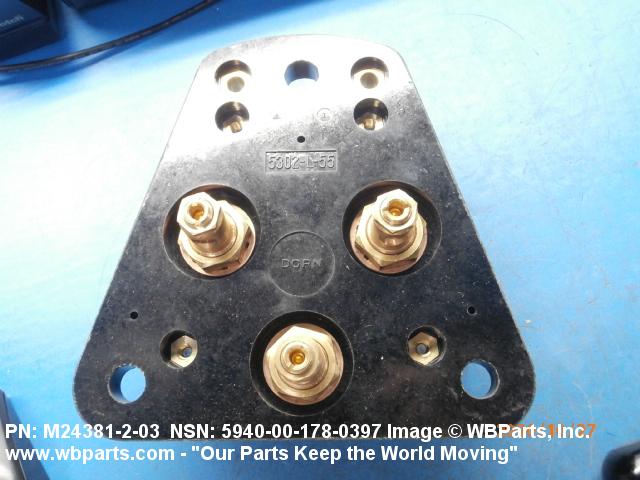

| SPECIAL FEATURES | BARRIER W/QUADRUPLE FEEDTHRU COMPRESSION SCREW TERMINALS AND MTG HOLES ON ISOSCELES TRIANGLE W/5.125 INBASE AND 4.875 IN ALTITUDE |

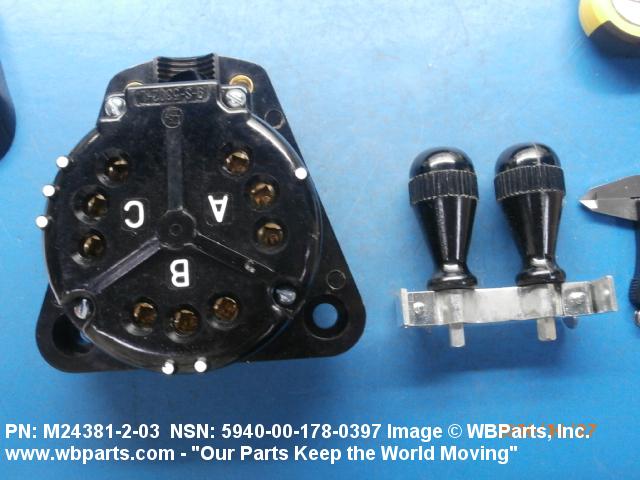

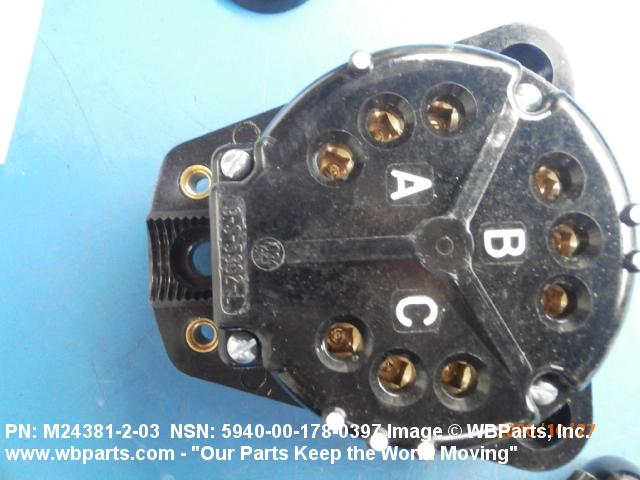

| SPECIAL MARKINGS | MARKED A,B AND C |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-24381/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24381-2-03 |
Restrictions/Controls & Freight Information | NSN 5940-00-178-0397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5940-00-178-0397
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
